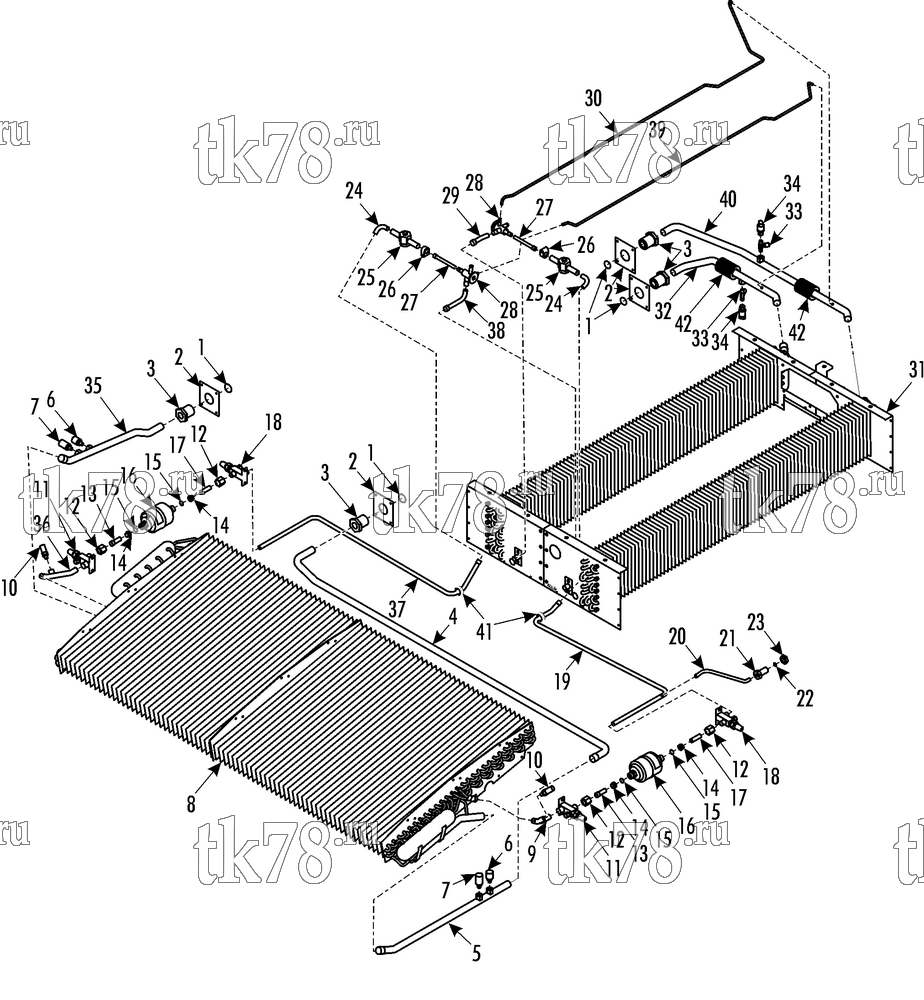

Установкa Thermo King CITI-RT Split схема REFRIGERATION COMPONENTS (right side connection) – 205A3
Обновление от: 10/9/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3165 | O-RING | 4 | |
| 2 | 92-3095 | HOLDER - fitting | 4 | |
| 3 | 66-6840 | ADAPTER - bulkhead | 4 | |
| 4 | 61-4117 | TUBE - adapter to condenser | 1 | |
| 5 | 61-4118 | TUBE - to condenser | 1 | |
| 66-4553 | SADDLE - fitting | 2 | ||
| 6 | 41-1502 | SWITCH - hpco | 2 | |
| 7 | 41-5220 | SWITCH - hpco | 2 | |
| 8 | 67-1901 | COIL - condenser | 1 | |
| 9 | 61-2324 | TUBE - condenser to valve | 1 | |
| 99-3060 | SADDLE - fitting | 1 | ||
| 10 | 66-7392 | VALVE - relief | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 4 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 11 | 66-2104 | VALVE - line shut off | 2 | |
| 66-4420 | CAP - valve | 2 | ||
| 55-7036 | SCREW - valve | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 12 | 55-6838 | NUT - shoulder | 4 | |
| 13 | 61-2325 | TUBE - valve to filter/dehydrator | 2 | |
| 14 | 55-6837 | SHOULDER | 4 | |
| 15 | 33-566 | O-RING | 4 | |
| 16 | 66-8344 | FILTER/DEHYDRATOR | 2 | |
| 17 | 61-2326 | TUBE - filter/dehydrator to valve | 2 | |
| 18 | 66-4694 | VALVE - line shut off | 2 | |
| 66-4420 | CAP - valve | 2 | ||
| 55-7036 | SCREW - valve | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 19 | 61-2327 | TUBE - valve to evaporator | 1 | |
| 20 | 61-2328 | TUBE - to adapter | 1 | |
| 61-4119 | TUBE - to adapter (narrow units) | 1 | ||
| 21 | 66-6036 | ADAPTER | 1 | |
| 22 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 23 | 55-6780 | NUT - to adapter | 1 | |
| 24 | 61-2329 | ELBOW - to indicator | 2 | |
| 25 | 66-1188 | INDICATOR - liquid | 2 | |
| 26 | 91-758 | CLAMP - indicator | 2 | |
| 55-9454 | SCREW - clamp | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 27 | 61-2330 | TUBE - to expansion valve | 2 | |
| 28 | 61-1061 | VALVE - expansion | 2 | |
| 29 | 61-2331 | TUBE - to distributor | 1 | |
| 30 | 61-4120 | TUBE - equalizer | 1 | |
| 31 | 67-2328 | COIL - evaporator (1000) | 1 | |
| 32 | 61-4121 | TUBE - evaporator to adapter | 1 | |
| 66-4553 | SADDLE - fitting | 1 | ||
| 33 | 66-5859 | VALVE | 2 | |
| 34 | 41-6064 | SWITCH - lpco | 2 | |
| 35 | 61-2334 | TUBE - adapter to condenser | 1 | |
| 66-4553 | SADDLE - fitting | 2 | ||
| 36 | 61-2335 | TUBE - condenser to valve | 1 | |
| 99-3060 | SADDLE - fitting | 1 | ||
| 37 | 61-2336 | TUBE - valve to evaporator | 1 | |
| 38 | 61-2337 | TUBE - to distributor | 1 | |
| 39 | 61-4123 | TUBE - equalizer | 1 | |
| 40 | 61-4124 | TUBE - evaporator to adapter | 1 | |
| 66-4553 | SADDLE - fitting | 1 | ||
| 41 | 33-367 | GROMMET (0.625 id) | 2 | |
| 42 | 92-2015 | RUBBER - tube | A/R |
