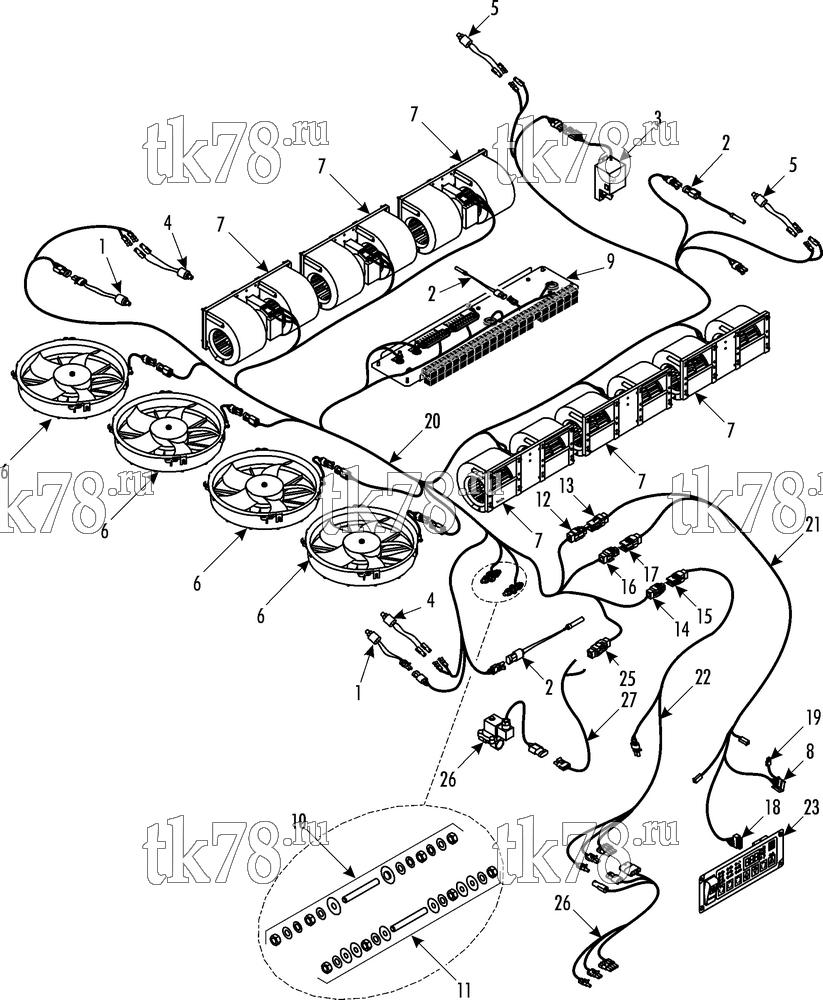

Установкa Thermo King CITI-RT Split схема ELECTRICAL COMPONENTS (IntelligAIRE) – 186H8
Обновление от: 10/31/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5220 | SWITCH (CPS) | 2 | |
| 2 | 41-7706 | SENSOR - temperature | 3 | |
| 3 | 41-2420 | MOTOR - geared | 1 | |
| 4 | 41-1502 | SWITCH - hpco | 2 | |
| 5 | 41-6064 | SWITCH - lpco | 2 | |
| 6 | 78-1344 | FAN - condenser (for connectors see 115D14) | 4 | |
| 7 | 78-1297 | BLOWER | 6 | |
| 55-7664 | SCREW - blower | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7368 | FLATWASHER | 24 | ||
| 8 | 41-1508 | SWITCH - special | 1 | |
| 44-5066 | TERMINAL - fingrip (14-18 ga) | A/R | ||
| 55-7702 | TERMINAL - fingrip (16-18 ga) | A/R | ||
| 41-5713 | PIN (12-16 gauge) | A/R | ||
| 9 | NSS | PANEL - electrical (see 186H9) | 1 | |
| 10 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 55-448 | FLATWASHER | 2 | ||
| 11 | 55-9191 | STUD - negative | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 12 | 41-3882 | CONNECTOR - plug (6 socket) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 44-8539 | SOCKET - receptacle | A/R | ||
| 13 | 304-2657 | CONNECTOR (6-pin, female) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 44-9928 | PIN (14-18 gauge) | A/R | ||
| 41-182 | PIN (18 gauge) | 1 | ||
| 14 | 41-2493 | CONNECTOR (9-pin, male) | 1 | |
| 41-1950 | CONNECTOR - strain relief | 1 | ||
| 41-4350 | PIN (14-16 gauge) | A/R | ||
| 15 | 304-2687 | CONNECTOR (9-pin, female) | 1 | |
| 41-1950 | CONNECTOR - strain relief | 1 | ||
| 44-9928 | PIN (14-18 gauge) | A/R | ||
| 41-182 | PIN (18 gauge) | A/R | ||
| 16 | 41-2493 | CONNECTOR (12-pin, male) | 1 | |
| 41-1952 | CONNECTOR - strain relief | 1 | ||
| 41-4350 | PIN (14-16 gauge) | A/R | ||
| 17 | 304-2652 | CONNECTOR (12-pin, female) | 1 | |
| 41-1952 | CONNECTOR - strain relief | 1 | ||
| 44-9928 | PIN (14-18 gauge) | A/R | ||
| 41-182 | PIN (18 gauge) | A/R | ||
| 18 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 41-1807 | TERMINAL (18-24 ga) | A/R | ||
| 19 | 41-1507 | CONNECTOR (2 terminal) | 1 | |
| 41-1807 | TERMINAL (18-24 ga) | A/R | ||
| 20 | 41-5714 | HARNESS (for connector see 115D14) | 1 | |
| 41-656 | CONNECTOR (24 terminal) | 1 | ||
| 41-650 | CONNECTOR (14 terminal) | 1 | ||
| 41-661 | CONNECTOR (8 terminal) | 1 | ||
| 41-654 | CONNECTOR (4 terminal) | 1 | ||
| 41-1807 | TERMINAL (18-24 ga) | A/R | ||
| 21 | 41-3705 | HARNESS - unit to driver panel (18.3 m) | 1 | |
| 22 | 41-4605 | HARNESS - to compressor (w/ alternator excitation, for connector see 115D14) | 1 | |
| 41-7253 | HARNESS - to compressor (w/o alternator excitation, for connector see 115D14) | 1 | ||
| 23 | 45-1773 | PANEL - driver display (see 152B12) | 1 | |
| 24 | 41-2634 | HARNESS - extension (for connectors see 115D14) | 1 | |
| 25 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 41-4949 | CONNECTOR (4-pin, male) | 1 | ||
| 41-2785 | PIN - male | A/R | ||
| 26 | 41-4151 | VALVE - solenoid (water, 1004 only, for connector see 115D14) | 1 | |
| 27 | 41-5389 | HARNESS - water valve (1004 only, 20 m, see 184G1) | 1 | |
| 41-5390 | HARNESS - water valve (1004 only, 10 m, see 184G1) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | A/R | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | A/R |
