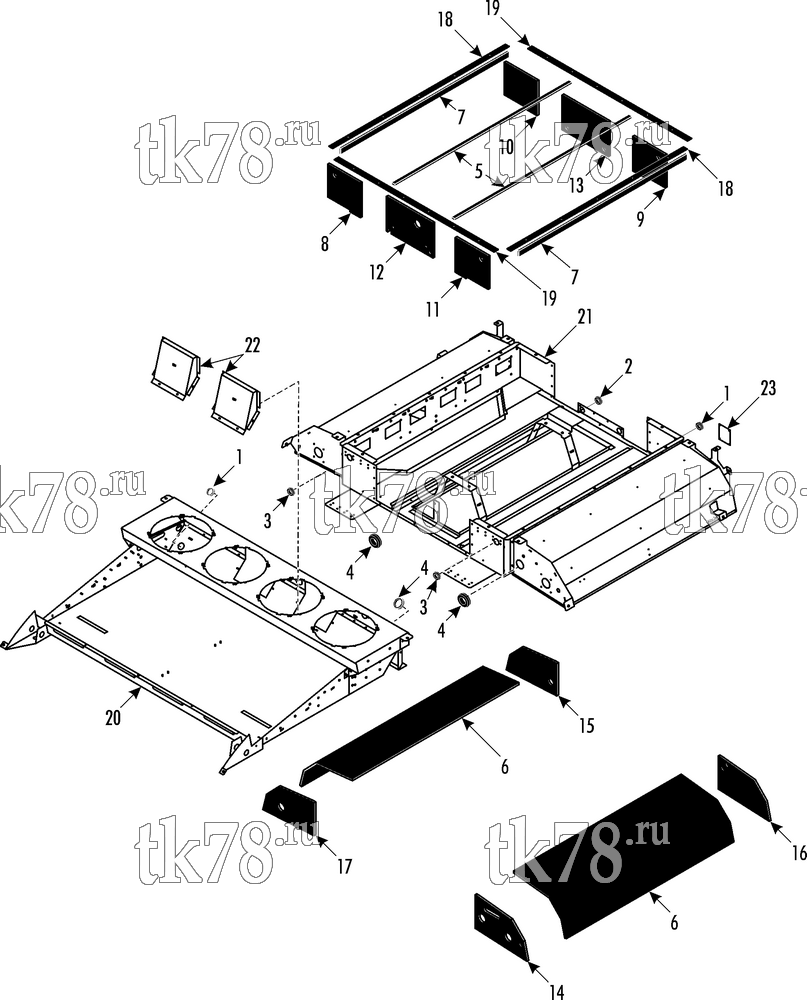

Установкa Thermo King CITI-RT Split схема FRAME & INSULATIONS – 186H4
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-1084 | GROMMET (1.00 id) | 2 | |
| 2 | 33-1283 | GROMMET (0.938 id) | 1 | |
| 3 | 33-629 | GROMMET (1.00 id) | 2 | |
| 4 | 33-1371 | GROMMET (1.703 id) | 3 | |
| 5 | 99-2996 | STRIP - neoprene | A/R | |
| 6 | 92-429 | INSULATION - evaporator | 2 | |
| 7 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 8 | 92-434 | INSULATION - front (right) | 1 | |
| 9 | 92-435 | INSULATION - rear (left) | 1 | |
| 10 | 92-436 | INSULATION - rear (right) | 1 | |
| 11 | 92-437 | INSULATION - front (left) | 1 | |
| 12 | 92-3333 | INSULATION - front | 1 | |
| 13 | 92-3334 | INSULATION - back | 1 | |
| 14 | 92-3335 | INSULATION (for standard refrigeration connection) | 1 | |
| 92-6458 | INSULATION (for right side refrigeration connection) | 1 | ||
| 15 | 92-3336 | INSULATION (for standard refrigeration connection) | 1 | |
| 92-6459 | INSULATION (for right side refrigeration connection) | 1 | ||
| 16 | 92-6460 | INSULATION | 1 | |
| 17 | 92-3338 | INSULATION (for standard refrigeration connection) | 1 | |
| 92-6461 | INSULATION (for right side refrigeration connection) | 1 | ||
| 18 | 33-3682 | INSULATION | 2 | |
| 19 | 33-3683 | INSULATION | 2 | |
| 20 | 98-6740 | FRAME - condenser | 1 | |
| 98-6741 | FRAME - condenser (short version) | 1 | ||
| 21 | 98-6742 | FRAME - evaporator (for standard refrigeration connection) | 1 | |
| 98-7898 | FRAME - evaporator (for right side refrigeration connection) | 1 | ||
| 55-7866 | NUT - captive (M4) | A/R | ||
| 55-7373 | NUT - captive (M6) | A/R | ||
| 55-8375 | NUT - captive (M5) | A/R | ||
| 22 | 92-6462 | COVER - hairpins | 2 | |
| 55-5130 | RIVET | A/R | ||
| 23 | 92-444 | HOLDER - fitting (for 919360) | 1 |
