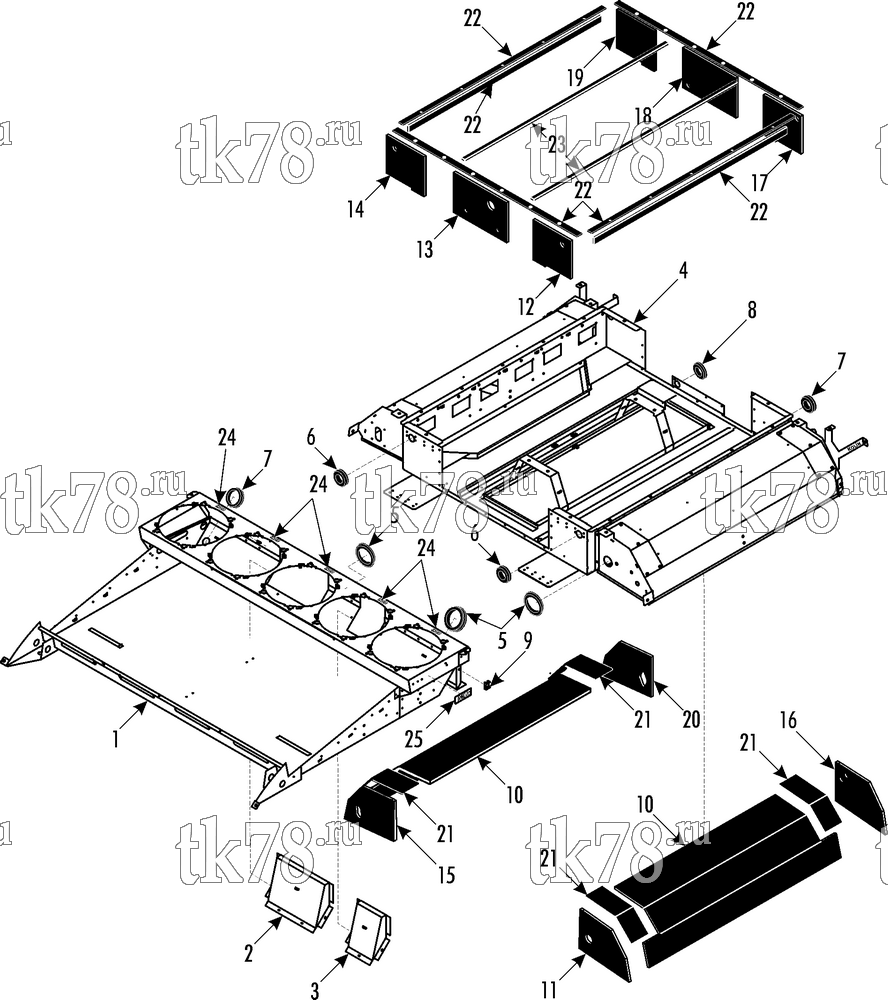

Установкa Thermo King CITI-RT N R407c схема FRAME & INSULATION (R407C) - NARROW VERSION (R 7.5 M) – 215C8
Обновление от: 11/27/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7540 | FRAME - condenser | 1 | |
| 55-8375 | NUT - captive (M5) | 4 | ||
| 55-9443 | NUT - captive (M6) | 20 | ||
| 2 | 92-441 | COVER - hairpins | 1 | |
| 3 | 92-442 | COVER - hairpins | 1 | |
| 55-5130 | RIVET - covers | A/R | ||
| 4 | 98-7541 | FRAME - evaporator | 1 | |
| 55-7866 | NUT - captive (M4, hex) | A/R | ||
| 55-7373 | NUT - captive (M6, hex) | A/R | ||
| 55-5130 | RIVET - blind | A/R | ||
| 5 | 33-1371 | GROMMET (1.703 id) | 3 | |
| 6 | 33-629 | GROMMET (1.00 id) | 2 | |
| 7 | 33-1084 | GROMMET (1.00 id) | 2 | |
| 8 | 33-1283 | GROMMET (0.938 id) | 1 | |
| 9 | 99-6093 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 10 | 92-5792 | INSULATION | 2 | |
| 11 | 92-5793 | INSULATION | 1 | |
| 12 | 92-437 | INSULATION | 1 | |
| 13 | 92-438 | INSULATION | 1 | |
| 14 | 92-434 | INSULATION | 1 | |
| 15 | 92-5794 | INSULATION | 1 | |
| 16 | 92-5795 | INSULATION | 1 | |
| 17 | 92-435 | INSULATION | 1 | |
| 18 | 92-439 | INSULATION | 1 | |
| 19 | 92-436 | INSULATION | 1 | |
| 20 | 92-5796 | INSULATION | 1 | |
| 21 | 92-5797 | INSULATION | 4 | |
| 22 | 99-6968 | STRIP - neoprene | A/R | |
| 23 | 99-2996 | STRIP - neoprene | A/R | |
| 24 | 99-4931 | NAMEPLATE - arrow | 5 | |
| 25 | 91-7846 | NAMEPLATE - R407C | 1 |
