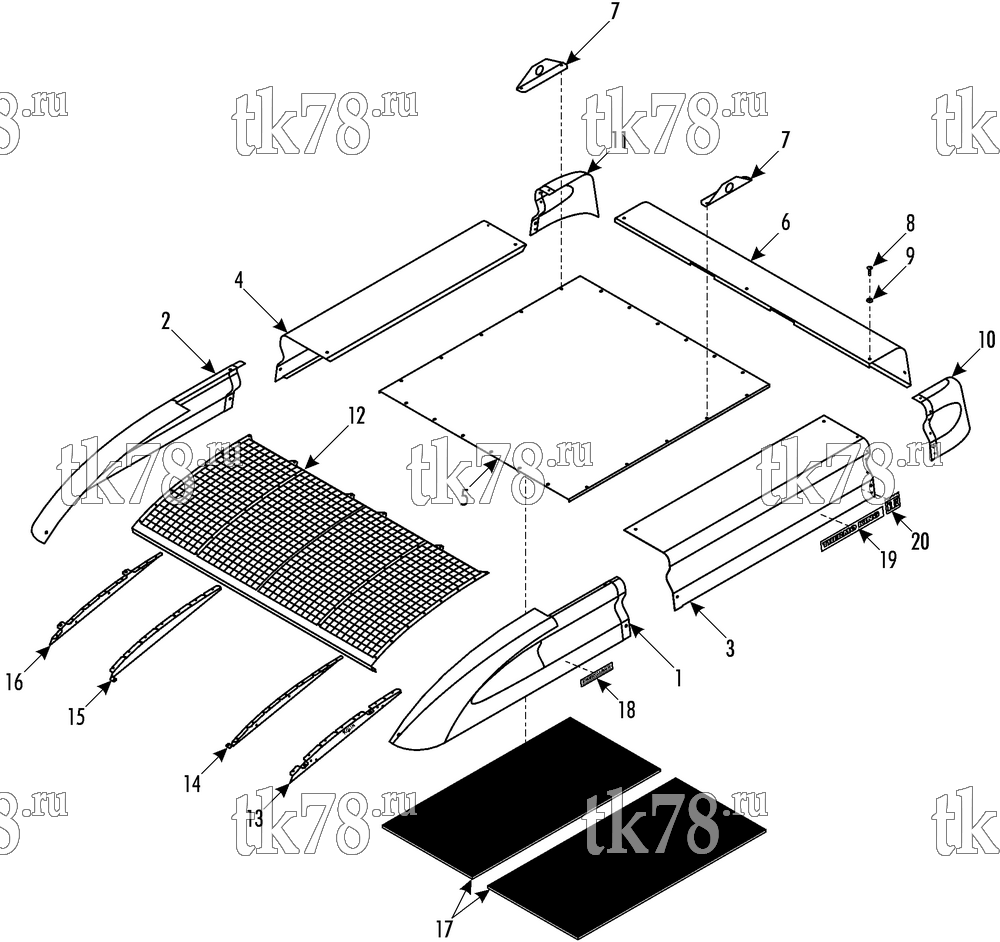

Установкa Thermo King CITI-RT N R407c схема STRUCTURAL COVERS - NARROW VERSION (R 7.5 M) – 215C6
Обновление от: 6/21/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7535 | SPOILER - left front | 1 | |
| 2 | 98-7536 | SPOILER - right front | 1 | |
| 3 | 98-7537 | SPOILER - left side | 1 | |
| 4 | 98-7538 | SPOILER - right side | 1 | |
| 5 | 98-5788 | COVER - evaporator | 1 | |
| 6 | 98-7539 | COVER - rear | 1 | |
| 7 | 92-452 | BRACKET - lifting | 2 | |
| 8 | 55-8837 | SCREW - becher | A/R | |
| 9 | 51-871 | WASHER - sealing | A/R | |
| 10 | 92-5790 | SPOILER - left rear | 1 | |
| 11 | 92-5791 | SPOILER - right rear | 1 | |
| 55-5130 | RIVET - spoilers | 10 | ||
| 12 | 98-6523 | COVER - condenser | 1 | |
| 13 | 92-2681 | STIFFENER - grille (left) | 1 | |
| 14 | 92-2680 | STIFFENER - grille | 1 | |
| 15 | 92-2682 | STIFFENER - grille | 1 | |
| 16 | 92-2679 | STIFFENER - grille (right) | 1 | |
| 55-2260 | RIVET - cover & stiffeners | A/R | ||
| 17 | 92-451 | INSULATION - cover | 2 | |
| 18 | 91-8746 | NAMEPLATE - Ingersoll Rand | 2 | |
| 19 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 20 | 91-6232 | NAMEPLATE - TK logo | 2 |
