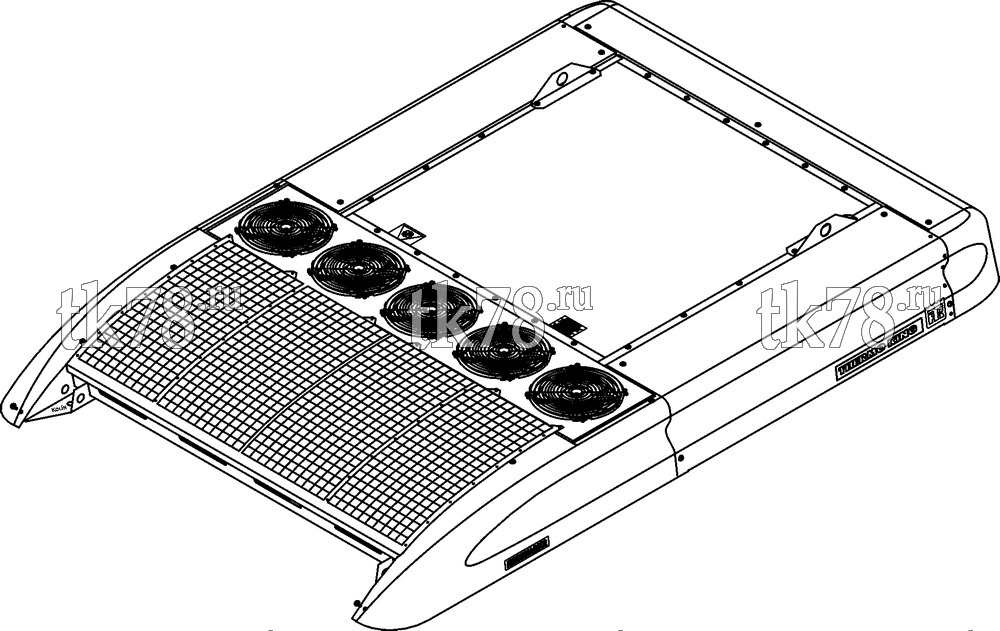

Установкa Thermo King CITI-RT N R407c схема CITI-RT N R407c REFERENCE SHEET – 11U15
Обновление от: 10/10/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 918678 | System - Citi RT N 1000 R407c R 10 18 m | 6/06 | ||
| 918679 | System - Citi RT N 1004 R407c R 10 18 m | 6/06 | ||
| 919967 | System - Citi RT N 1000 R407c R 7.5 m | 6/06 | ||
| 919968 | System - Citi RT N 1004 R407c R 7.5 m | 6/06 | ||
| 099427 | CITI RT-N 1000 R407c | 10/09 | ||
| 099606 | ClimaAIRE I Control System (for unit 1000, 1004 - R407c) | 6/06 | ||
| 719360 | ClimaAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 6/06 | ||
| 718660 | Kit - Harness, 8.6 m to Compressor | 6/06 | ||
| 718884 | Kit - Harness, 10 m to Compressor | 6/06 | ||
| 718460 | Kit - Harness, 14 m to Compressor | 6/06 | ||
| 700521 | Harness (Unit to Compressor - 8.6 m length) | 6/06 | ||
| 700522 | Harness (Unit to Compressor - 10 m length) | 6/06 | ||
| 700523 | Harness (Unit to Compressor - 14 m length) | 6/06 | ||
| 006547 | ClimaAIRE II Control System 1000, 1004 (R407c) - Control Panel, Brush Fans, Brush Blowers | 6/06 | ||
| 700640 | ClimaAIRE I w/Display with Harness - 18 m | 6/06 | ||
| 006812 | ClimaAIRE II Control System 1000, 1004 (R407c) - Control Panel, EBM Brushless Fans & Blowers | 6/06 | ||
| 719135 | ClimaAIRE II DP with Display w/Harness (Unit to Driver Panel - 18.3 m length) | 6/06 | ||
| 700565 | ClimaAIRE II DP with Display w/Harness (Unit to Driver Panel - 18 m length) | 6/06 | ||
| 700969 | ClimaAIRE II & Harness | 10/09 | ||
| 700446 | SmartAIRE W/ 18.3M Harness | 10/09 | ||
| 700459 | SmartAIRE W/ 12 M Harness | 10/09 | ||
| 700970 | Driver Panel Extension Harness | 10/09 | ||
| 719302 | Harness - ClimaAIRE (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 719343 | Harness - ClimaAIRE (Unit to Compressor - 10 m length) | 6/06 | ||
| 720028 | Harness - ClimaAIRE (Unit to Compressor - 14 m length) | 6/06 | ||
| 700504 | Harness - ClimaAIRE (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 700507 | Harness - ClimaAIRE (Unit to Compressor - 10 m length) | 6/06 | ||
| 700505 | Harness - ClimaAIRE (Unit to Compressor - 14 m length) | 6/06 | ||
| 700566 | Harness - ClimaAIRE (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 700567 | Harness - ClimaAIRE (Unit to Compressor - 10 m length) | 6/06 | ||
| 700461 | Harness - ClimaAIRE (Unit to Compressor - 14 m length) | 6/06 | ||
| 099913 | IntelligAIRE Control System (for unit 1000, 1004 - R407c) - RELIANCE Brushless Fans & Blowers | 6/06 | ||
| 719307 | IntelligAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 6/06 | ||
| 719318 | Harness (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 719317 | Harness (Unit to Compressor - 10 m length) | 6/06 | ||
| 719316 | Harness (Unit to Compressor - 14 m length) | 6/06 | ||
| 700526 | Harness (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 700527 | Harness (Unit to Compressor - 10 m length) | 6/06 | ||
| 700528 | Harness (Unit to Compressor - 14 m length) | 6/06 | ||
| 099607 | IntelligAIRE I Control System (for unit 1000, 1004 - R407c) | 6/06 | ||
| 099279 | Eprom w/o Diagnostic for IntelligAIRE I | 6/06 | ||
| 099280 | Eprom w/ Diagnostic for IntelligAIRE I | 6/06 | ||
| 719361 | IntelligAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 6/06 | ||
| 007075 | Fresh Air Damper (Electric) for Citi RT | 6/06 | ||
| 099308 | Fresh Air Damper (Electric) for Citi RT | 10/09 | ||
| 099309 | NO Fresh Air Damper | 6/06 | ||
| 006533 | Tube Heating System without Heat Valve - Citi, Coach RT | 6/06 | ||
| 818660 | Kit - Installation, Citi 1000/1004 (for unit with Compressor FK) | 10/09 | ||
| 880091 | Kit - Installation, 1000/1004 (for unit with TK X430 Compressor) | 10/09 | ||
| 800168 | Kit - Installation, Frigicoll | 10/09 | ||
| 800149 | Kit - Installation (for unit with Screw Compressor S391) | 10/09 | ||
| 880050 | Kit - Installation, Citi RT - add Strip 1091A38H36 | 10/09 | ||
| 818672 | Kit - Installation, Citi RT Cu Tube Install - FRGL | 10/09 | ||
| 700037 | Compressor X430-HPC R407c, Pulley | 10/09 | ||
| 700038 | Compressor X430-HPC R407c, Pulley | 10/09 | ||
| 700575 | Compressor S391-HPC, R407c, Pulley 2B/2A | 10/09 | ||
| 700835 | Compressor X430-HPC R407c, Pulley 9K/6K | 10/09 | ||
| 700837 | Compressor X430-HPC R407c, Pulley | 10/09 | ||
| 701011 | Compressor X430-HPC R407c, Pulley | 10/09 | ||
| 701012 | Compressor X430-HPC R407c, Pulley | 10/09 | ||
| 701015 | Compressor X430-HPC R407c, Pulley | 10/09 | ||
| 715246 | Compressor X430, R407c, 24V, Pulley 2B/2A, 7.75 in | 10/09 | ||
| 720429 | Compressor S391 R407C | 10/09 | ||
| 701016 | Compressor X430-HPC, R407c | 10/09 | ||
| 720591 | Compressor X430-HPC, R407c, 24V, Pulley 2B/2A, 8.03 in / 8.89 in | 10/09 | ||
| 700129 | Kit - Water Valve, 2-way Servomotor | 6/06 | ||
| 700130 | Kit - Water Valve, 3-way Servomotor | 6/06 | ||
| 718708 | Kit - Drive MAN A69/D2866 | 10/09 | ||
| 719277 | Kit - Drive Iveco CC 491/591.E | 10/09 | ||
| 719273 | Kit - Drive Volvo B12 B | 10/09 | ||
| 719964 | Kit - Drive Iveco 395 medio/E3/X430 | 10/09 | ||
| 719965 | Kit - Drive MAN A51/E3/X430 | 10/09 | ||
| 719993 | Kit - Drive Iveco 397 DCI 11/E3/X430/Spanish Version | 10/09 | ||
| 720009 | Kit - Drive Renault - Ares 15m/E3/X430 | 10/09 | ||
| 720024 | Kit - Drive Volvo B7R/E3/X430 | 10/09 | ||
| 720130 | Kit - Drive MAN A67 14.280 HOCL/E3/X430 | 10/09 | ||
| 720277 | Kit - Drive Iveco 397 SRI F2B/E3/X430/Italy | 10/09 | ||
| 720278 | Kit - Drive Iveco 397 SRI F2B/E3/X430/Spain | 10/09 | ||
| 720348 | Kit - Drive Iveco 397 DCI 11/E3/X430 | 10/09 | ||
| 720407 | Kit - Drive Volvo B12-B/E3/X430/ w/o Crankshaft Pulley | 10/09 | ||
| 720707 | Kit - Drive Iveco 395 medio/E3/X430/Italy | 10/09 | ||
| 700127 | Kit - Harness, Water Valve Servomotor - 10 m | 6/06 | ||
| 700128 | Kit - Harness, Water Valve Servomotor - 20 m | 6/06 | ||
| 718665 | Kit - Water Boost Pump, 27VDC, Hose Connections id 38 mm; 5000 L/Hr (w/o Harness) | 6/06 | ||
| 719006 | Harness (Unit to Water Boost Pump - 14 m length) | 6/06 | ||
| 719007 | Harness (Unit to Water Boost Pump - 9 m length) | 6/06 | ||
| 719008 | Harness (Unit to Water Boost Pump - 7.6 m length) | 6/06 | ||
| 714765 | Kit - Air Filter Grille | 6/06 | ||
| 700383 | Kit - Air Filter Grille | 10/09 | ||
| 700389 | Kit - Air Filter Grille | 10/09 | ||
| 718672 | Kit - Hose, Citi (SS #16, #20 - 0.8 m length & Flange Fitting (unit), ORS Fitting (Compr) | 6/06 | ||
| 700689 | Kit - Hose, Citi RT | 10/09 | ||
| 700736 | Kit - Hose, Citi RT | 10/09 | ||
| 719305 | Kit - Alternator, 150A, 24VDC, 24V Excitation, 3.25 in for ClimaAIRE | 6/06 | ||
| 719306 | Kit - Alternator, 125A, 24VDC, 12V Excitation, 3.25 in for ClimaAIRE | 6/06 | ||
| 709797 | Kit - Alternator, 150A, 24VDC, 24V Excitation, 3.25 in | 6/06 | ||
| 711180 | Kit - Alternator, 125A, 24VDC, 12V Excitation, 3.25 in | 6/06 | ||
| 715546 | Kit - Harness Extension (6.35 m to Compressor) | 6/06 | ||
| 700136 | Kit - ClimaAIRE II with 2 m Harness - STA | 6/06 | ||
| 700137 | Kit - Harness, Boost Pump - 16 m | 6/06 | ||
| 700138 | Kit - Battery Cables, 13 m, 2 pcs | 6/06 | ||
| 700606 | Kit - Battery Cables, 5 m, Red & Black | 10/09 | ||
| 099058 | KIT - 130 amp Fuse | 10/09 | ||
| 720171 | Kit - Muffler, without Hose | 6/06 | ||
| 099721 | Kit - Bottom Insulation - Citi RT, Coach RT | 6/06 | ||
| 700628 | KIT COMPR X430-HPC 24V LNG 2 | 1 |
