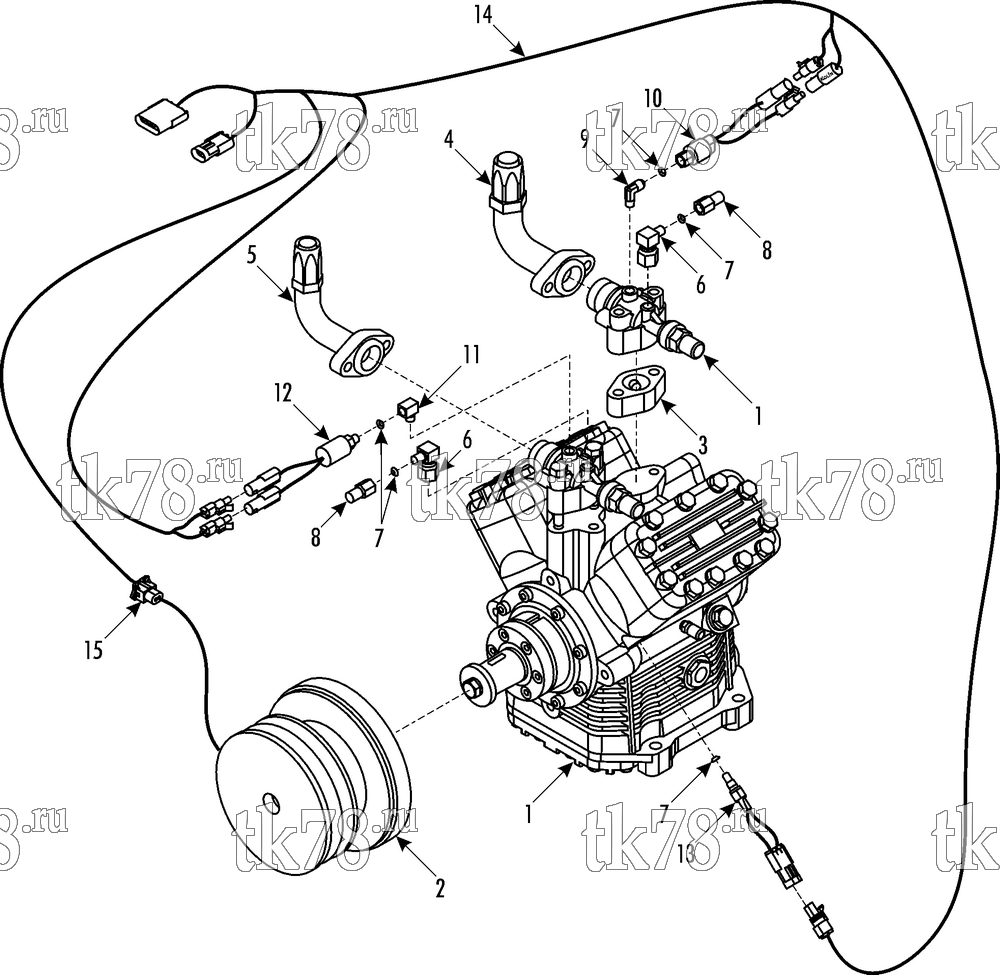

Установкa Thermo King CITI-RT N R134a схема COMPRESSOR GROUP (KIT 720418) – 215A5
Обновление от: 6/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-805 | COMPRESSOR - FKX 40/655K (see 184H5) | 1 | |
| 2 | 107-347 | CLUTCH | 1 | |
| 3 | 92-5348 | FLANGE | 1 | |
| 51-1555 | SCREW - flange | 2 | ||
| 4 | 51-580 | FITTING (#20) | 1 | |
| 5 | 51-583 | FITTING (#16) | 1 | |
| 55-4680 | SCREW - fittings | 4 | ||
| 6 | 61-2724 | FITTING - L flare | 2 | |
| 7 | 33-768 | GASKET | 5 | |
| 8 | 55-9582 | VALVE | 2 | |
| 9 | 55-308 | ELBOW | 1 | |
| 10 | 41-4147 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 11 | 55-2505 | ELBOW | 1 | |
| 12 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 13 | 41-3345 | SENSOR - temperature (for connectors see 115D14) | 1 | |
| 14 | 41-6198 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 15 | 44-9607 | CONNECTOR - female | 1 |
