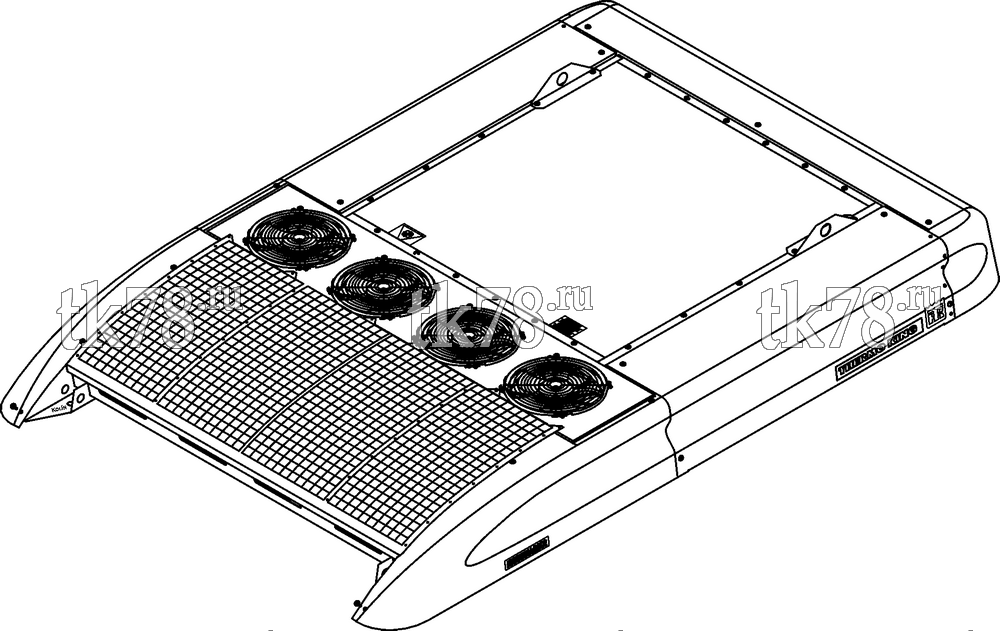

Установкa Thermo King CITI-RT N R134a схема CITI RT N R134a REFERENCE SHEET – 11U13
Обновление от: 6/21/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 918674 | System - Citi RT N 1000 R134a | 6/06 | ||
| 918675 | System - Citi RT N 1004 R134a | 6/06 | ||
| 099602 | ClimaAIRE I Control System (for unit 1000, 1004 - R134a) | 6/06 | ||
| 719360 | ClimaAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) Recommended | 6/06 | ||
| 718660 | Kit - Harness, 8.6 m to Compressor | 6/06 | ||
| 718884 | Kit - Harness, 10 m to Compressor | 6/06 | ||
| 718460 | Kit - Harness, 14 m to Compressor | 6/06 | ||
| 700521 | Harness (Unit to Compressor - 8.6 m length) | 6/06 | ||
| 700522 | Harness (Unit to Compressor - 10 m length) | 6/06 | ||
| 700523 | Harness (Unit to Compressor - 14 m length) | 6/06 | ||
| 006545 | ClimaAIRE II Control System, 1000, 1004 - R134a, Control Panel, Brush Fans, Brush Blowers | 6/06 | ||
| 700640 | Kit - ClimaAIRE I D with Harness, 18 m | 6/06 | ||
| 719135 | ClimaAIRE II DP with Display w/Harness (Unit to Driver Panel - 18.3 m length) | 6/06 | ||
| 700565 | ClimaAIRE II DP with Display w/Harness (Unit to Driver Panel - 18 m length) | 6/06 | ||
| 719302 | Harness - ClimaAIRE (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 719343 | Harness - ClimaAIRE (Unit to Compressor - 10 m length) | 6/06 | ||
| 720028 | Harness - ClimaAIRE (Unit to Compressor - 14 m length) | 6/06 | ||
| 700504 | Harness - ClimaAIRE (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 700507 | Harness - ClimaAIRE (Unit to Compressor - 10 m length) | 6/06 | ||
| 700505 | Harness - ClimaAIRE (Unit to Compressor - 14 m length) | 6/06 | ||
| 700566 | Harness - ClimaAIRE (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 700567 | Harness - ClimaAIRE (Unit to Compressor - 10 m length) | 6/06 | ||
| 700461 | Harness - ClimaAIRE (Unit to Compressor - 14 m length) | 6/06 | ||
| 099911 | IntelligAIRE Control System (for unit 1000, 1004 - R134a) RELIANCE Brushless Fans, Brushless Blowers | 6/06 | ||
| 719307 | IntelligAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 6/06 | ||
| 719318 | Harness (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 719317 | Harness (Unit to Compressor - 10 m length) | 6/06 | ||
| 719316 | Harness (Unit to Compressor - 14 m length) | 6/06 | ||
| 700526 | Harness (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 700527 | Harness (Unit to Compressor - 10 m length) | 6/06 | ||
| 700528 | Harness (Unit to Compressor - 14 m length) | 6/06 | ||
| 099603 | IntelligAIRE I Control System (for unit 1000, 1004 - R134a) | 6/06 | ||
| 099279 | Eprom w/o Diagnostic for IntelligAIRE I | 6/06 | ||
| 099280 | Eprom w/ Diagnostic for IntelligAIRE I | 6/06 | ||
| 719361 | IntelligAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 6/06 | ||
| 007075 | Fresh Air Damper Kit (Electric) for Citi RT | 6/06 | ||
| 099309 | NO Fresh Air Damper | 6/06 | ||
| 006533 | Tube Heating System without Heat Valve - Citi, Coach RT | 6/06 | ||
| 818660 | Kit - Installation, Citi 1000/1004 (for unit with Compressor FK) | 6/06 | ||
| 880091 | Kit - Installation, 1000/1004 (for unit with TK X430 Compressor) | 6/06 | ||
| 800149 | Kit - Installation (for unit with Screw Compressor S391) | 6/06 | ||
| 818670 | Kit - Installation, Citi RT R134a - FRGL | 6/06 | ||
| 818672 | Kit - Installation, Citi RT Cu Tube Install - FRGL | 6/06 | ||
| 800018 | Kit - Installation for Citi RT for FRGL | 6/06 | ||
| 818880 | Kit - Installation, Citir RT R134a - GHAB | 6/06 | ||
| 718220 | Compressor X430, 24V, Pulley 2B/2A, Dia 9 in | 6/06 | ||
| 720587 | Compressor X430-HPC, R134a, 24V, Pulley 2B/2A, 8.03 in / 8.89 in | 6/06 | ||
| 720590 | Compressor X430-HPC, R134a, 24V, Pulley 12-K, Width 2.28 in, Dia 7.75 in | 6/06 | ||
| 718886 | Compressor FK 40-655, Pulley 2B, Dia 173 mm | 6/06 | ||
| 718887 | Compressor FK 40-655, Pulley 2B, Dia 173 mm, Turn Suction Valve | 6/06 | ||
| 719362 | Compressor FKX 40-655, Pulley 2B, Dia 173 mm, without Service Valves - use with Kit 719363 or 720688 | 6/06 | ||
| 700574 | Kit - Compressor S391-HPC, R134a, Pulley 2B/2A | 6/06 | ||
| 720418 | Compressor FK 40-655, Pulley Special 2B, Dia 210 mm, w/Hose Fitting, HPCO, LPCO Switches, CTS Sensor | 6/06 | ||
| 700129 | Kit - Water Valve, 2-way Servomotor | 6/06 | ||
| 700130 | Kit - Water Valve, 3-way Servomotor | 6/06 | ||
| 700127 | Kit - Harness, 10 m, Servomotor Water Valve | 6/06 | ||
| 700128 | Kit - Harness, 20 m, Servomotor Water Valve | 6/06 | ||
| 718665 | Kit - Water Boost Pump, 27VDC, Hose Connections - id 38 mm, 5000 L/Hr (without Harness) | 6/06 | ||
| 719006 | Harness (Unit to Water Boost Pump - 14 m length) | 6/06 | ||
| 719007 | Harness (Unit to Water Boost Pump - 9 m length) | 6/06 | ||
| 719008 | Harness (Unit to Water Boost Pump - 7.6 m length) | 6/06 | ||
| 714765 | Kit - Air Filter Grille | 6/06 | ||
| 718676 | Hose Kit - MANULI for Citi (Newclima, #16/#20 - 1 m lg, Flange Fitting (Unit), ORS Fitting (Compr) | 6/06 | ||
| 718677 | Hose Kit - MANULI for Citi (Newclima, #16/#20 - 9 m lg, Flange Fitting (Unit), ORS Fitting (Compr) | 6/06 | ||
| 718678 | Hose Kit - MANULI for Citi (Newclima, #16/#20 - 12 m lg, Flange Fitting (Unit), ORS Fitting (Compr) | 6/06 | ||
| 718679 | Hose Kit - MANULI for Citi (Newclima, #16/#20 - 17 m lg, Flange Fitting (Unit), ORS Fitting (Compr) | 6/06 | ||
| 718918 | Hose Kit - MANULI for Citi (Newclima, #16/#20 - 10 m length & ORS Fittings 45 deg) | 6/06 | ||
| 700082 | Kit - Valves, Fittings, Belt, etc. for FRGL | 6/06 | ||
| 719363 | Kit - Valve, SPECIAL for Compr FKS 40/655 (FRGL Application) w/Harness, Screws (use with Kit 719362) | 6/06 | ||
| 720269 | Hose Kit - MANULI, Newclima, #16/#20 - 12 m length & ORS Fittings (Compr) without Fittings to Unit | 6/06 | ||
| 719305 | Kit - Alternator, 150A, 24VDC, 24V Excitation, 3.25 in for ClimaAIRE | 6/06 | ||
| 719306 | Kit - Alternator, 125A, 24VDC, 12V Excitation, 3.25 in for ClimaAIRE | 6/06 | ||
| 709797 | Kit - Alternator, 150A, 24VDC, 24V Excitation, 3.25 in | 6/06 | ||
| 711180 | Kit - Alternator, 125A, 24VDC, 12V Excitation, 3.25 in | 6/06 | ||
| 715546 | Kit - Harness Extension (6.35 m to Compressor) | 6/06 | ||
| 715245 | Kit - Muffler | 6/06 | ||
| 099721 | Kit - Insulation, Bottom - Citi RT, Coach RT | 6/06 |
