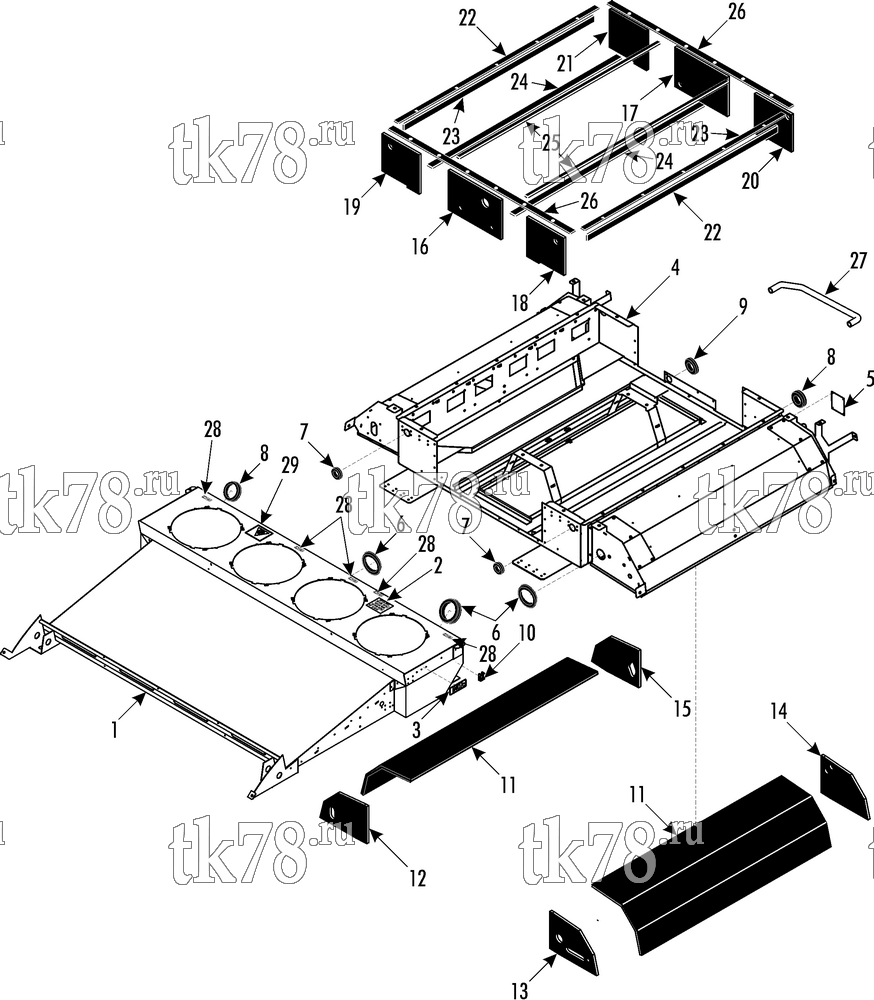

Установкa Thermo King CITI-RT N AP схема FRAME & INSULATION (R134a) – 241C5
Обновление от: 11/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8432 | FRAME - condenser (900928 & 900931) | 1 | |
| 98-8433 | FRAME - condenser (900989) | 1 | ||
| 55-5047 | RIVET - blind (.550 lg) | A/R | ||
| 55-5130 | RIVET - blind (.425 lg) | A/R | ||
| 55-8375 | NUT - captive (M5) | A/R | ||
| 55-6997 | NUT - captive (M6) | A/R | ||
| 55-9443 | NUT - captive (M6) | A/R | ||
| 55-5130 | RIVET - blind | A/R | ||
| 2 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 3 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 4 | 98-8413 | FRAME - evaporator (900928 & 900931) | 1 | |
| 98-8434 | FRAME - evaporator (900989) | 1 | ||
| 55-7866 | NUT - captive (M6, hex) | A/R | ||
| 55-7373 | NUT - captive (M4, hex) | A/R | ||
| 55-5130 | RIVET - blind | A/R | ||
| 5 | 92-444 | HOLDER - fitting (only for unit w/o heating) | 1 | |
| 55-5130 | RIVET - blind | 4 | ||
| 6 | 33-1371 | GROMMET (1.703 id) | 3 | |
| 7 | 33-629 | GROMMET (1.00 id) | 2 | |
| 8 | 33-1084 | GROMMET (1.00 id) | 2 | |
| 9 | 33-1283 | GROMMET (0.938 id) | 1 | |
| 10 | 99-6093 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 11 | 33-4547 | INSULATION (kit 008517 & 008518) | 2 | |
| 33-4568 | INSULATION (kit 008519) | 2 | ||
| 12 | 33-4548 | INSULATION (kit 008517 & 008518) | 1 | |
| 33-4569 | INSULATION (kit 008519) | 1 | ||
| 13 | 33-4549 | INSULATION (kit 008517 & 008518) | 1 | |
| 33-4570 | INSULATION (kit 008519) | 1 | ||
| 14 | 33-4550 | INSULATION (kit 008517 & 008518) | 1 | |
| 33-4571 | INSULATION (kit 008519) | 1 | ||
| 15 | 33-4551 | INSULATION (kit 008517 & 008518) | 1 | |
| 33-4572 | INSULATION (kit 008519) | 1 | ||
| 16 | 33-4552 | INSULATION (kit 008517, 008518 & 008519) | 1 | |
| 17 | 33-4553 | INSULATION (kit 008517, 008518 & 008519) | 1 | |
| 18 | 33-4554 | INSULATION (kit 008517 & 008519) | 1 | |
| 33-4564 | INSULATION (kit 008518) | 1 | ||
| 19 | 33-4555 | INSULATION (kit 008517 & 008519) | 1 | |
| 33-4565 | INSULATION (kit 008518) | 1 | ||
| 20 | 33-4556 | INSULATION (kit 008517 & 008519) | 1 | |
| 33-4566 | INSULATION (kit 008518) | 1 | ||
| 21 | 33-4557 | INSULATION (kit 008517 & 008519) | 1 | |
| 33-4567 | INSULATION (kit 008518) | 1 | ||
| 22 | 33-4558 | INSULATION (kit 008517, 008518 & 008519) | 2 | |
| 23 | 33-4559 | INSULATION (kit 008517, 008518 & 008519) | 2 | |
| 24 | 33-4560 | INSULATION (kit 008517, 008518 & 008519) | 2 | |
| 25 | 33-4561 | INSULATION (kit 008517, 008518 & 008519) | 2 | |
| 26 | 33-4562 | INSULATION (kit 008517, 008518 & 008519) | 2 | |
| 27 | 99-7809 | TUBE - insulation | A/R | |
| 28 | 99-4931 | NAMEPLATE - arrow | 5 | |
| 29 | 99-8506 | NAMEPLATE - Caution, Fan | 1 |
