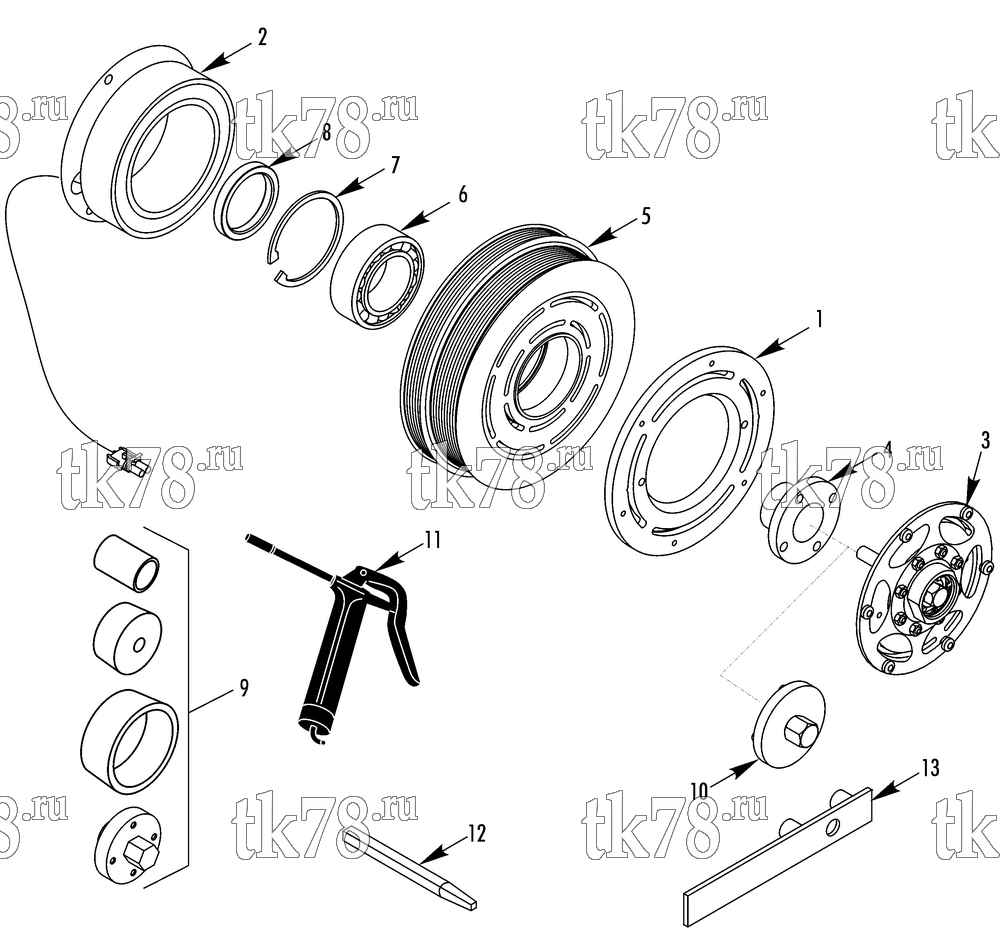

Установкa Thermo King CITI-RT N AP схема TK HIGH TORQUE CLUTCH (77-2944) – 233A9
Обновление от: 10/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 77-2944 | CLUTCH - assembly | 1 | ||
| 1 | 77-2841 | ARMATURE | 1 | |
| 2 | 45-2106 | COIL (24VDC) | 1 | |
| 3 | 77-2790 | HUB | 1 | |
| 4 | 77-2838 | SLEEVE - clamping | 1 | |
| 5 | 77-2938 | PULLEY - clutch (243OD 9K/6K) | 1 | |
| 6 | 77-2827 | BEARING - clutch | 1 | |
| 7 | 51-1107 | CIRCLIP | 1 | |
| 8 | 77-1491 | SPACER | 1 | |
| 9 | 204-1147 | TOOL KIT | 1 | |
| 10 | 204-1200 | WRENCH | 1 | |
| 11 | 204-477 | GUN - grease | 1 | |
| 204-476 | GREASE | A/R | ||
| 12 | 204-972 | TOOL - keyway alignment | 1 | |
| 13 | 204-481 | PULLER - clutch | 1 |
