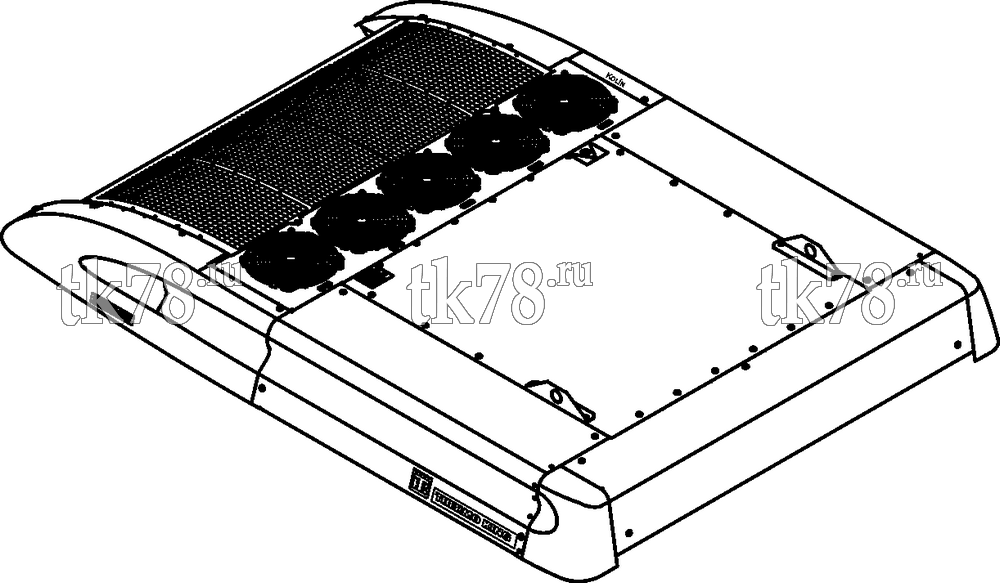

Установкa Thermo King CITI-RT & CITI-RT N 1012 схема CITI RT & Citi RT N 1012 REFERENCE SHEET – 11U11
Обновление от: 6/8/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 918666 | System - Citi RT 1012 R134a | 11/07 | ||
| 918662 | System - Citi RT 1012 R407C | 5/06 | ||
| 918676 | System - Citi RT N 1012 R134a | 8/06 | ||
| 918880 | System - Citi RT N 1012 R407C, R 10 - 18 m | 8/06 | ||
| 919696 | System - Citi RT N 1012 R407C, R 7.5 m | 8/06 | ||
| NOTE | For Power Pack TK486/V see TK 53149. | 11/07 | ||
| NOTE | For Power Pack TK486/B see TK 52575. | 11/07 | ||
| 099604 | ClimaAIRE I Control System (for unit 1012 - R134a) | 11/07 | ||
| 099608 | ClimaAIRE I Control System (for unit 1012 - R407C) | 5/06 | ||
| 719360 | ClimaAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 11/07 | ||
| 719364 | Kit - Harness 8.6 m to Power Pack | 11/07 | ||
| 006546 | ClimaAIRE II Control System 1012 (R134a) - Control Panel, Brush Fans, Brush Blowers | 11/07 | ||
| 006548 | ClimaAIRE II Control System 1012 (R407C) - Control Panel, Brush Fans, Brush Blowers | 5/06 | ||
| 719135 | ClimaAIRE II DP with Display w/Harness (Unit to Driver Panel - 18.3 m length) | 11/07 | ||
| 719364 | Kit - Harness, 8.6 m to Power Pack | 11/07 | ||
| 719322 | Harness (Unit to Power Pack - 8 m length) | 11/07 | ||
| 099912 | IntelligAIRE Control System (for unit 1012 - R134a) - RELIANCE Brushless Fans and Blowers | 11/07 | ||
| 099914 | IntelligAIRE Control System (for unit 1012 - R407C) - RELIANCE Brushless Fans and Blowers | 5/06 | ||
| 719307 | IntelligAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 5/06 | ||
| 099605 | IntelligAIRE I Control System (for unit 1012 - R134a) | 11/07 | ||
| 099609 | IntelligAIRE I Control System (for unit 1012 - R407C) | 5/06 | ||
| 099279 | Eprom w/o Diagnostic for IntelligAIRE I | 11/07 | ||
| 099280 | Eprom w/ Diagnostic for IntelligAIRE I | 11/07 | ||
| 719361 | IntelligAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 11/07 | ||
| 007075 | Fresh Air Damper Kit (Electric) for Citi RT | 11/07 | ||
| 099309 | NO Fresh Air Damper | 11/07 | ||
| 818661 | Kit - Installation, Citi 1012 | 11/07 | ||
| 720790 | Power Pack YAN-2.1L, X430, R134a, 12V Exc., Idler | 11/07 | ||
| 720789 | Power Pack YAN-2.1L, X430, R134a, 12V Exc., Alt. | 11/07 | ||
| 700140 | Kit - Power Pack Cover | 11/07 | ||
| 714765 | Kit - Air Filter Grille | 11/07 | ||
| 718676 | Hose Kit, MANULI for Citi (Newclima #16 #20 - 1 m length, flange fitting (unit), ORS fitting (comp) | 11/07 | ||
| 718677 | Hose Kit, MANULI for Citi (Newclima #16 #20 - 9 m length, flange fitting (unit), ORS fitting (comp) | 11/07 | ||
| 718678 | Hose Kit, MANULI for Citi (Newclima #16 #20 - 12 m length, flange fitting (unit), ORS fitting (comp) | 11/07 | ||
| 718679 | Hose Kit, MANULI for Citi (Newclima #16 #20 - 17 m length, flange fitting (unit), ORS fitting (comp) | 11/07 | ||
| 718918 | Hose Kit, MANULI for Citi (Newclima #16 #20 - 10 m length, ORS fittings, 45 deg | 11/07 | ||
| 718672 | Hose Kit, Citi (SS #16 #20 - 0.8 m length, flange fitting (unit), ORS fitting (comp) | 5/06 | ||
| 720361 | Hose Kit, Citi - Newclima Green 1134 - Length 1 m | 5/06 | ||
| 720317 | Hose Kit, Citi - Newclima Green 1134 - Length 9 m | 11/07 | ||
| 720318 | Hose Kit, Citi - Newclima Green 1134 - Length 12 m | 11/07 | ||
| 715546 | Kit - Harness Extension (6.35 m to Compressor) | 11/07 | ||
| 715245 | Kit - Muffler | 11/07 | ||
| 720171 | Kit - Muffler for units with R407C, without Hose | 5/06 | ||
| 099721 | Kit - Bottom Insulation - Citi RT, Coach RT | 11/07 | ||
| 700648 | Kit - SmartAIRE Adapter | 11/07 |
