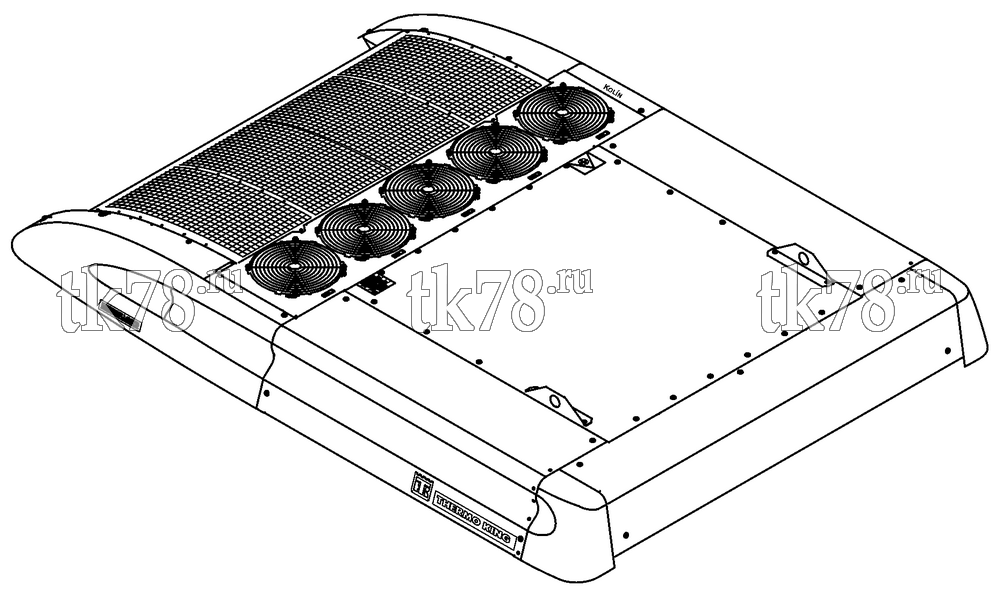

Установкa Thermo King CITI-RT 1000 схема CITI RT 1000 REFERENCE SHEET – 6U34
Обновление от: 5/2/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 918664 | System - Citi RT 1000, R134a | 3/06 | ||
| 918660 | System - Citi RT 1000, R407C | 3/06 | ||
| 099602 | ClimaAIRE I Control System (for unit 1000, 1004 - R134a) | 3/06 | ||
| 099606 | ClimaAIRE I Control System (for unit 1000, 1004 - R407C) | 3/06 | ||
| 719360 | ClimaAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 3/06 | ||
| 719660 | Harness Kit - 8.6 m to Compressor | 3/06 | ||
| 718884 | Harness Kit - 10 m to Compressor | 3/06 | ||
| 718460 | Harness Kit - 14 m to Compressor | 3/06 | ||
| 700521 | Harness (Unit to Compressor - 8.6 m length) | 3/06 | ||
| 700522 | Harness (Unit to Compressor - 10 m length) | 3/06 | ||
| 700523 | Harness (Unit to Compressor - 14 m length) | 3/06 | ||
| 006545 | ClimaAIRE II Control System 1000, 1004 (R134a) - Control Panel, Brush Fans, Brush Blowers | 3/06 | ||
| 006547 | ClimaAIRE II Control System 1000, 1004 (R407C) - Control Panel, Brush Fans, Brush Blowers | 3/06 | ||
| 006812 | ClimaAIRE II Control System 1000, 1004 (R407C) - Control Panel, EBM Brushless Fans & Blowers | 3/06 | ||
| 719135 | ClimaAIRE II DP with Display w/Harness (Unit to Driver Panel - 18.3 m length) | 3/06 | ||
| 700565 | ClimaAIRE II DP with Display w/ Harness (Unit to Driver Panel - 18 m length) | 3/06 | ||
| 719302 | ClimaAIRE Harness (Unit to Compressor - 8.3 m length) | 3/06 | ||
| 719343 | ClimaAIRE Harness (Unit to Compressor - 10 m length) | 3/06 | ||
| 720028 | ClimaAIRE Harness (Unit to Compressor - 14 m length) | 3/06 | ||
| 700504 | ClimaAIRE Harness (Unit to Compressor - 8.3 m length) | 3/06 | ||
| 700507 | ClimaAIRE Harness (Unit to Compressor - 10 m length) | 3/06 | ||
| 700505 | ClimaAIRE Harness (Unit to Compressor - 14 m length) | 3/06 | ||
| 700566 | ClimaAIRE Harness (Unit to Compressor - 8.3 m length) | 3/06 | ||
| 700567 | ClimaAIRE Harness (Unit to Compressor - 10 m length) | 3/06 | ||
| 700461 | ClimaAIRE Harness (Unit to Compressor - 14 m length) | 3/06 | ||
| 099911 | IntelligAIRE Control System (for unit 1000, 1004 - R134a) RELIANCE Brushless Fans, Brushless Blowers | 3/06 | ||
| 099913 | IntelligAIRE Control System (for unit 1000, 1004 - R407C) RELIANCE Brushless Fans, Brushless Blowers | 3/06 | ||
| 719361 | IntelligAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length) | 3/06 | ||
| 099603 | IntelligAIRE I Control System (for unit 1000, 1004 - R134a) | 3/06 | ||
| 099607 | IntelligAIRE I Control System (for unit 1000, 1004 - R407C) | 3/06 | ||
| 099279 | Eprom w/o Diagnostic for IntelligAIRE I | 3/06 | ||
| 099280 | Eprom w/ Diagnostic for IntelligAIRE I | 3/06 | ||
| 007075 | Fresh Air Damper Kit (Electric) for Citi RT | 3/06 | ||
| 099309 | NO Fresh Air Damper | 3/06 | ||
| 818660 | Installation Kit - Citi 1000/1004 (for unit without Compressor FK...) | 3/06 | ||
| 880091 | Installation Kit - 1000/1004 (for unit with TK X430 Compressor) | 3/06 | ||
| 800149 | Installation Kit (for unit with S391 Screw Compressor) | 3/06 | ||
| 818670 | Installation Kit - Citi RT R134a - FRGL | 3/06 | ||
| 818672 | Installation Kit - Citi RT Cu Tube Install - FRGL | 3/06 | ||
| 818880 | Installation Kit - Citi RT R134a - GHAB | 3/06 | ||
| 718220 | Compressor X430, 24V, Pulley 2B/2A, Dia 9 inch | 3/06 | ||
| 720587 | Compressor X430-HPC, R134a, 24V, Pulley 2B/2A, 8.03 in/8.89 in | 3/06 | ||
| 720590 | Compressor X430-HPC, R134a, 24V, Pulley 12-K, Width 2.28 in, Dia 7.75 in | 3/06 | ||
| 720591 | Compressor X430-HPC, R407C, 24V, Pulley 2B/2A, 8.03 in/8.89 in | 3/06 | ||
| 718886 | Compressor FK 40-655, Pulley 2B, Dia 173 mm | 3/06 | ||
| 718887 | Compressor FK 40-655, Pulley 2B, Dia 173 mm, Turn Suction Valve | 3/06 | ||
| 718888 | Compressor FK 40-560, Pulley 10K, Dia 224 mm - use with Hose Kit 718880 | 3/06 | ||
| 719362 | Compressor FKX 40/655, Pulley 2B, Dia 173 mm, without Service Valves - use Kit 719363 or 720688 | 3/06 | ||
| 700574 | Compressor Kit - S391-HPC, R134a, Pulley 2B/2A | 3/06 | ||
| 714765 | Air Filter Grille Kit | 3/06 | ||
| 718676 | Hose Kit MANULI for Citi, Newclima #16, #20, 1 m length, Flange Fitting (unit), ORS Fitting (compr) | 3/06 | ||
| 718677 | Hose Kit MANULI for Citi, Newclima #16, #20, 9 m length, Flange Fitting (unit), ORS Fitting (compr) | 3/06 | ||
| 718678 | Hose Kit MANULI for Citi, Newclima #16, #20, 12 m length, Flange Fitting (unit), ORS Fitting (compr) | 3/06 | ||
| 718679 | Hose Kit MANULI for Citi, Newclima #16, #20, 17 m length, Flange Fitting (unit), ORS Fitting (compr) | 3/06 | ||
| 718918 | Hose Kit MANULI for Citi, Newclima #16, #20, 10 m length, ORS Fittings 45 deg) | 3/06 | ||
| 718672 | Hose Kit for Citi, SS, #16, #20, 0.8 m length, Flange Fitting (unit), ORS Fitting (compr) | 3/06 | ||
| 719363 | Valve Kit, SPECIAL for FKX 40/655 Compr (FRGL application) with Harness, Screws (use w/Kit 719362) | 3/06 | ||
| 720269 | Hose Kit MANULI, Newclima #16, #20, 12 m length, ORS Fittings (compr) without fittings to unit | 3/06 | ||
| 719305 | Alternator Kit - 150A, 24VDC, 24V Excitation, 3.25 inch for ClimaAIRE | 3/06 | ||
| 719306 | Alternator Kit - 125A, 24VDC, 12V Excitation, 3.25 inch for ClimaAIRE | 3/06 | ||
| 709797 | Alternator Kit - 150A, 24VDC, 24V Excitation, 3.25 inch | 3/06 | ||
| 711180 | Alternator Kit - 125A, 24VDC, 12V Excitation, 3.25 inch | 3/06 | ||
| 715546 | Harness Extension Kit (6.35 m to Compressor) | 3/06 | ||
| 715245 | Muffler Kit | 3/06 | ||
| 720171 | Muffler Kit for units with R407C, without Hose | 3/06 | ||
| 099721 | Insulation Kit for bottom, Citi RT, Coach RT | 3/06 |
