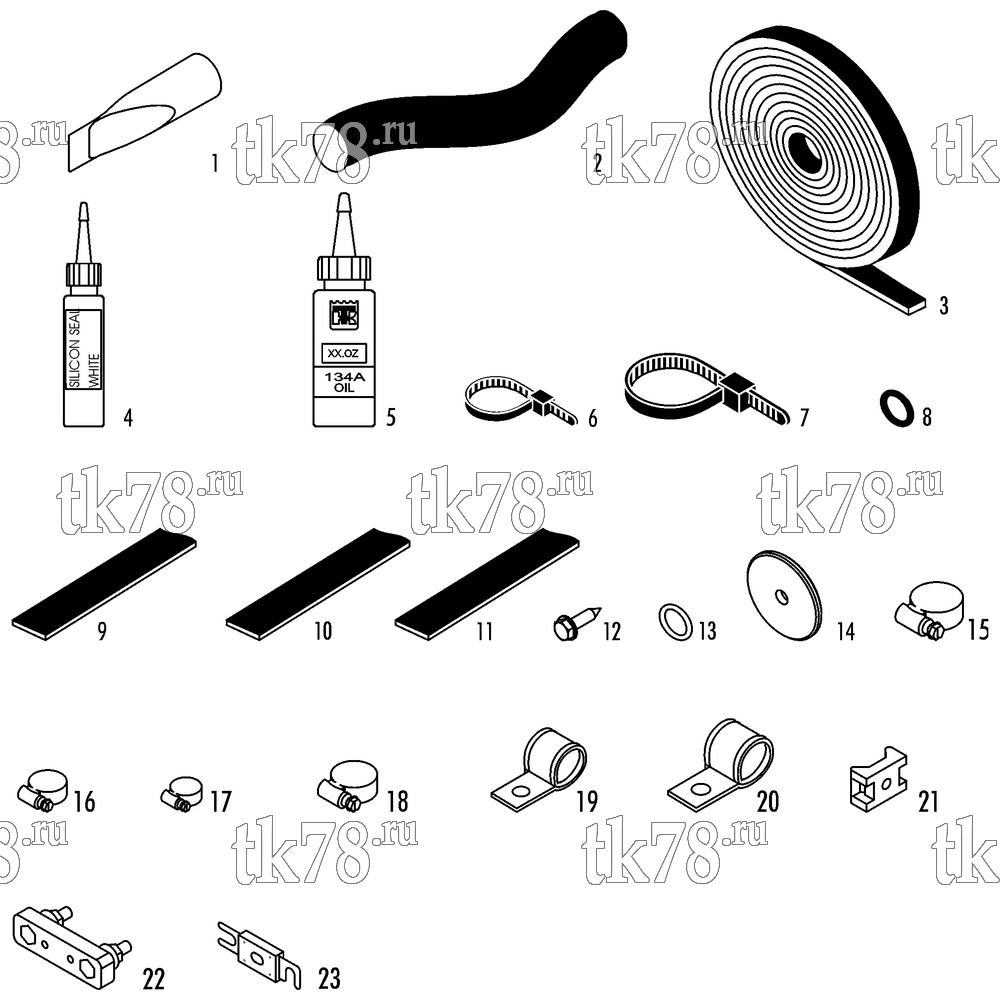

Установкa Thermo King CITI-RT 1000 схема INSTALLATION KIT (818880) – 211C9
Обновление от: 4/25/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - drain | 4 | |
| 2 | 91-9006 | HOSE | A/R | |
| 3 | 203-391 | SEALER - tape | A/R | |
| 4 | 203-528 | SEALER | 5 | |
| 5 | 203-505 | OIL - compressor (2 oz bottle) | 1 | |
| 6 | 55-2330 | BANDWRAP (1.75 dia) | A/R | |
| 7 | 55-2331 | BANDWRAP (4.0 dia) | A/R | |
| 8 | 33-3191 | GASKET - flange | 2 | |
| 9 | 99-5966 | STRIP - neoprene (0.25 thk) | A/R | |
| 10 | 33-3531 | STRIP - neoprene (0.38 thk) | A/R | |
| 11 | 99-9251 | STRIP - neoprene (0.62 thk) | A/R | |
| 12 | 55-5641 | SCREW | 14 | |
| 13 | 55-7342 | LOCKWASHER | 14 | |
| 14 | 55-8542 | WASHER - special | 6 | |
| 15 | 55-558 | CLAMP (1 - 2 dia) | 4 | |
| 16 | 55-3401 | CLAMP (1 - 1.5 dia) | 10 | |
| 17 | 55-6731 | CLAMP (0.375 - 0.875 dia) | 12 | |
| 18 | 55-3104 | CLAMP (1.75 dia) | 10 | |
| 19 | 55-3644 | CLAMP (1.0 dia) | 6 | |
| 20 | 55-7504 | CLAMP (1.25 dia) | 20 | |
| 21 | 99-3281 | MOUNT - cable tie | A/R | |
| 22 | 44-8708 | HOLDER - fuse | 1 | |
| 23 | 44-8709 | FUSE (130 amp) | 2 |
