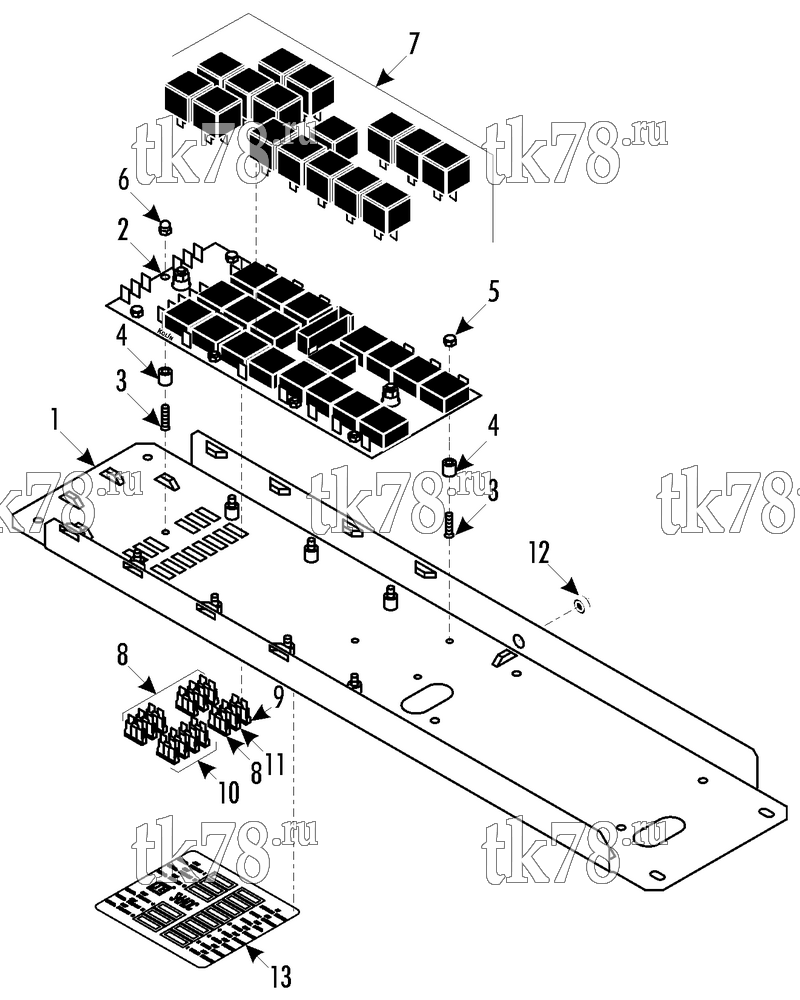

Установкa Thermo King CITI-RT 1000 схема CONTROL PANEL (006545, 006547) – 211C6
Обновление от: 4/25/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3340 | BRACKET - control panel | 1 | |
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 2 | 41-4045 | PANEL - control, pcb | 1 | |
| 3 | 55-9623 | STUD - panel | 9 | |
| 4 | 55-9624 | SPACER | 9 | |
| 55-7033 | FLATWASHER | 9 | ||
| 5 | 55-7034 | NUT | 8 | |
| 6 | 51-310 | NUT - plastic | 1 | |
| 7 | 41-896 | RELAY - mini | 16 | |
| 8 | 44-9344 | FUSE (15 amp) | 7 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 9 | 41-1932 | FUSE (1 amp) | 1 | |
| 10 | 41-2978 | FUSE (20 amp) | 4 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 11 | 41-1292 | FUSE (5 amp) | 1 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 12 | 33-314 | GROMMET (0.312 id) | 1 | |
| 13 | 92-2730 | NAMEPLATE - Control Panel | 1 |
