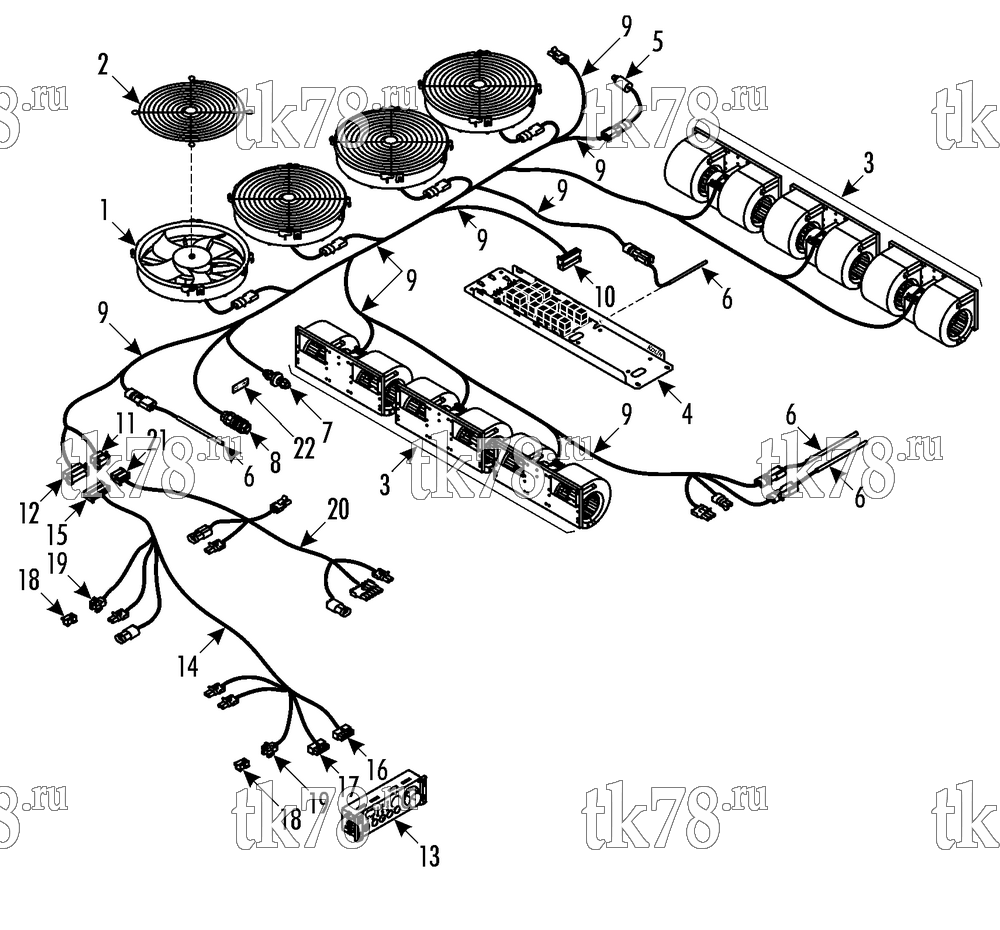

Установкa Thermo King CITI-RT 1000 схема ELECTRICAL COMPONENTS (ClimaAIRE II, 006545, 006547) – 211C1
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1344 | FAN (4 for 006545; 5 for 006547) | A/R | |
| 2 | 98-5425 | GUARD - fan (4 for 006545; 5 for 006547) | A/R | |
| 55-7372 | SCREW - fan & guard (16 for 006545; 20 for 006547) | A/R | ||
| 55-9190 | LOCKWASHER (16 for 006545; 20 for 006547) | A/R | ||
| 55-8893 | FLATWASHER (16 for 006545; 20 for 006547) | A/R | ||
| 55-7373 | NUT - captive (16 for 006545; 20 for 006547) | A/R | ||
| 3 | 78-1297 | BLOWER | 6 | |
| 55-7664 | SCREW - blower | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7368 | FLATWASHER | 24 | ||
| 55-7866 | NUT - captive | 24 | ||
| 4 | NSS | CONTROL PANEL (see 211C6) | 1 | |
| 5 | 41-5220 | SWITCH - hpco | 1 | |
| 6 | 41-4157 | SENSOR - temperature | 4 | |
| 7 | 55-9367 | STUD - terminal | 1 | |
| 55-8631 | WASHER (nylon) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 8 | 55-9191 | STUD - terminal | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 9 | 41-9470 | HARNESS - city (for connectors see 115D14) | 1 | |
| 10 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 11 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 12 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 13 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 14 | 41-5378 | HARNESS - driver panel (18 m, for connectors see 115D14) | 1 | |
| 41-7227 | HARNESS - driver panel (18 m, for S391/S616, for connectors see 115D14) | 1 | ||
| 15 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 16 | 41-650 | CONNECTOR (18 term) | 1 | |
| 17 | 41-661 | CONNECTOR (14 term) | 1 | |
| 18 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 19 | 41-4949 | CONNECTOR (4-pin, male) | 1 | |
| 20 | 41-4513 | HARNESS - control panel to compressor (8.3 m, optional, for connectors see 115D14) | 1 | |
| 41-4776 | HARNESS - control panel to compressor (10 m, optional, for connectors see 115D14) | 1 | ||
| 41-5315 | HARNESS - control panel to compressor (14 m, optional, for connectors see 115D14) | 1 | ||
| 41-7229 | HARNESS - control panel to compressor (8.3 m, optional, SML, for connectors see 115D14) | 1 | ||
| 41-7230 | HARNESS - control panel to compressor (10 m, optional, SML, for connectors see 115D14) | 1 | ||
| 41-7231 | HARNESS - control panel to compressor (14 m, optional, SML, for connectors see 115D14) | 1 | ||
| 41-7232 | HARNESS - control panel to compressor (8.3 m, optional, S391/S616, for connectors see 115D14) | 1 | ||
| 41-7233 | HARNESS - control panel to compressor (10 m, optional, S391/S616, for connectors see 115D14) | 1 | ||
| 41-7234 | HARNESS - control panel to compressor (14 m, optional, S391/S616, for connectors see 115D14) | 1 | ||
| 44-5537 | SOCKET - relay | 2 | ||
| 41-5657 | RELAY | 2 | ||
| 21 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 22 | 91-7509 | NAMEPLATE - Positive/Negative | 1 |
