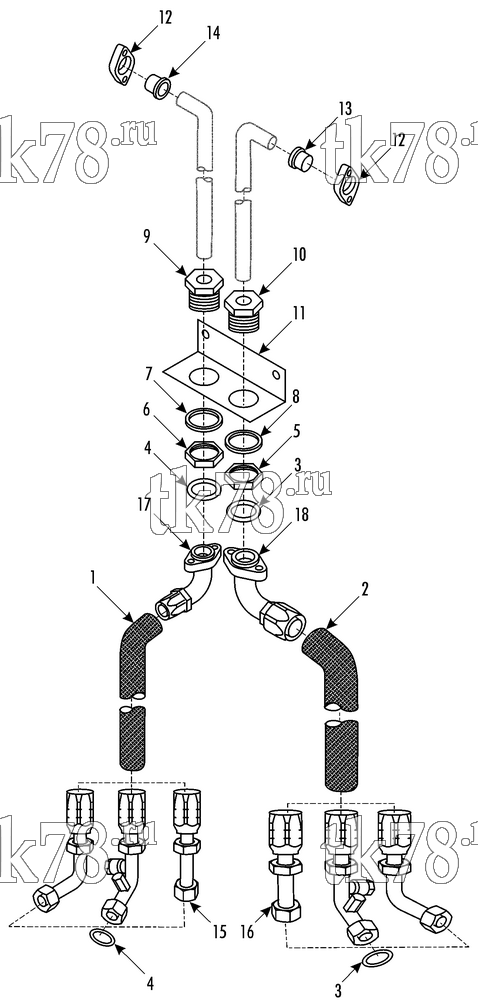

Установкa Thermo King CITI-RT 1000 схема HOSE & FITTING KIT (China) – 211B8
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-2152 | HOSE - discharge (#16) | A/R | |
| 2 | 61-2183 | HOSE - suction (#20) | A/R | |
| 3 | 33-3166 | O-RING | 2 | |
| 4 | 33-3165 | O-RING | 3 | |
| 5 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 6 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 7 | 55-5741 | LOCKWASHER (1.50 id) | 1 | |
| 8 | 55-5742 | LOCKWASHER (1.75 id) | 1 | |
| 9 | 66-5247 | ADAPTER - bulkhead (#16, discharge) | 1 | |
| 10 | 55-7537 | ADAPTER - bulkhead (#20, suction) | 1 | |
| 11 | 91-1251 | BRACKET - fittings | 1 | |
| 12 | 55-9371 | FLANGE - adapter | 2 | |
| 13 | 55-9184 | ADAPTER - suction | 1 | |
| 14 | 55-9185 | ADAPTER - discharge | 1 | |
| 15 | 55-9772 | FITTING - discharge (manuli, 45 deg, 1-7/16-12) | 1 | |
| 55-9769 | FITTING - discharge (manuli, 0 deg, 1-7/16-12) | 1 | ||
| 55-9775 | FITTING - discharge (manuli, 90 deg, 1-7/16-12) | 1 | ||
| 16 | 55-9773 | FITTING - suction (manuli, 45 deg, 1-11/16-12) | 1 | |
| 55-9770 | FITTING - suction (manuli, 0 deg, 1-11/16-12) | 1 | ||
| 55-9776 | FITTING - suction (manuli, 90 deg, 1-11/16-12) | 1 | ||
| 17 | 51-583 | FITTING - discharge (#16, manuli) | 1 | |
| 18 | 51-580 | FITTING - suction (#20, manuli) | 1 |
