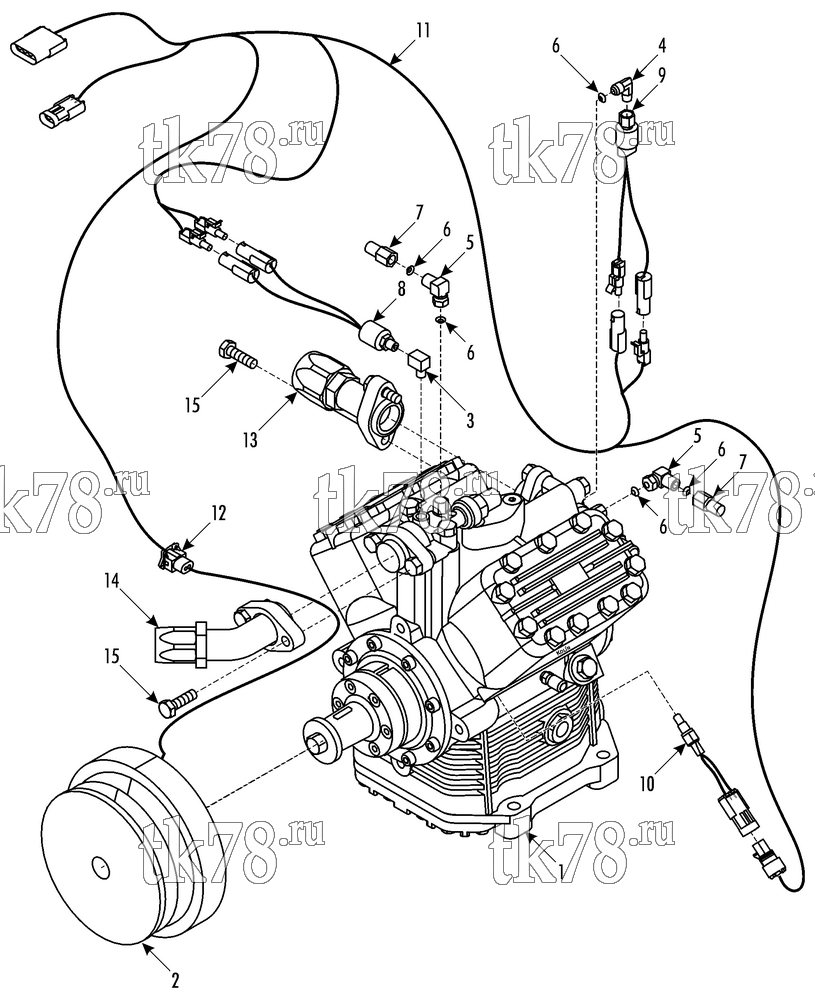

Установкa Thermo King CITI-RT 1000 схема COMPRESSOR GROUP (KIT 718886) – 211B6
Обновление от: 6/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-805 | COMPRESSOR - FKX 40/655 K (see 184H5) | 1 | |
| 2 | 107-321 | CLUTCH | 1 | |
| 3 | 55-2505 | ELBOW | 1 | |
| 4 | 55-308 | ELBOW | 1 | |
| 5 | 61-2724 | FITTING - L flare | 2 | |
| 6 | 33-768 | GASKET | 5 | |
| 7 | 55-9582 | VALVE | 2 | |
| 8 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 9 | 41-4147 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 10 | 41-3345 | SENSOR - temperature (for connectors see 115D14) | 1 | |
| 11 | 41-6198 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 12 | 44-9607 | CONNECTOR - female | 1 | |
| 13 | 61-3588 | FITTING (#20) | 1 | |
| 14 | 61-3589 | FITTING (#16) | 1 | |
| 15 | 55-4680 | SCREW | 4 |
