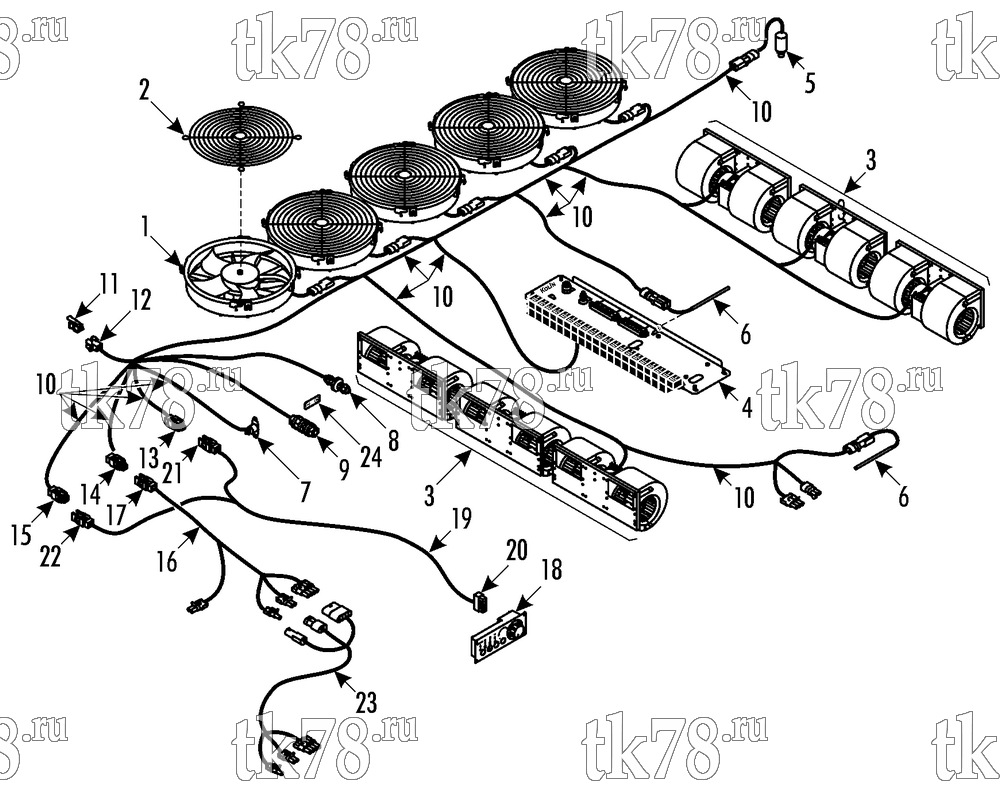

Установкa Thermo King CITI-RT 1000 схема ELECTRICAL COMPONENTS (ClimaAIRE I, 099602, 099606) – 211B0
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1344 | FAN (4 for 099602; 5 for 099606) | A/R | |
| 2 | 98-5425 | GUARD - fan (4 for 099602; 5 for 099606) | A/R | |
| 55-7372 | SCREW - fan & guard (16 for 099602; 20 for 099606) | A/R | ||
| 55-9190 | LOCKWASHER (16 for 099602; 20 for 099606) | A/R | ||
| 55-8893 | FLATWASHER (16 for 099602; 20 for 099606) | A/R | ||
| 55-7373 | NUT - captive (16 for 099602; 20 for 099606) | A/R | ||
| 3 | 78-1297 | BLOWER | 6 | |
| 55-7664 | SCREW - blower | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7368 | FLATWASHSER | 24 | ||
| 55-7866 | NUT - captive | 24 | ||
| 4 | NSS | CONTROL PANEL (for 099602 see 211C4, for 099606 see 211C5) | 1 | |
| 5 | 41-5220 | SWITCH - hpco | 1 | |
| 6 | 41-4157 | SENSOR - temperature | 2 | |
| 7 | 44-3292 | SWITCH - thermostat | 1 | |
| 55-7664 | SCREW - switch | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 8 | 55-9367 | STUD - terminal | 1 | |
| 55-8631 | WASHER (nylon) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 9 | 55-9191 | STUD - terminal | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 10 | 41-4603 | HARNESS - city (for connectors see 115D14) | 1 | |
| 11 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 12 | 41-4949 | CONNECTOR (4-pin, male) | 1 | |
| 13 | 304-2686 | CONNECTOR (6-pin, male) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 14 | 304-2684 | CONNECTOR (9-pin, male) | 1 | |
| 41-1950 | CONNECTOR - strain relief | 1 | ||
| 15 | 41-2493 | CONNECTOR (12-pin, male) | 1 | |
| 41-1952 | CONNECTOR - strain relief | 1 | ||
| 16 | 41-3682 | HARNESS - compressor (8.6 m, w/ excitation, for connectors see 115D14) | 1 | |
| 41-4605 | HARNESS - compressor (10 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-3684 | HARNESS - compressor (14 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-7252 | HARNESS - compressor (8.6 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7253 | HARNESS - compressor (10 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7254 | HARNESS - compressor (14 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 17 | 304-2687 | CONNECTOR (9-pin, female) | 1 | |
| 41-1950 | CONNECTOR - strain relief | 1 | ||
| 18 | 41-7211 | PANEL - driver display | 1 | |
| 19 | 41-4604 | HARNESS - driver panel (18.3M) | 1 | |
| 20 | 41-661 | CONNECTOR (14 terminals) | 1 | |
| 21 | 41-2247 | CONNECTOR (6 term, female) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 22 | 41-2319 | CONNECTOR (12-pin, female) | 1 | |
| 41-1952 | CONNECTOR - strain relief | 1 | ||
| 23 | 41-2634 | HARNESS - extension, compressor (for connectors see 115D14) | 1 | |
| 24 | 91-7509 | NAMEPLATE - Positive/Negative | 1 |
