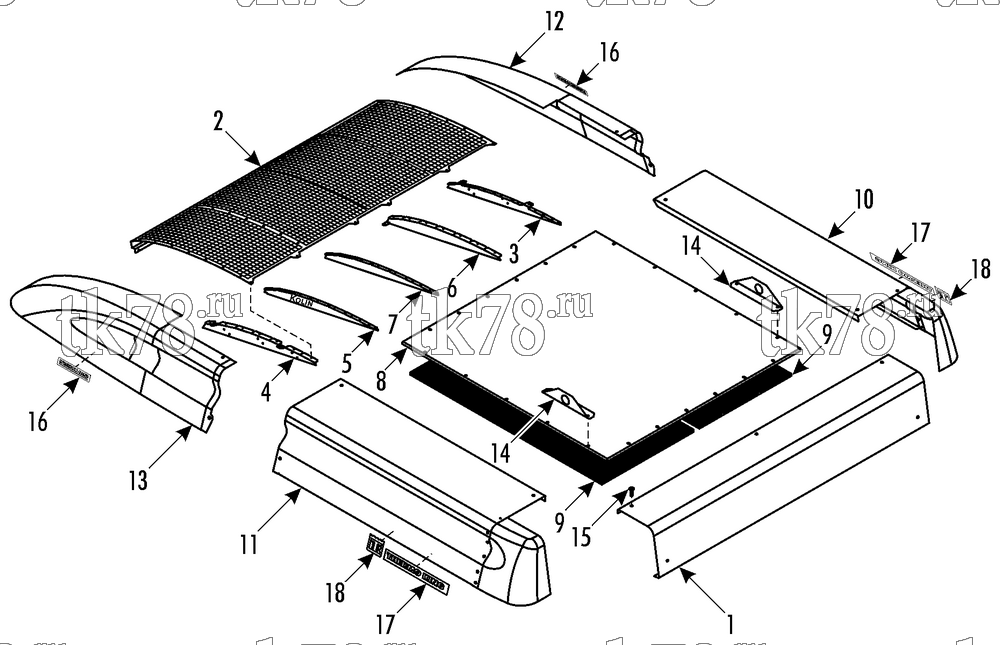

Установкa Thermo King CITI-RT 1000 схема STRUCTURAL COVERS – 160B6
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5789 | COVER - rear | 1 | |
| 2 | 98-6523 | COVER - condenser | 1 | |
| 55-2260 | RIVET | 70 | ||
| 55-7373 | NUT | 4 | ||
| 3 | 92-2679 | STIFFENER - grille (right, 6/02 & after) | 1 | |
| 4 | 92-2681 | STIFFENER - grille (left, 6/02 & after) | 1 | |
| 5 | 92-2680 | STIFFENER - grille (6/02 & after) | 1 | |
| 6 | 92-2682 | STIFFENER - grille (6/02 & after) | 1 | |
| 7 | 92-2683 | STIFFENER - grille (middle, 6/02 & after) | 1 | |
| 8 | 98-5788 | COVER - evaporator | 1 | |
| 9 | 92-451 | INSULATION - cover | 2 | |
| 10 | 98-5785 | SPOILER - right back | 1 | |
| 11 | 98-5786 | SPOILER - left back | 1 | |
| 13 | 98-5783 | SPOILER - right front | 1 | |
| 13 | 98-5784 | SPOILER - left front | 1 | |
| 14 | 92-452 | BRACKET - lifting | 2 | |
| 15 | 55-8837 | SCREW - becher | 43 | |
| 51-871 | WASHER - sealing | 43 | ||
| 16 | 91-8746 | NAMEPLATE - Ingersoll Rand | 2 | |
| 17 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 18 | 91-6232 | NAMEPLATE - TK logo | 2 |
