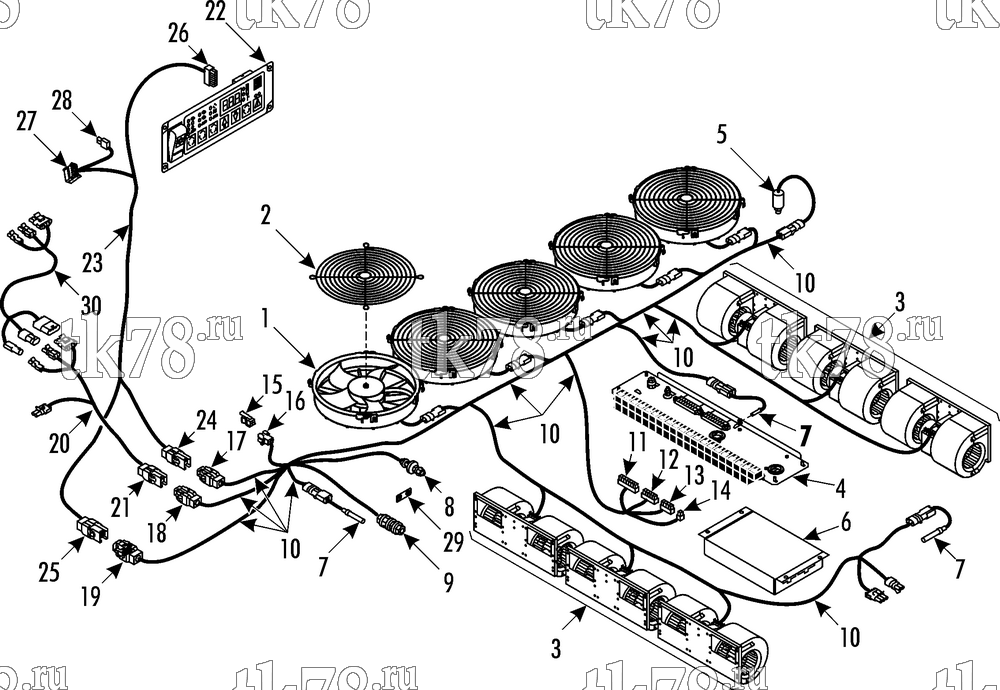

Установкa Thermo King CITI-RT 1000 схема ELECTRICAL COMPONENTS (IntelligAIRE I, 099603, 099607) – 160B4
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1344 | FAN (4 for 099603; 5 for 099607) | A/R | |
| 2 | 98-5425 | GUARD - fan (4 for 099603; 5 for 099607) | A/R | |
| 55-7372 | SCREW - fan & guard (16 for 099603; 20 for 099607) | A/R | ||
| 55-9190 | LOCKWASHER (16 for 099603; 20 for 099607) | A/R | ||
| 55-8893 | FLATWASHER (16 for 099603; 20 for 099607) | A/R | ||
| 55-7373 | NUT - captive (16 for 099603; 20 for 099607) | A/R | ||
| 3 | 78-1297 | BLOWER | 6 | |
| 55-7664 | SCREW - blower | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7368 | FLATWASHER | 24 | ||
| 4 | NSS | CONTROL PANEL (for 099603 see 211C2, for 099607 see 160B3) | 1 | |
| 5 | 41-5220 | SWITCH - hpco | 1 | |
| 6 | 41-2098 | BOARD - controller (see 175E7) | 1 | |
| 91-7632 | COVER - controller | 1 | ||
| 7 | 41-7706 | SENSOR - temperature | 3 | |
| 8 | 55-9367 | STUD - terminal | 1 | |
| 55-8631 | WASHER (nylon) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 9 | 55-9191 | STUD - terminal | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 10 | 41-3704 | HARNESS - city (for connectors see 115D14) | 1 | |
| 41-9206 | HARNESS - city (for connectors see 115D14) | 1 | ||
| 11 | 41-656 | CONNECTOR (24 term) | 1 | |
| 12 | 41-650 | CONNECTOR (18 term) | 1 | |
| 13 | 41-661 | CONNECTOR (14 term) | 1 | |
| 14 | 41-654 | CONNECTOR (4 term) | 1 | |
| 15 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 16 | 41-4949 | CONNECTOR (4-pin, male) | 1 | |
| 17 | 41-3882 | CONNECTOR (6-pin, male) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 18 | 41-2321 | CONNECTOR (9-pin, male) | 1 | |
| 41-1950 | CONNECTOR - strain relief | 1 | ||
| 19 | 41-2493 | CONNECTOR (12-pin, male) | 1 | |
| 41-1952 | CONNECTOR - strain relief | 1 | ||
| 20 | 41-3682 | HARNESS - compressor (8.6 m, w/ excitation, for connectors see 115D14) | 1 | |
| 41-4605 | HARNESS - compressor (10 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-3684 | HARNESS - compressor (14 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-7252 | HARNESS - compressor (8.3 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7253 | HARNESS - compressor (10 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-9193 | HARNESS - compressor (12 m, for connectors see 115D14) | 1 | ||
| 41-7254 | HARNESS - compressor (14 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-9207 | HARNESS - compressor (QS391, for connectors see 115D14) | 1 | ||
| 21 | 41-2329 | CONNECTOR (9-pin, female) | 1 | |
| 41-1950 | CONNECTOR - strain relief | 1 | ||
| 22 | 45-1773 | PANEL - driver display (see 152B12) | 1 | |
| 23 | 41-3705 | HARNESS - driver panel | 1 | |
| 24 | 41-2247 | CONNECTOR (6-pin, female) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 25 | 41-2319 | CONNECTOR (12-pin, female) | 1 | |
| 41-1952 | CONNECTOR - strain relief | 1 | ||
| 26 | 41-661 | CONNECTOR (14 term) | 1 | |
| 27 | 41-1508 | SOCKET - special switch | 1 | |
| 28 | 41-1507 | CONNECTOR (2 term) | 1 | |
| 29 | 91-7509 | NAMEPLATE - Positive/Negative | 1 | |
| 30 | 41-2634 | HARNESS - extension, compressor (for connectors see 115D14) | 1 |
