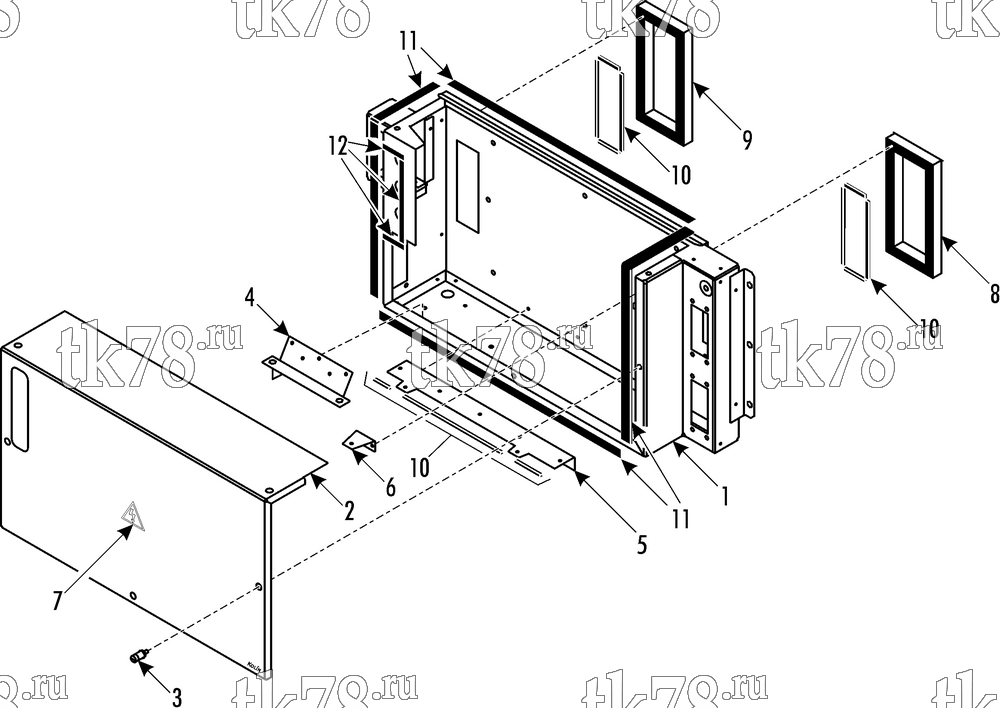

Установкa Thermo King CITADIS 35 kW TTNG схема ELECTRO BOX PANELS – 237F2
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8388 | BOX - sealing | 1 | |
| 55-6994 | SCREW - electro box to unit frame | 6 | ||
| 51-1830 | WASHER - spring | 6 | ||
| 55-8693 | WASHER - insulating | 6 | ||
| 55-9814 | NUT - captive, closed | 6 | ||
| 2 | 98-8203 | COVER | 1 | |
| 3 | 55-9758 | SCREW - captive | 5 | |
| 55-9573 | NUT - captive, closed | 5 | ||
| 4 | 92-7511 | BRACKET | 1 | |
| 55-6994 | SCREW - bracket | 2 | ||
| 51-1830 | WASHER - spring | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 5 | 92-7512 | SUPPORT | 1 | |
| 55-2715 | RIVET - support | 4 | ||
| 6 | 92-7513 | BRACKET | 1 | |
| 55-2715 | RIVET - bracket | 2 | ||
| 7 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 8 | 92-7514 | INSULATION | 1 | |
| 9 | 92-7515 | INSULATION | 1 | |
| 10 | 92-3279 | RUBBER - profile | A/R | |
| 11 | 33-2975 | STRIP - neoprene | A/R | |
| 12 | 99-4976 | STRIP - neoprene | A/R |
