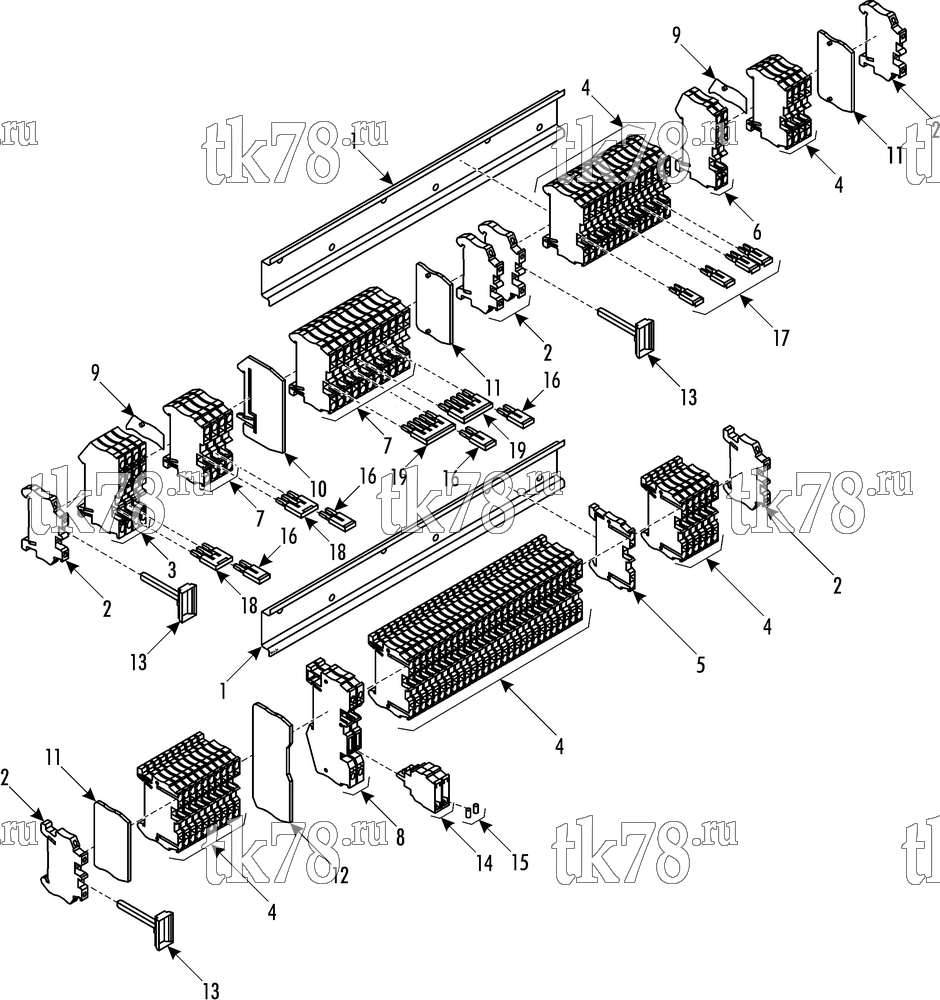

Установкa Thermo King CITADIS 35 kW TTNG схема TERMINAL CONTROLLER BOX – 234G6
Обновление от: 5/21/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3162 | RAIL - din | 2 | |
| 51-1320 | RIVET - rail | 12 | ||
| 2 | 41-8639 | CLAMP | 6 | |
| 3 | 41-8640 | CAGE CLAMP - terminal block | 4 | |
| 4 | 41-8641 | CAGE CLAMP - terminal block | 62 | |
| 5 | 41-8642 | CAGE CLAMP - terminal block | 1 | |
| 6 | 41-8643 | CAGE CLAMP - terminal block | 2 | |
| 7 | 41-8644 | CAGE CLAMP - terminal block | 15 | |
| 8 | 41-8645 | CAGE CLAMP - terminal block | 2 | |
| 9 | 41-8646 | PLATE - separation | 2 | |
| 10 | 41-8647 | PLATE - separation | 1 | |
| 11 | 41-8648 | ENDPLATE | 3 | |
| 12 | 41-8649 | ENDPLATE | 1 | |
| 13 | 41-8650 | MARKER - terminal strip | 3 | |
| 14 | 41-8651 | ACCESSORIES - disconnected terminal | 2 | |
| 15 | 41-8873 | DIODE | 2 | |
| 16 | 41-8652 | BRIDGE - plug-in (2 pos) | 4 | |
| 17 | 41-8653 | BRIDGE - plug-in (2 pos) | 4 | |
| 18 | 41-8654 | BRIDGE - plug-in (3 pos) | 2 | |
| 19 | 41-8655 | BRIDGE - plug-in (5 pos) | 2 |
