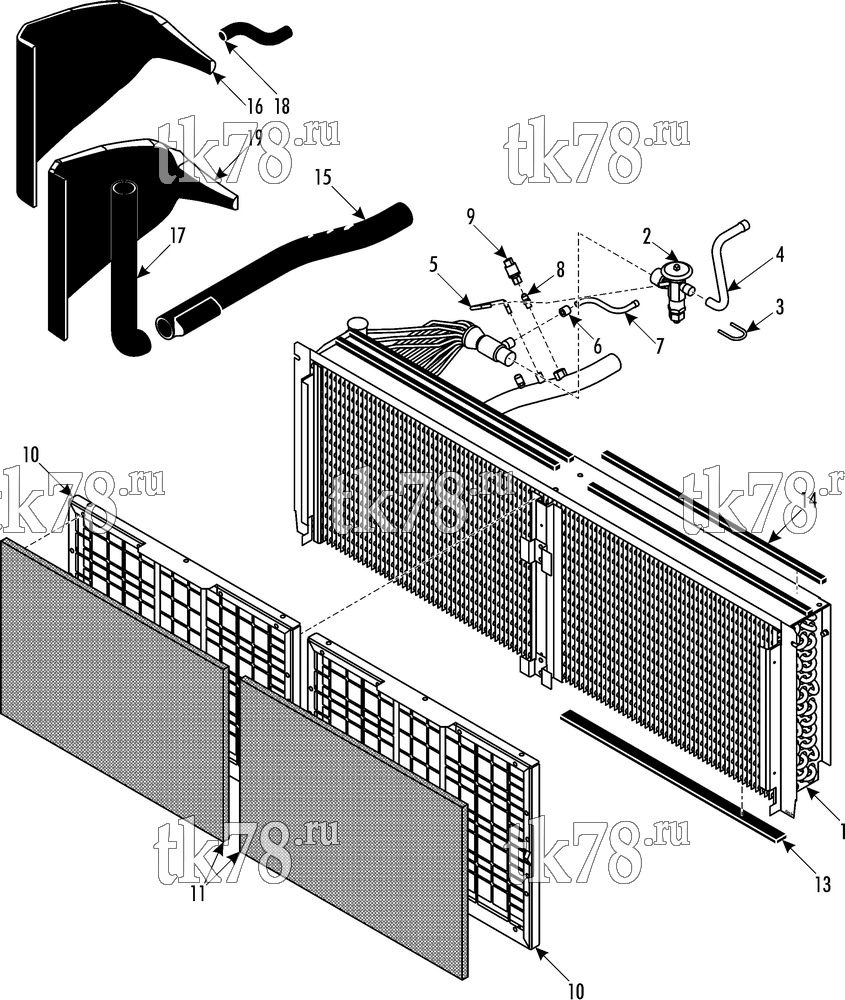

Установкa Thermo King CITADIS 35 kW TTNG схема EVAPORATOR – 234B9
Обновление от: 3/23/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2419 | COIL - evaporator | 1 | |
| 55-7373 | NUT - captive | 5 | ||
| 2 | 61-2343 | VALVE - thermostatic expansion | 1 | |
| 3 | 55-6788 | U-BOLT | 1 | |
| 55-7368 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 4 | 61-4627 | TUBE | 1 | |
| 5 | 61-4628 | TUBE - equalizer | 1 | |
| 6 | 55-7505 | BUSHING | 1 | |
| 7 | 61-4629 | TUBE | 1 | |
| 8 | 55-7213 | ADAPTER | 1 | |
| 9 | 41-5899 | SWITCH - lpco (service set - connector incl.) | 1 | |
| 10 | 98-8195 | FRAME - filter | 2 | |
| 11 | 92-8486 | FILTER | 2 | |
| 13 | 99-8562 | STRIP - neoprene | A/R | |
| 14 | 99-7246 | STRIP - neoprene | A/R | |
| 15 | 92-7480 | INSULATION | 1 | |
| 16 | 92-7481 | INSULATION | 1 | |
| 17 | 92-7482 | INSULATION | 1 | |
| 55-2332 | BANDWRAP | 3 | ||
| 18 | 92-7711 | INSULATION | 1 | |
| 19 | 92-8003 | INSULATION | 1 |
