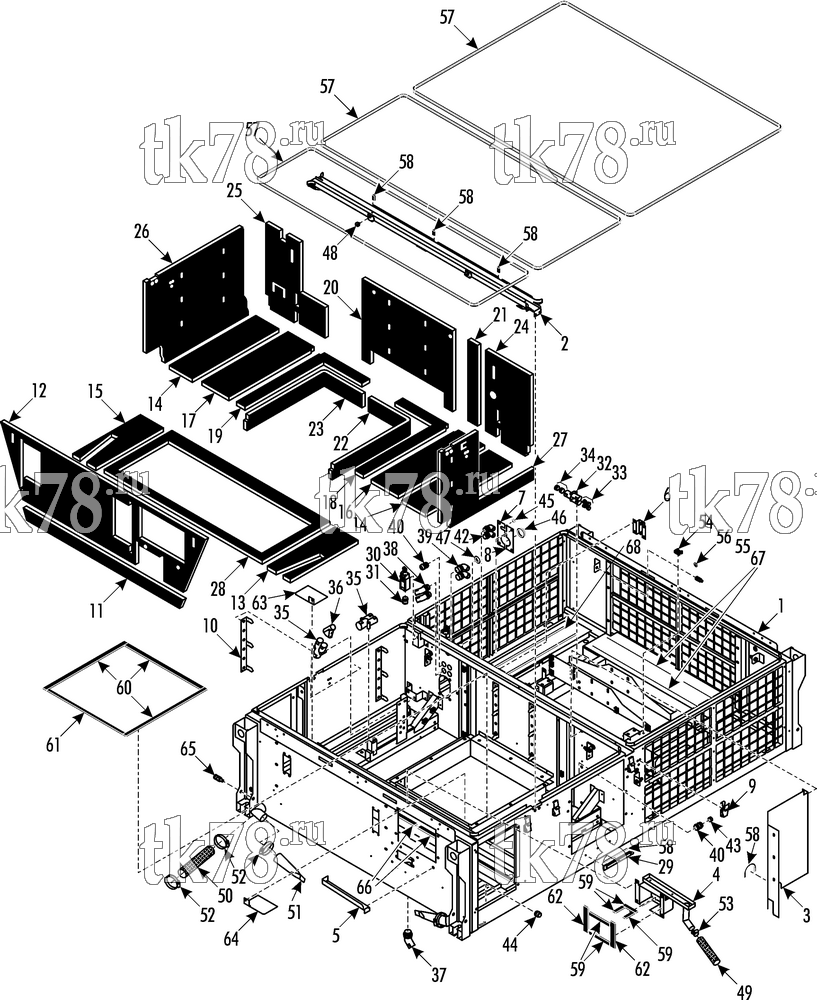

Установкa Thermo King CITADIS 35 kW TTNG схема FRAME – 234B4
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8190 | FRAME | 1 | |
| 2 | 98-8191 | CHANNEL - drain | 1 | |
| 55-6994 | SCREW - channel | 4 | ||
| 51-1830 | WASHER - spring | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-8120 | FLATWASHER (nylon) | 4 | ||
| 55-9814 | NUT - captive, closed | 4 | ||
| 3 | 92-7435 | PLATE | 1 | |
| 55-6994 | SCREW - plate | 6 | ||
| 51-1830 | WASHER - spring | 6 | ||
| 55-8893 | FLATWASHER | 6 | ||
| 55-8120 | FLATWASHER (nylon) | 3 | ||
| 55-9814 | NUT - captive, closed | 3 | ||
| 55-7373 | NUT - captive | 3 | ||
| 4 | 92-7436 | BOX - assy | 1 | |
| 5 | 92-7437 | PAN - fresh air | 1 | |
| 55-7035 | SCREW - box & pan | 4 | ||
| 55-6994 | SCREW - pan | 2 | ||
| 51-1830 | WASHER - spring | 6 | ||
| 55-8893 | FLATWASHER | 6 | ||
| 55-8120 | FLATWASHER (nylon) | 6 | ||
| 55-9814 | NUT - captive, closed | 6 | ||
| 6 | 92-7438 | HOLDER - assy | 1 | |
| 7 | 92-7439 | PLATE | 1 | |
| 8 | 92-7440 | PLATE | 1 | |
| 55-6994 | SCREW - holder & assy | 6 | ||
| 51-1830 | WASHER - spring | 6 | ||
| 55-8893 | FLATWASHER | 6 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-9814 | NUT - captive, closed | 6 | ||
| 9 | 92-555 | LATCH | 8 | |
| 55-7663 | SCREW - latch | 24 | ||
| 51-1831 | WASHER - spring | 24 | ||
| 51-1181 | NUT - captive, closed | 18 | ||
| 55-7866 | NUT - captive | 6 | ||
| 10 | 92-3375 | BRACKET - insulation | 5 | |
| 11 | 92-7441 | INSULATION | 1 | |
| 12 | 92-7442 | INSULATION | 1 | |
| 13 | 92-7443 | INSULATION | 1 | |
| 14 | 92-7444 | INSULATION | 2 | |
| 15 | 92-7445 | INSULATION | 1 | |
| 16 | 92-7446 | INSULATION | 1 | |
| 17 | 92-7447 | INSULATION | 1 | |
| 18 | 92-7448 | INSULATION | 1 | |
| 19 | 92-7449 | INSULATION | 1 | |
| 20 | 92-7450 | INSULATION | 1 | |
| 21 | 92-7451 | INSULATION | 1 | |
| 22 | 92-7452 | INSULATION | 1 | |
| 23 | 92-7453 | INSULATION | 1 | |
| 24 | 92-7454 | INSULATION | 1 | |
| 25 | 92-7455 | INSULATION | 1 | |
| 26 | 92-7456 | INSULATION | 1 | |
| 27 | 92-7457 | INSULATION | 1 | |
| 28 | 92-7458 | INSULATION | 1 | |
| 29 | 92-7459 | HOLDER | 1 | |
| 55-3628 | RIVET - holder | 3 | ||
| 30 | 41-3917 | SWITCH - limit | 2 | |
| 51-902 | SCREW - switch | 4 | ||
| 51-1831 | WASHER - spring | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 31 | 55-9555 | BUSHING - cable | 2 | |
| 32 | 41-5497 | COUPLER - 3 way | 1 | |
| 55-8316 | SCREW - coupler | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-9837 | NUT - captive | 2 | ||
| 33 | 41-8133 | INSERT - seal | 4 | |
| 34 | 41-7977 | INSERT - seal | 2 | |
| 35 | 92-7461 | COUPLER - 3 way | 1 | |
| 55-7027 | SCREW - coupler | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 55-9837 | NUT - captive | 4 | ||
| 36 | 92-7462 | COUPLER - 3 way | 1 | |
| 37 | 51-837 | BUSHING | 1 | |
| 51-354 | WASHER - sealing | 1 | ||
| 55-9560 | LOCKNUT | 1 | ||
| 38 | 51-709 | BUSHING - cable | 2 | |
| 39 | 51-1401 | BUSHING - cable | 2 | |
| 41-5619 | WASHER - sealing | 2 | ||
| 40 | 51-1400 | BUSHING - cable | 2 | |
| 55-9711 | LOCKNUT | 2 | ||
| 42 | 55-9989 | BUSHING - cable | 2 | |
| 51-691 | WASHER - sealing | 2 | ||
| 55-9559 | LOCKNUT | 2 | ||
| 43 | 41-6671 | SEALING - bushing | 1 | |
| 44 | 55-9992 | BUSHING - temperature sensor | 1 | |
| 55-9998 | LOCKNUT | 1 | ||
| 45 | 33-1055 | GROMMET (0.375 id) | 1 | |
| 46 | 33-994 | GROMMET (1.375 id) | 1 | |
| 47 | 33-572 | GROMMET (0.750 id) | 1 | |
| 48 | 51-1669 | CLIP - plastic | 2 | |
| 49 | 61-4608 | HOSE | 1 | |
| 50 | 61-4611 | HOSE | 2 | |
| 51 | 61-4612 | VALVE - check | 2 | |
| 52 | 55-4979 | CLAMP | 6 | |
| 53 | 55-6726 | CLAMP | 1 | |
| 54 | 99-3281 | MOUNT - bandwrap | 33 | |
| 55-5130 | RIVET - mount | 33 | ||
| 56-2330 | BANDWRAP | 33 | ||
| 55 | 55-6987 | SCREW - ground | 6 | |
| 55-6988 | FLATWASHER | 12 | ||
| 55-7066 | LOCKWASHER | 6 | ||
| 51-1211 | NUT (jam) | 6 | ||
| 55-7825 | NUT | 6 | ||
| 56 | 92-783 | LABEL - ground | 7 | |
| 57 | 92-146 | RUBBER - profile | A/R | |
| 58 | 92-3279 | RUBBER - profile | A/R | |
| 59 | 33-3540 | STRIP - neoprene | A/R | |
| 60 | 33-2975 | STRIP - neoprene | A/R | |
| 61 | 99-4976 | STRIP - neoprene | A/R | |
| 62 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 63 | 92-7707 | PLATE | 1 | |
| 64 | 92-7708 | PLATE | 1 | |
| 55-9253 | SCREW - plate | 2 | ||
| 51-1831 | WASHER - spring | 2 | ||
| 51-1539 | FLATWASHER | 2 | ||
| 55-2754 | WASHER (nylon) | 2 | ||
| 51-1181 | NUT - captive, closed | 2 | ||
| 65 | 55-7358 | SCREW - ground | 1 | |
| 55-6999 | FLATWASHER | 2 | ||
| 55-8537 | LOCKWASHER | 1 | ||
| 55-7348 | NUT | 2 | ||
| 66 | 99-8562 | STRIP - neoprene | 2 | |
| 67 | 99-7246 | STRIP - neoprene | 2 | |
| 68 | 92-5163 | STRIP - neoprene | 4 |
