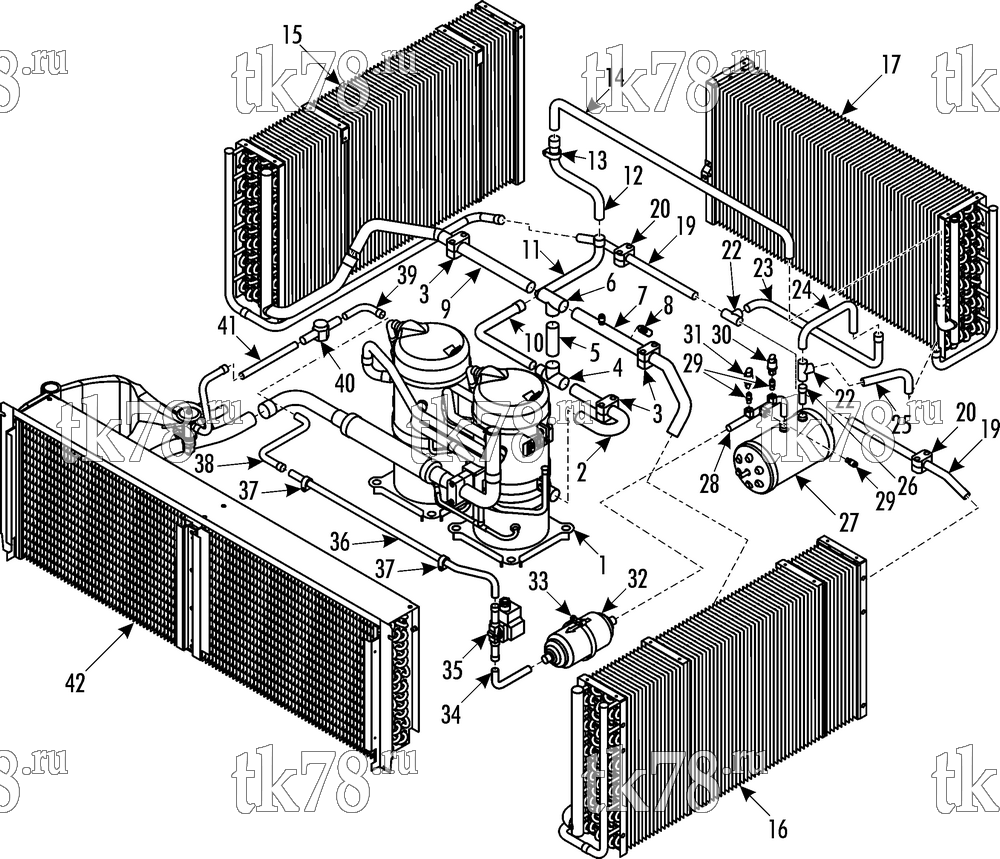

Установкa Thermo King CITADIS 35 kW TTNG схема REFRIGERANT CIRCUIT – 234B0
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see 234B5) | 1 | |
| 2 | 61-4630 | TUBE | 1 | |
| 3 | 91-2473 | CLAMP - tube | 6 | |
| 305-1652 | SCREW - clamp | 6 | ||
| 55-6995 | FLATWASHER | 6 | ||
| 55-9837 | NUT - captive | 6 | ||
| 4 | 51-1835 | TEE (1-1/8 x 7/8 x 1-1/8) | 1 | |
| 5 | 61-4631 | TUBE | 1 | |
| 6 | 55-5616 | TEE (1-1/8 x 1-1/8 x 1-1/8) | 1 | |
| 7 | 61-4632 | TUBE - assy | 1 | |
| 61-549 | FITTING - saddle | 1 | ||
| 66-9842 | VALVE | 1 | ||
| 8 | 66-7392 | VALVE - relief, complete | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 9 | 61-4633 | TUBE | 1 | |
| 10 | 61-4634 | TUBE | 1 | |
| 11 | 61-4635 | TUBE | 1 | |
| 12 | 61-4636 | TUBE | 1 | |
| 13 | 55-7013 | CLAMP - tube | 1 | |
| 55-7027 | SCREW - clamp | 1 | ||
| 51-1830 | WASHER - spring | 1 | ||
| 55-8893 | FLATWASHER | 1 | ||
| 14 | 61-4637 | TUBE | 1 | |
| 15 | NSS | CONDENSER - left (see 234B6) | 1 | |
| 16 | NSS | CONDENSER - right (see 234B7) | 1 | |
| 17 | NSS | CONDENSER - back (see 234B8) | 1 | |
| 19 | 61-4748 | TUBE | 2 | |
| 20 | 55-9246 | CLAMP - tube | 4 | |
| 51-1836 | SCREW - clamp | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 22 | 55-5401 | TEE (3/4 x 3/4 x 3/4) | 2 | |
| 23 | 61-4749 | TUBE | 1 | |
| 24 | 61-4750 | TUBE | 1 | |
| 25 | 61-4643 | TUBE | 1 | |
| 26 | 61-4644 | TUBE | 1 | |
| 27 | 67-2093 | TANK - receiver | 1 | |
| 55-2640 | NUT - receiver | 2 | ||
| 51-1834 | WASHER - spring | 2 | ||
| 51-958 | FLATWASHER | 2 | ||
| 55-4931 | WASHER | 2 | ||
| 28 | 61-4645 | TUBE - assy | 1 | |
| 66-4139 | FITTING - saddle | 3 | ||
| 29 | 11-2886 | VALVE - assy | 3 | |
| 55-7213 | BODY - valve | 1 | ||
| 11-7777 | VALVE | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 30 | 304-1921 | SWITCH - mod (service set - connector incl.) | 1 | |
| 31 | 41-6318 | SWITCH - hpco (service set - connector incl.) | 1 | |
| 32 | 306-1806 | DEHYDRATOR (filter-drier) | 1 | |
| 33 | 55-7799 | CLAMP - dehydrator | 1 | |
| 34 | 61-4646 | TUBE | 1 | |
| 35 | 66-9353 | VALVE - solenoid | 1 | |
| 51-1305 | SCREW - valve | 1 | ||
| 51-1539 | FLATWASHER | 1 | ||
| 51-1831 | WASHER - spring | 1 | ||
| 55-7698 | NUT | 1 | ||
| 36 | 61-4647 | TUBE | 1 | |
| 37 | 91-758 | CLAMP - tube | 2 | |
| 55-8316 | SCREW - clamp | 2 | ||
| 51-1830 | WASHER - spring | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-9814 | NUT - captive, closed | 2 | ||
| 38 | 61-4648 | TUBE | 1 | |
| 39 | 61-4649 | TUBE | 1 | |
| 40 | 66-9354 | INDICATOR - liquid (sight glass) | 1 | |
| 41 | 61-4650 | TUBE | 1 | |
| 42 | NSS | EVAPORATOR (see 234B9) | 1 |
