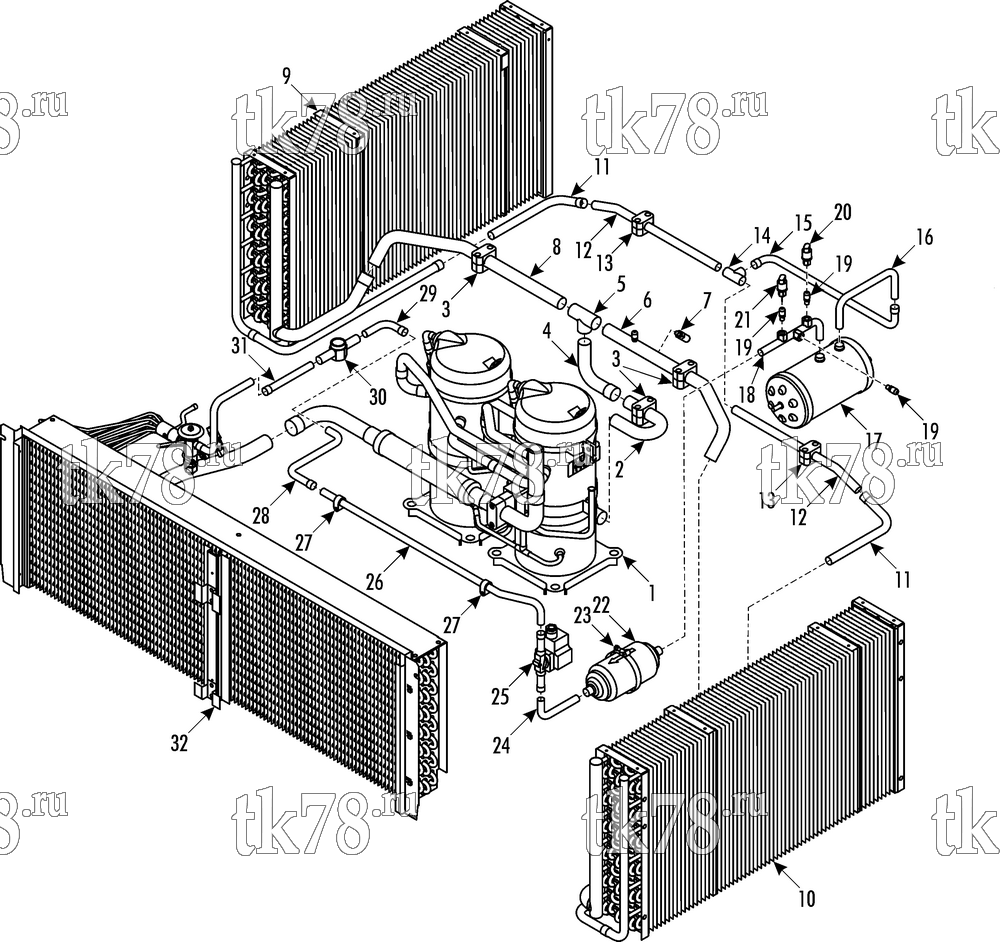

Установкa Thermo King CITADIS 26 kW TOULOUSE схема REFRIGERANT CIRCUIT – 234H7
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see 234H3) | 1 | |
| 2 | 61-4792 | TUBE | 1 | |
| 3 | 91-2473 | CLAMP - tube | 6 | |
| 305-1652 | SCREW - clamp | 6 | ||
| 55-6995 | FLATWASHER | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-9837 | NUT - captive | 6 | ||
| 4 | 61-4793 | TUBE | 1 | |
| 5 | 55-5616 | TEE (1-1/8 x 1-1/8 x 1-1/8) | 1 | |
| 6 | 61-4632 | TUBE - assy | 1 | |
| 61-549 | FITTING - saddle | 1 | ||
| 66-9842 | VALVE | 1 | ||
| 7 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 8 | 61-4633 | TUBE | 1 | |
| 9 | NSS | CONDENSER - left (see 234H4) | 1 | |
| 10 | NSS | CONDENSER - right (see 234H5) | 1 | |
| 12 | 61-4748 | TUBE | 2 | |
| 13 | 55-9246 | CLAMP - tube | 4 | |
| 305-1652 | SCREW - clamp | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-9837 | NUT - captive | 4 | ||
| 14 | 55-5401 | TEE (3/4 x 3/4 x 3/4) | 1 | |
| 15 | 61-4794 | TUBE | 1 | |
| 16 | 61-4795 | TUBE | 1 | |
| 17 | 67-2093 | RECEIVER | 1 | |
| 55-2640 | NUT - receiver | 2 | ||
| 51-2025 | LOCKWASHER | 2 | ||
| 51-958 | FLATWASHER | 2 | ||
| 55-4931 | WASHER | 2 | ||
| 18 | 61-4645 | TUBE - assy | 1 | |
| 66-4139 | FITTING - saddle | 3 | ||
| 19 | 11-2886 | VALVE - assy | 3 | |
| 55-7213 | BODY - valve | 1 | ||
| 11-7777 | VALVE | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 20 | 304-1921 | SWITCH - mod | 1 | |
| 21 | 41-6318 | SWITCH - hpco | 1 | |
| 22 | 306-1806 | DEHYDRATOR | 1 | |
| 23 | 55-7799 | CLAMP - dehydrator | 1 | |
| 24 | 61-4646 | TUBE | 1 | |
| 25 | 66-9353 | VALVE - solenoid | 1 | |
| 51-902 | SCREW - valve | 1 | ||
| 51-1539 | FLATWASHER | 1 | ||
| 51-1451 | LOCKWASHER | 1 | ||
| 55-7665 | NUT | 1 | ||
| 26 | 61-4647 | TUBE | 1 | |
| 27 | 91-758 | CLAMP - tube | 2 | |
| 55-8316 | SCREW - clamp | 2 | ||
| 55-9190 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-9814 | NUT - captive, closed | 2 | ||
| 28 | 61-4648 | TUBE | 1 | |
| 29 | 61-4649 | TUBE | 1 | |
| 30 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 31 | 61-4650 | TUBE | 1 | |
| 32 | NSS | EVAPORATOR (see 234H6) | 1 |
