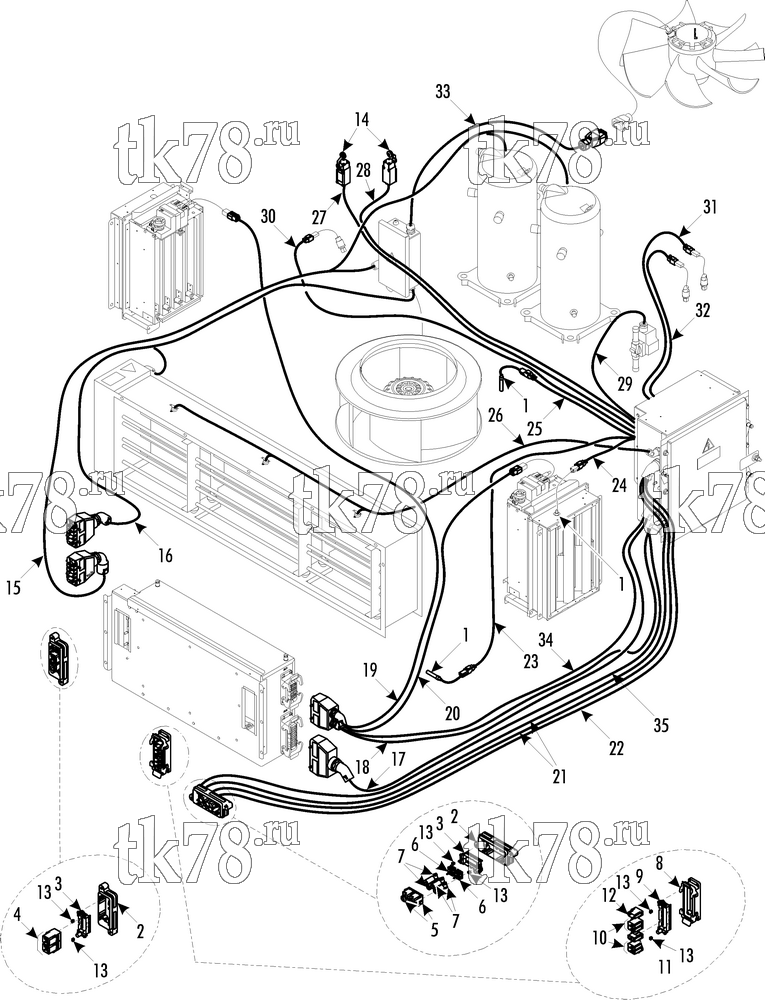

Установкa Thermo King CITADIS 26 kW ROTTERDAM схема ELECTRICAL COMPONENTS – 237A3
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-974 | SENSOR - temperature | 3 | |
|
40-974 OEM | Датчик температуры к-т, калиброванный | 25 620 ₽ |
|
|
10-40-974 | Датчик температуры к-т, калиброванный | 4 660 ₽ |
|
| 2 | 41-8669 | HOUSING - connector | 2 | |
| 55-9854 | SCREW - connector | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-9814 | NUT - captive, closed | 8 | ||
| 3 | 41-5504 | FRAME - fixing | 2 | |
| 4 | 41-9107 | COVER - connector, male | 2 | |
| 5 | 41-5297 | COVER - connector, male | 2 | |
| 6 | 41-5298 | BRACKET | 2 | |
| 7 | 41-7539 | CONTACT - male | 4 | |
| 8 | 41-8671 | HOOD - connector, male | 1 | |
| 55-7696 | SCREW - connector | 4 | ||
| 51-1451 | LOCKWASHER | 4 | ||
| 51-1181 | NUT - captive, closed | 4 | ||
| 9 | 41-6009 | FIXING FRAME | 1 | |
| 10 | 41-5300 | COVER - connector, male | 4 | |
| 11 | 41-7147 | COVER - connector, male | 1 | |
| 12 | 41-7516 | COVER - connector, male | 1 | |
| 13 | 41-7517 | INSERT - fixing | 6 | |
| 14 | 41-3917 | SWITCH - limit | 2 | |
| 15 | 41-8770 | HARNESS - power, compressors & fan (for connectors see 234G8) | 1 | |
| 16 | 41-8673 | HARNESS - power, blower & heater (for connectors see 234G8) | 1 | |
| 17 | 41-8674 | HARNESS - controller box x electro box connection (for connectors see 234G8) | 1 | |
| 18 | 41-8675 | HARNESS - analogue output | 1 | |
| 19 | 41-8677 | HARNESS - electro box x fresh air damper (for connectors see 234G8) | 1 | |
| 20 | 41-8771 | HARNESS - electro box x fresh air damper (for connectors see 234G8) | 1 | |
| 21 | 41-8678 | HARNESS - can | 2 | |
| 22 | 41-8679 | HARNESS - ethernet | 1 | |
| 23 | 41-8680 | HARNESS - temperature sensor, RAS (for connectors see 234G8) | 1 | |
| 24 | 41-8681 | HARNESS - temperature sensor, FAS (for connectors see 234G8) | 1 | |
| 25 | 41-8682 | HARNESS - temperature sensor, DAS (for connectors see 234G8) | 1 | |
| 26 | 41-8683 | HARNESS - heater switches | 1 | |
| 27 | 41-8684 | HARNESS - limit switch | 1 | |
| 28 | 41-8685 | HARNESS - limit switch | 1 | |
| 29 | 41-8686 | HARNESS - solenoid valve | 1 | |
| 30 | 41-8687 | HARNESS - pressure switch (for connectors see 234G8) | 1 | |
| 31 | 41-8688 | HARNESS - pressure switch (for connectors see 234G8) | 1 | |
| 32 | 41-8689 | HARNESS - pressure switch (for connectors see 234G8) | 1 | |
| 33 | 41-8690 | HARNESS - fan connection (for connectors see 234G8) | 1 | |
| 34 | 41-8772 | HARNESS - W5 | 1 | |
| 35 | 41-8706 | HARNESS - WS4 | 1 |
