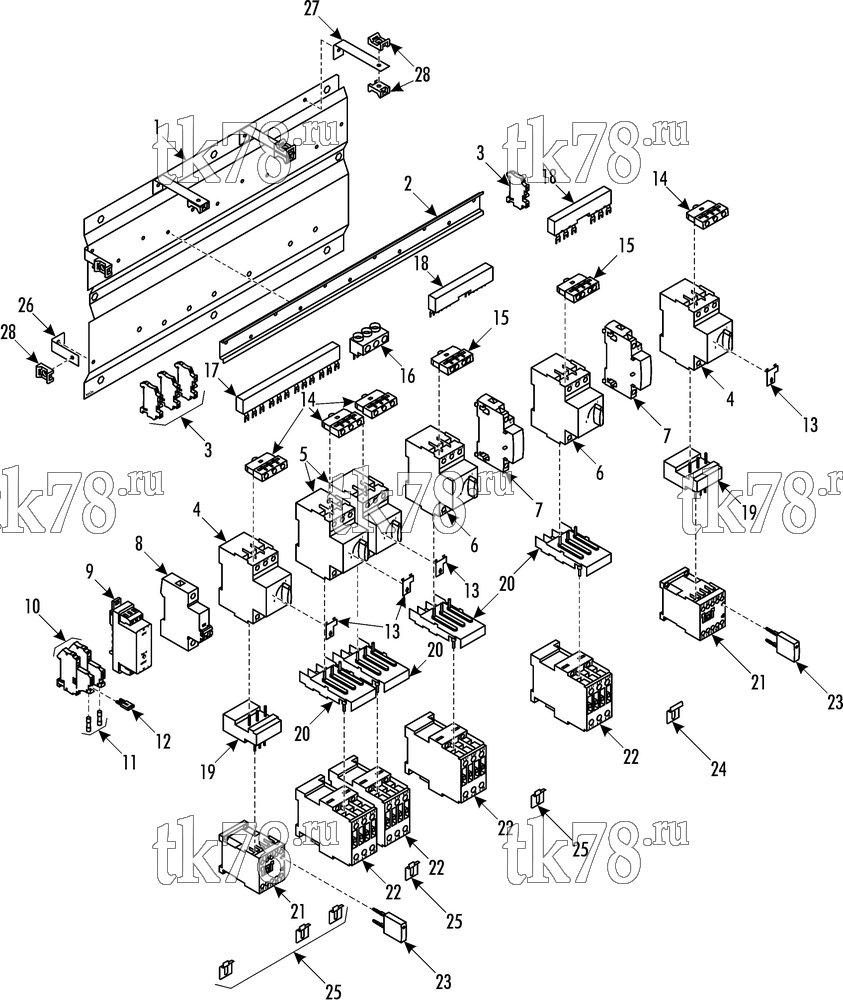

Установкa Thermo King CITADIS 26 kW ROTTERDAM схема CONTACTOR & CIRCUIT BREAKER GROUP – 237A2
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7516 | SHEET - mounting | 1 | |
| 55-6994 | SCREW - sheet | 8 | ||
| 55-9190 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 2 | 92-7517 | RAIL - DIN | 1 | |
| 51-2030 | RIVET - rail | 11 | ||
| 3 | 41-8639 | CLAMP | 4 | |
| 4 | 41-5565 | BREAKER - circuit (2.2-3.2 amp) | 2 | |
| 5 | 41-2936 | BREAKER - circuit (11 -16 amp) | 2 | |
| 6 | 41-2933 | BREAKER - circuit (20 amp) | 2 | |
| 7 | 41-3811 | RELAY - shunt-release | 2 | |
| 8 | 41-5602 | BREAKER - circuit (6 amp) | 1 | |
| 9 | 41-5727 | ARRESTER - overvoltage (24 vdc) | 1 | |
| 10 | 41-8667 | TERMINAL - fuse | 2 | |
| 11 | 41-4180 | FUSE | 2 | |
| 12 | 41-8668 | BRIDGE - plug-in (2 pos) | 1 | |
| 13 | 41-4279 | COVER - scale, sealable | 4 | |
| 41-9122 | WIRE - sealing | A/R | ||
| 41-9123 | SEAL - plastic | 4 | ||
| 14 | 41-2931 | BLOCK - contact, auxiliary | 4 | |
| 15 | 41-5266 | BLOCK - contact, auxiliary | 2 | |
| 16 | 41-3891 | TERMINAL - input | 1 | |
| 17 | 41-3801 | BUSBAR | 1 | |
| 18 | 41-4684 | BUSBAR | 2 | |
| 19 | 41-2944 | ELEMENT - coupling | 2 | |
| 20 | 41-6115 | ELEMENT - coupling | 4 | |
| 21 | 41-3887 | CONTACTOR (2.2 kW) | 2 | |
| 22 | 41-4727 | CONTACTOR (7.5 kW) | 4 | |
| 23 | 41-3812 | MODULE - suppressor | 2 | |
| 24 | 92-3615 | BRACKET | 1 | |
| 25 | 92-3616 | BRACKET | 5 | |
| 55-7663 | SCREW - bracket | 6 | ||
| 51-1451 | LOCKWASHER | 6 | ||
| 55-7866 | NUT - captive | 6 | ||
| 26 | 92-7518 | BRACKET | 2 | |
| 27 | 92-7731 | BRACKET | 3 | |
| 51-2030 | RIVET - bracket | 5 | ||
| 28 | 99-3281 | MOUNT - bandwrap | 7 | |
| 51-2030 | RIVET - mount | 7 | ||
| 56-2330 | BANDWRAP | 7 |
