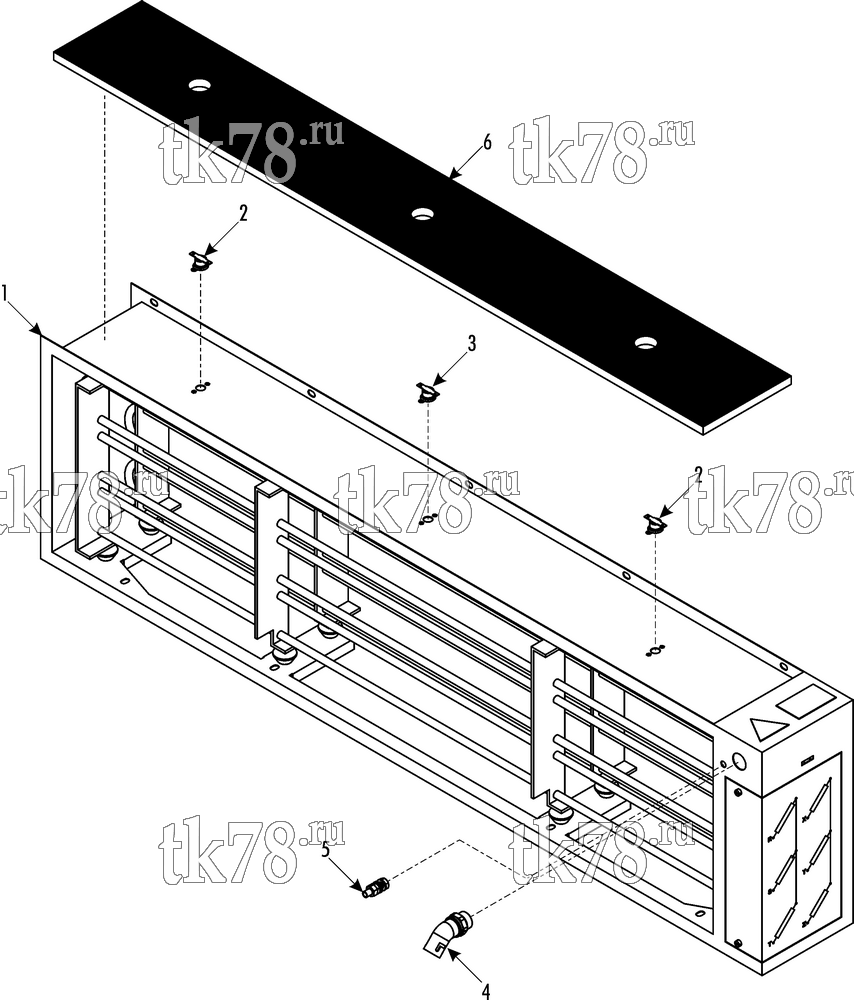

Установкa Thermo King CITADIS 26 kW ROTTERDAM схема HEATER – 234H8
Обновление от: 3/23/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2546 | HEATER | 1 | |
| 55-6994 | SCREW - heater | 9 | ||
| 55-9190 | LOCKWASHER | 9 | ||
| 55-8893 | FLATWASHER | 9 | ||
| 2 | 41-5937 | SWITCH - temperature (70 deg C) | 2 | |
| 3 | 41-3790 | SWITCH - temperature (140 deg C) | 1 | |
| 55-9195 | SCREW - switch | 6 | ||
| 55-7750 | LOCKWASHER | 6 | ||
| 4 | 51-709 | BUSHING - cable | 1 | |
| 41-5619 | WASHER - sealing | 1 | ||
| 55-9711 | LOCKNUT - bushing | 1 | ||
| 5 | 55-6987 | SCREW - ground | 1 | |
| 55-6988 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 51-1211 | NUT (jam) | 1 | ||
| 55-7825 | NUT | 1 | ||
| 6 | 92-7483 | INSULATION | 1 |
