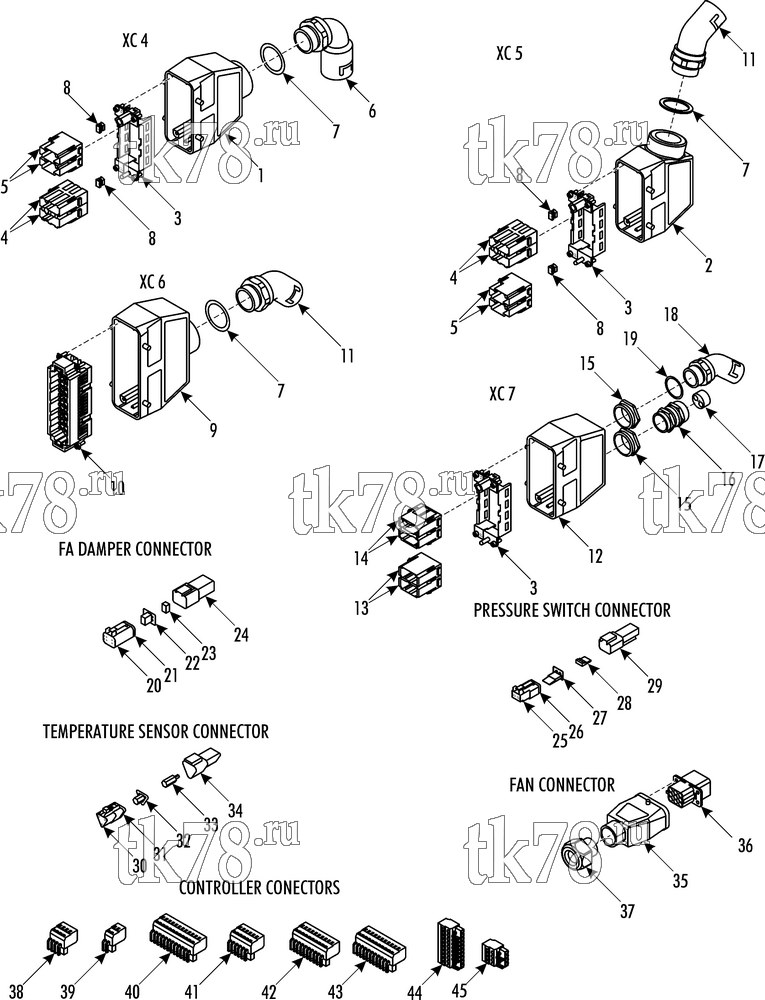

Установкa Thermo King CITADIS 26 kW ROTTERDAM схема CONNECTORS – 234G8
Обновление от: 5/21/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5289 | HOUSING - connector | 1 | |
| 2 | 41-8874 | HOUSING - connector | 1 | |
| 3 | 41-5550 | FRAME - fixing | 3 | |
| 4 | 41-5505 | COVER - connector, male | 4 | |
| 5 | 41-7516 | COVER - connector, male | 4 | |
| 6 | 41-8134 | BUSHING | 1 | |
| 7 | 51-354 | WASHER - sealing | 3 | |
| 8 | 41-7517 | INSERT - fixing | 4 | |
| 9 | 41-8692 | HOUSING - connector | 1 | |
| 10 | 41-7519 | INSERT - contact, male | 1 | |
| 11 | 51-837 | BUSHING | 2 | |
| 12 | 41-8693 | HOUSING - connector | 1 | |
| 13 | 41-5300 | COVER - connector, male | 2 | |
| 14 | 41-7147 | COVER - connector, male | 2 | |
| 15 | 51-1009 | BUSHING | 2 | |
| 16 | 51-1400 | BUSHING | 1 | |
| 17 | 41-6682 | SEALING - bushing | 1 | |
| 18 | 51-709 | BUSHING | 1 | |
| 19 | 41-5619 | WASHER - sealing | 1 | |
| 20 | 44-8935 | PLUG (4-pin) | 1 | |
| 21 | 33-2394 | SEAL | 1 | |
| 22 | 44-8936 | WEDGE | 1 | |
| 23 | 44-8918 | WEDGE | 1 | |
| 24 | 44-8915 | RECEPTACLE (4-pin) | 1 | |
| 25 | 44-9585 | PLUG (2-pin) | 1 | |
| 26 | 33-2392 | SEAL | 1 | |
| 27 | 44-9586 | WEDGE | 1 | |
| 28 | 44-9590 | WEDGE | 1 | |
| 29 | 44-9589 | RECEPTACLE (2-pin) | 1 | |
| 30 | 44-9631 | PLUG (3-pin) | 1 | |
| 31 | 33-2393 | SEAL | 1 | |
| 32 | 44-9536 | WEDGE | 1 | |
| 33 | 44-9545 | WEDGE | 1 | |
| 34 | 44-9544 | RECEPTACLE (3-pin) | 1 | |
| 35 | 41-8875 | HOUSING - connector | 1 | |
| 36 | 41-8876 | INSERT - contact, female | 1 | |
| 37 | 41-8877 | PROTECTION - cable | 1 | |
| 38 | 41-3929 | CONNECTOR - wago | 2 | |
| 39 | 41-3928 | CONNECTOR - wago | 2 | |
| 40 | 41-3933 | CONNECTOR - wago | 1 | |
| 41 | 41-3930 | CONNECTOR - wago | 5 | |
| 42 | 41-3931 | CONNECTOR - wago | 1 | |
| 43 | 41-3932 | CONNECTOR - wago | 1 | |
| 44 | 41-3822 | CONNECTOR (10-pin) | 1 | |
| 45 | 41-3935 | CONNECTOR - 4-pin | 1 |
