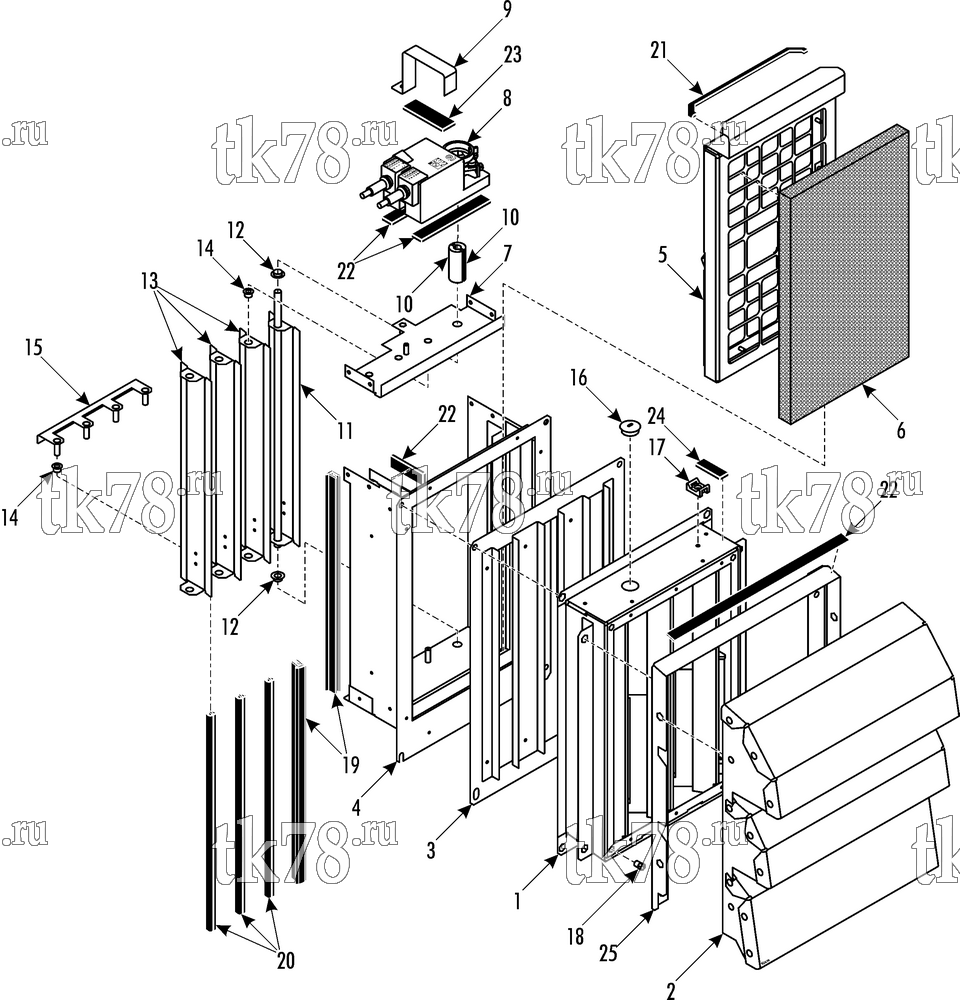

Установкa Thermo King CITADIS 26 kW RABAT схема FRESH AIR LEFT – 234G4
Обновление от: 11/2/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7725 | FRAME - water eliminator | 1 | |
| 2 | 92-7717 | SHIELD - water eliminator | 1 | |
| 55-6994 | SCREW - frame & cover (20 mm length) | 4 | ||
| 55-9190 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 3 | 92-7718 | GRID - water eliminator | 1 | |
| 4 | 92-7727 | FRAME - flaps & filter | 1 | |
| 51-1639 | STUD - self-clinch (M6x20) | 3 | ||
| 55-6994 | SCREW - frame | 3 | ||
| 51-838 | SCREW - frame (120 mm length) | 1 | ||
| 55-9190 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 5 | 98-8239 | FRAME - filter | 1 | |
| 6 | 92-8487 | FILTER | 1 | |
| 7 | 92-7728 | BASE - motor | 1 | |
| 51-1639 | STUD - self-clinch (M6x20) | 3 | ||
| 55-2715 | RIVET - base | 4 | ||
| 8 | 41-5563 | MOTOR | 1 | |
| 9 | 92-7721 | HOLDER - motor | 1 | |
| 55-7340 | SCREW - holder | 1 | ||
| 51-130 | LOCKWASHER | 1 | ||
| 51-1610 | FLATWASHER | 1 | ||
| 10 | 51-702 | SHAFT - cantering | 2 | |
| 11 | 92-7729 | BLADE - master | 1 | |
| 12 | 51-701 | SHOULDER (nylon) | 2 | |
| 13 | 92-7730 | BLADE | 3 | |
| 14 | 51-841 | SHOULDER (nylon) | 10 | |
| 15 | 92-7724 | ROD | 1 | |
| 55-7042 | NUT - rod | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 16 | 51-1402 | PLUG | 1 | |
| 51-1403 | NUT - plug | 1 | ||
| 17 | 99-3281 | MOUNT - bandwrap | 1 | |
| 51-2030 | RIVET - mount | 1 | ||
| 56-2330 | BANDWRAP | 1 | ||
| 18 | 55-8375 | NUT - captive (for pre-filter) | 4 | |
| 19 | 92-146 | RUBBER - profile | A/R | |
| 20 | 92-4386 | RUBBER - profile | A/R | |
| 21 | 92-3279 | RUBBER - profile | A/R | |
| 22 | 33-3540 | STRIP - neoprene | A/R | |
| 23 | 33-2975 | STRIP - neoprene | A/R | |
| 24 | 99-4976 | STRIP - neoprene | A/R | |
| 25 | 92-8005 | FRAME - shield | 1 | |
| 55-6994 | SCREW - frame (20 mm Length) | 2 | ||
| 55-7035 | SCREW - frame (25 mm Length) | 2 | ||
| 55-9190 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-8120 | FLATWASHER (nylon) | 4 | ||
| 55-7373 | NUT | 4 |
