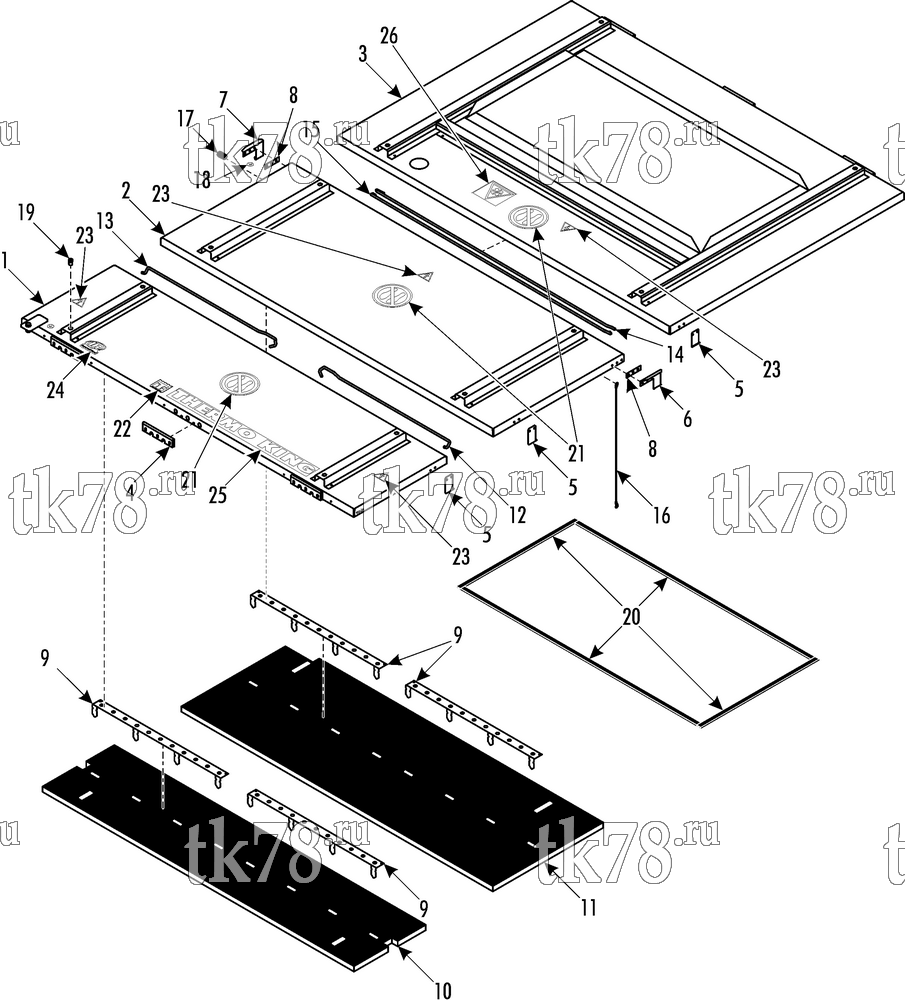

Установкa Thermo King CITADIS 26 kW RABAT схема COVER – 234B3
Обновление от: 5/21/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8187 | COVER - weldment | 1 | |
| 2 | 98-8188 | COVER - weldment | 1 | |
| 3 | 98-8189 | COVER - weldment | 1 | |
| 4 | 91-7098 | HINGE - cover | 6 | |
| 55-7340 | SCREW - hinge | 30 | ||
| 55-7089 | FLATWASHER | 30 | ||
| 51-1610 | FLATWASHER | 30 | ||
| 51-130 | LOCKWASHER | 30 | ||
| 55-7034 | NUT - hex stop | 30 | ||
| 5 | 92-7423 | KEEPER | 6 | |
| 6 | 92-7425 | KEEPER | 1 | |
| 7 | 92-7426 | KEEPER | 1 | |
| 51-1183 | RIVET - keeper | 18 | ||
| 8 | 92-7427 | WASHER - distance | 2 | |
| 9 | 33-3290 | BRACKET - insulation | 4 | |
| 10 | 92-7428 | INSULATION | 1 | |
| 11 | 92-7429 | INSULATION | 1 | |
| 12 | 92-7623 | SUPPORT - cover | 1 | |
| 13 | 92-7624 | SUPPORT - cover | 1 | |
| 14 | 92-7432 | SUPPORT - cover | 1 | |
| 15 | 92-7433 | SUPPORT - cover | 1 | |
| 51-809 | LOCKWASHER | 4 | ||
| 83-258 | GROMMET (0.250 id) | 4 | ||
| 16 | 92-7434 | CORD - cover | 2 | |
| 55-7340 | SCREW - cord | 2 | ||
| 55-7033 | FLATWASHER | 2 | ||
| 51-1610 | FLATWASHER | 2 | ||
| 51-130 | LOCKWASHER | 2 | ||
| 55-7034 | NUT - hex stop | 2 | ||
| 17 | 55-6987 | SCREW - ground | 5 | |
| 55-6988 | FLATWASHER | 10 | ||
| 55-7066 | LOCKWASHER | 5 | ||
| 51-1211 | NUT (jam) | 5 | ||
| 55-7825 | NUT | 5 | ||
| 18 | 92-783 | LABEL - ground | 5 | |
| 19 | 55-8403 | NUT - captive | 12 | |
| 20 | 92-3728 | RUBBER - profile | 2 | |
| 21 | 92-3767 | NAMEPLATE - No Step | 3 | |
| 22 | 91-3247 | NAMEPLATE - TK Logo | 1 | |
| 23 | 99-7834 | NAMEPLATE - Caution High Voltage | 4 | |
| 24 | 92-1773 | NAMEPLATE - IR Logo | 1 | |
| 25 | 99-7029 | NAMEPLATE - Thermo King | 1 | |
| 26 | 99-8506 | NAMEPLATE - Caution, Fan | 1 |
