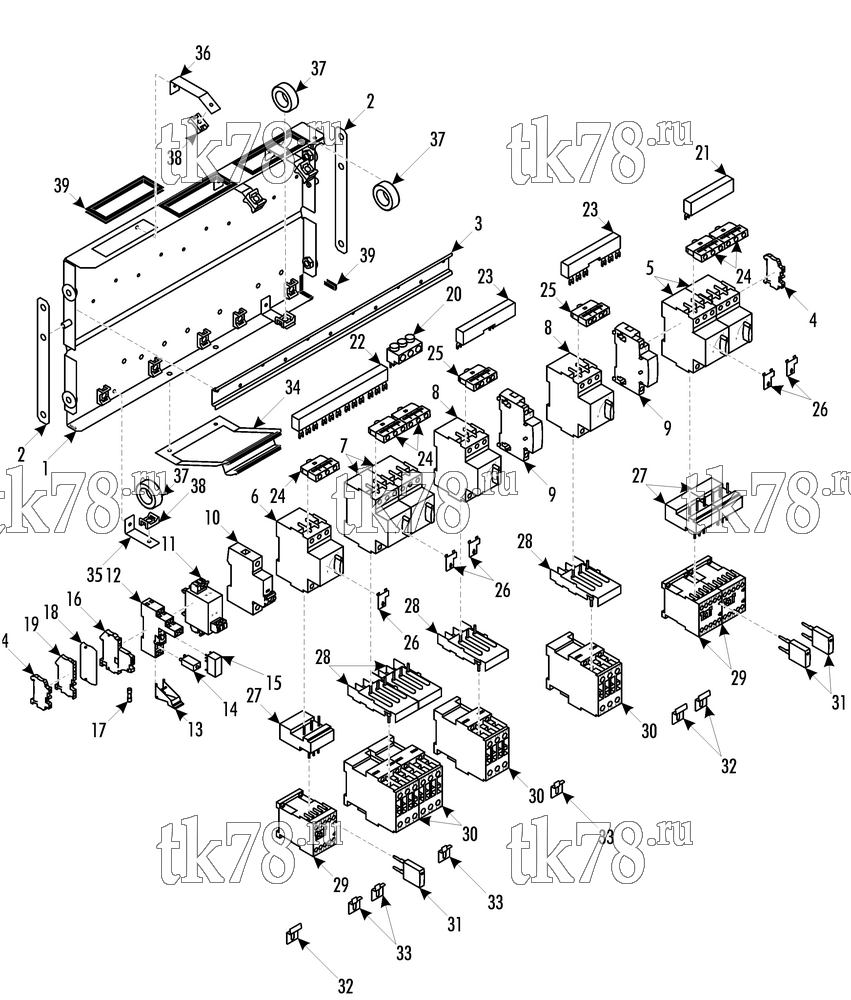

Установкa Thermo King CITADIS 26 kW Le Havre схема SUBPANEL – 253B3
Обновление от: 1/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9218 | SHEET - mounting | 1 | |
| 2 | 51-2142 | WASHER | 2 | |
| 55-6993 | SCREW - sheet | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 3 | 92-9205 | RAIL - din | 1 | |
| 51-2030 | RIVET - rail | 11 | ||
| 4 | 41-8639 | CLAMP | 2 | |
| 5 | 41-5565 | BREAKER - circuit (2.2-3.2 amp) | 2 | |
| 6 | 42-137 | BREAKER - circuit (2.8-4.0 amp) | 1 | |
| 7 | 41-2936 | BREAKER - circuit (11 -16 amp) | 2 | |
| 8 | 41-2933 | BREAKER - circuit (20 amp) | 2 | |
| 9 | 41-3811 | RELAY - shunt-release | 2 | |
| 10 | 41-5602 | BREAKER - circuit (6 amp) | 1 | |
| 11 | 42-138 | ARRESTER - overvoltage | 1 | |
| 12 | 41-6367 | SOCKET - relay | 1 | |
| 13 | 41-6368 | LOCK - socket | 1 | |
| 14 | 41-6369 | DIODE | 1 | |
| 15 | 41-5667 | RELAY | 1 | |
| 16 | 41-8667 | TERMINAL - fuse | 1 | |
| 17 | 41-4180 | FUSE | 1 | |
| 18 | 42-139 | ENDPLATE - terminal | 1 | |
| 19 | 41-8640 | TERMINAL | 1 | |
| 20 | 41-3891 | TERMINAL - input | 1 | |
| 21 | 41-4726 | BUSBAR | 1 | |
| 22 | 41-3801 | BUSBAR | 1 | |
| 23 | 41-4684 | BUSBAR | 2 | |
| 24 | 41-2931 | BLOCK - contact, auxiliary | 5 | |
| 25 | 41-5266 | BLOCK - contact, auxiliary | 2 | |
| 26 | 41-4279 | COVER - scale, sealable | 5 | |
| 41-9123 | SEAL | 5 | ||
| 41-9122 | WIRE - sealing | 5 | ||
| 27 | 41-2944 | ELEMENT - coupling | 3 | |
| 28 | 41-6115 | ELEMENT - coupling | 4 | |
| 29 | 41-3887 | CONTACTOR (2.2 kW) | 3 | |
| 30 | 41-4727 | CONTACTOR (7.5 kW) | 4 | |
| 31 | 41-3812 | MODULE - suppressor | 3 | |
| 32 | 92-3615 | BRACKET | 3 | |
| 33 | 92-3616 | BRACKET | 4 | |
| 55-7663 | SCREW - bracket | 7 | ||
| 51-1451 | WASHER - spring | 7 | ||
| 55-7866 | NUT - captive | 7 | ||
| 34 | 92-9219 | HANDRAIL | 1 | |
| 51-845 | SCREW - handrail | 2 | ||
| 51-1451 | WASHER - spring | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 35 | 92-7518 | BRACKET | 2 | |
| 36 | 92-9206 | BRACKET | 3 | |
| 51-2030 | RIVET - bracket | 5 | ||
| 37 | 42-183 | TRANSFORMER - current, assembly, 35 amp | 3 | |
| 38 | 99-3281 | MOUNT - bandwrap | 13 | |
| 51-2030 | RIVET - mount | 13 | ||
| 56-2330 | BANDWRAP | 13 | ||
| 39 | 92-3279 | RUBBER - profile | A/R |
