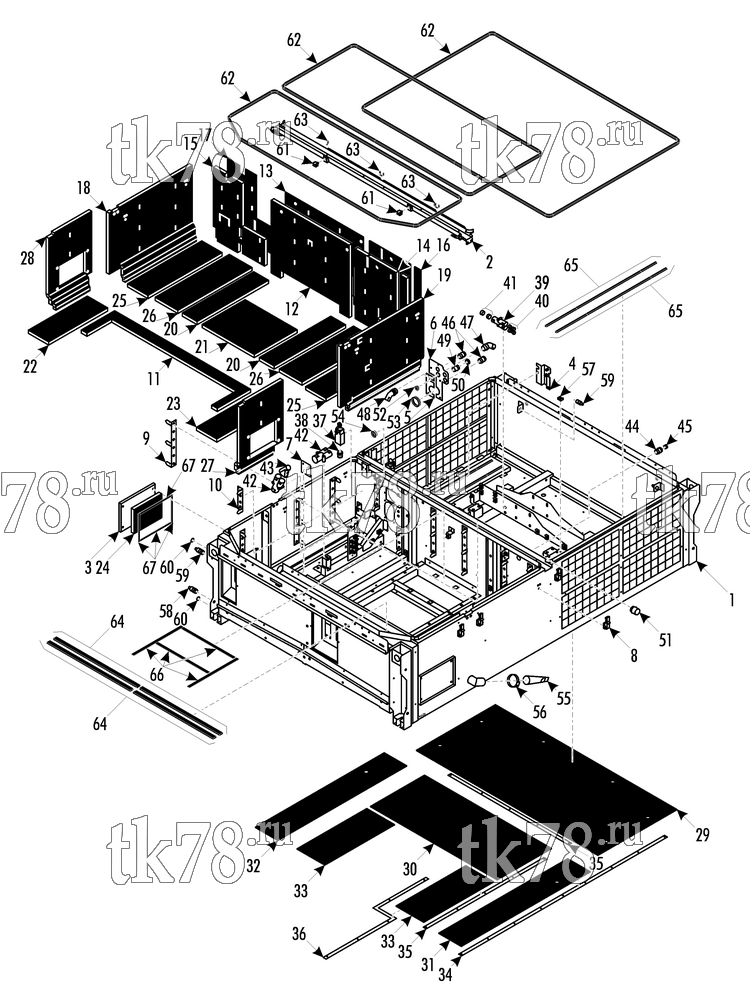

Установкa Thermo King CITADIS 26 kW Le Havre схема FRAME – 253A1
Обновление от: 1/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8784 | FRAME | 1 | |
| 2 | 98-8191 | CHANNEL - drain | 1 | |
| 55-6994 | SCREW - channel | 4 | ||
| 55-9190 | WASHER - spring | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-8120 | FLATWASHER (nylon) | 4 | ||
| 55-9814 | NUT - captive, closed | 4 | ||
| 3 | 92-9154 | COVER - service | 2 | |
| 55-6994 | SCREW - cover | 8 | ||
| 55-9190 | WASHER - spring | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-8120 | FLATWASHER (nylon) | 8 | ||
| 55-9814 | NUT - captive, closed | 8 | ||
| 4 | 92-7438 | HOLDER | 1 | |
| 55-6994 | SCREW - holder | 2 | ||
| 55-9190 | WASHER - spring | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-9814 | NUT - captive, closed | 2 | ||
| 5 | 92-7439 | PLATE | 1 | |
| 6 | 92-8377 | PLATE | 1 | |
| 51-1183 | RIVET - plates | 6 | ||
| 7 | 92-9155 | PLATE | 2 | |
| 51-1320 | RIVET - plate | 4 | ||
| 8 | 92-555 | LATCH | 8 | |
| 55-7663 | SCREW - latch | 24 | ||
| 51-1451 | WASHER - spring | 24 | ||
| 51-1181 | NUT - captive, closed | 18 | ||
| 55-7866 | NUT - captive | 6 | ||
| 9 | 92-3375 | BRACKET - insulation | 8 | |
| 10 | 92-7112 | BRACKET - insulation | 5 | |
| 11 | 92-9156 | INSULATION | 1 | |
| 12 | 92-9157 | INSULATION | 1 | |
| 13 | 92-9158 | INSULATION | 1 | |
| 14 | 92-9159 | INSULATION | 1 | |
| 15 | 92-9160 | INSULATION | 1 | |
| 16 | 92-9161 | INSULATION | 1 | |
| 17 | 92-9162 | INSULATION | 1 | |
| 18 | 92-9163 | INSULATION | 1 | |
| 19 | 92-9164 | INSULATION | 1 | |
| 20 | 92-9165 | INSULATION | 2 | |
| 21 | 92-9166 | INSULATION | 1 | |
| 22 | 92-9167 | INSULATION | 1 | |
| 23 | 92-9168 | INSULATION | 1 | |
| 24 | 92-9169 | INSULATION | 2 | |
| 25 | 92-9170 | INSULATION | 2 | |
| 26 | 92-9171 | INSULATION | 2 | |
| 27 | 92-9172 | INSULATION | 1 | |
| 28 | 92-9173 | INSULATION | 1 | |
| 29 | 92-9174 | INSULATION | 1 | |
| 30 | 92-9175 | INSULATION | 1 | |
| 31 | 92-9176 | INSULATION | 1 | |
| 32 | 92-9177 | INSULATION | 1 | |
| 33 | 92-9178 | INSULATION | 2 | |
| 34 | 92-9179 | PLATE | 2 | |
| 35 | 92-9180 | PLATE | 7 | |
| 36 | 92-9181 | PLATE | 2 | |
| 55-3628 | RIVET - plates | A/R | ||
| 37 | 41-3917 | SWITCH - limit | 1 | |
| 51-902 | SCREW - switch | 2 | ||
| 51-1451 | WASHER - spring | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 38 | 55-9555 | BUSHING - cable | 1 | |
| 39 | 41-5497 | COUPLER - 3 way | 1 | |
| 55-8316 | SCREW - coupler | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-9837 | NUT - captive | 2 | ||
| 40 | 41-8133 | INSERT - seal | 4 | |
| 41 | 41-7977 | INSERT - seal | 2 | |
| 42 | 92-7461 | COUPLER - 3 way | 2 | |
| 55-7027 | SCREW - coupler | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 55-9837 | NUT - captive | 4 | ||
| 43 | 92-7462 | COUPLER - 3 way | 1 | |
| 44 | 51-1400 | BUSHING - cable | 1 | |
| 55-9711 | LOCKNUT | 1 | ||
| 45 | 41-6671 | SEALING - bushing | 1 | |
| 46 | 33-4490 | BUSHING - cable | 2 | |
| 55-9559 | LOCKNUT | 2 | ||
| 47 | 51-709 | BUSHING - cable | 1 | |
| 48 | 51-1401 | BUSHING - cable | 1 | |
| 41-5619 | WASHER - sealing | 1 | ||
| 49 | 51-2028 | BUSHING - cable | 1 | |
| 51-355 | WASHER - sealing | 1 | ||
| 55-9559 | LOCKNUT | 1 | ||
| 50 | 51-2029 | PLUG | 1 | |
| 51 | 55-9554 | BUSHING | 2 | |
| 55-9558 | LOCKNUT | 2 | ||
| 52 | 33-1055 | GROMMET (0.375 id) | 1 | |
| 53 | 33-994 | GROMMET (1.375 id) | 1 | |
| 54 | 33-572 | GROMMET (0.750 id) | 1 | |
| 55 | 61-4612 | VALVE - check | 2 | |
| 56 | 55-4979 | CLAMP | 2 | |
| 57 | 99-3281 | MOUNT - bandwrap | 30 | |
| 51-2030 | RIVET - mount | 30 | ||
| 56-2330 | BANDWRAP | 30 | ||
| 58 | 55-7358 | SCREW - ground | 1 | |
| 55-6999 | FLATWASHER | 2 | ||
| 55-7000 | LOCKWASHER | 1 | ||
| 55-7348 | NUT | 2 | ||
| 59 | 55-6987 | SCREW - ground | 11 | |
| 55-6988 | FLATWASHER | 22 | ||
| 55-7066 | LOCKWASHER | 11 | ||
| 51-1211 | NUT (jam) | 11 | ||
| 55-7825 | NUT | 11 | ||
| 60 | 92-783 | LABEL - ground | 6 | |
| 61 | 51-1669 | CLIP - plastic | 2 | |
| 62 | 92-146 | RUBBER - profile | A/R | |
| 63 | 92-3279 | RUBBER - profile | A/R | |
| 64 | 99-8562 | STRIP - neoprene | A/R | |
| 65 | 92-5163 | STRIP - neoprene | A/R | |
| 66 | 99-7336 | STRIP - neoprene | A/R | |
| 67 | 99-4976 | STRIP - neoprene | A/R |
