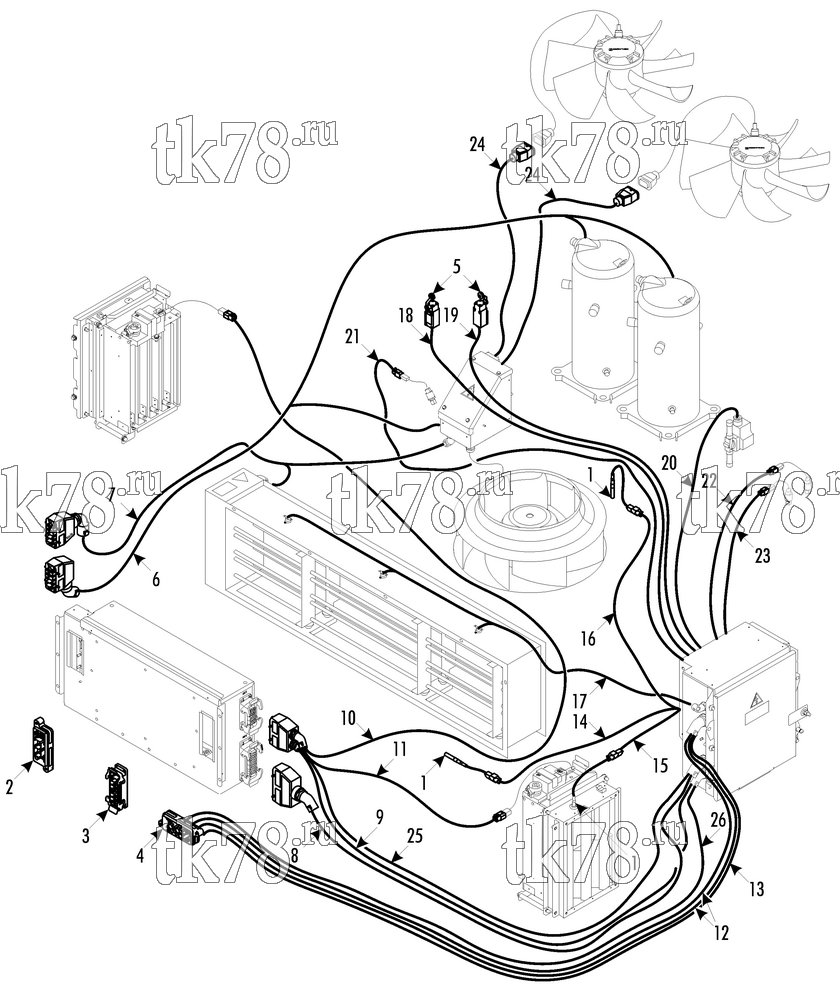

Установкa Thermo King CITADIS 26 kW CONSTANTINE схема ELECTRICAL COMPONENTS – 237F4
Обновление от: 3/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-974 | SENSOR - temperature (service set - connector incl.) | 3 | |
|
40-974 OEM | Датчик температуры к-т, калиброванный | 25 620 ₽ |
|
|
10-40-974 | Датчик температуры к-т, калиброванный | 4 660 ₽ |
|
| 2 | 42-219 | CONNECTOR - XC1, assembly (see 253E0) | 1 | |
| 3 | 42-218 | CONNECTOR - XC3, assembly (see 253E0) | 1 | |
| 4 | 42-217 | CONNECTOR - XC2, assembly (see 253E0) | 1 | |
| 5 | 41-3917 | SWITCH - limit | 2 | |
| 6 | 41-8672 | HARNESS - power, compressors & fans (for connector see 234G8) | 1 | |
| 7 | 41-8673 | HARNESS - power, blower & heater (for connector see 234G8) | 1 | |
| 8 | 41-8674 | HARNESS - controller x electro box connection (for connector see 234G8) | 1 | |
| 9 | 41-8675 | HARNESS - analogue output | 1 | |
| 10 | 41-8677 | HARNESS - electro box x fresh air damper (for connector see 234G8) | 1 | |
| 11 | 41-8771 | HARNESS - electro box x fresh air damper (for connector see 234G8) | 1 | |
| 12 | 41-8678 | HARNESS - CAN | 2 | |
| 13 | 41-8679 | HARNESS - ethernet | 1 | |
| 14 | 41-8680 | HARNESS - temperature sensor, RAS (for connector see 234G8) | 1 | |
| 15 | 41-8681 | HARNESS - temperature sensor, FAS (for connector see 234G8) | 1 | |
| 16 | 41-8682 | HARNESS - temperature sensor, DAS (for connector see 234G8) | 1 | |
| 17 | 41-8683 | HARNESS - heater switches | 1 | |
| 18 | 41-8684 | HARNESS - limit switch | 1 | |
| 19 | 41-8685 | HARNESS - limit switch | 1 | |
| 20 | 41-8686 | HARNESS - solenoid valve | 1 | |
| 21 | 41-8687 | HARNESS - pressure switch (for connector see 234G8) | 1 | |
| 22 | 41-8688 | HARNESS - pressure switch (for connector see 234G8) | 1 | |
| 23 | 41-8689 | HARNESS - pressure switch (for connector see 234G8) | 1 | |
| 24 | 41-8690 | HARNESS - fan connections (for connector see 234G8) | 2 | |
| 25 | 41-8772 | HARNESS - W5 | 1 | |
| 26 | 41-8706 | HARNESS - WS4 | 1 |
