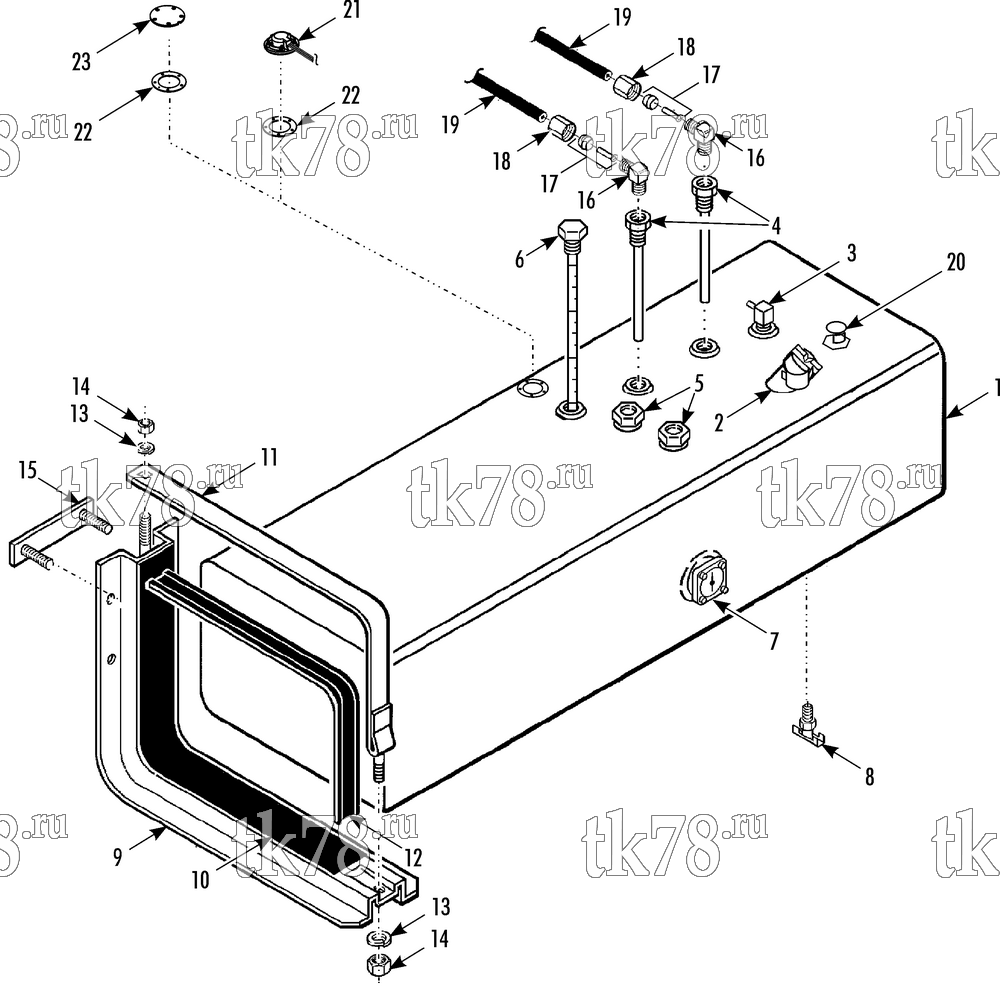

Установкa Thermo King CGCM схема FUEL TANK (SGCM, 80 GALLON) – 149C1
Обновление от: 6/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-790 | TANK - fuel (80 gallons, standard, side gauge, item 7) | 1 | |
| 12-794 | TANK - fuel (80 gallons, optional, top gauge, item 24) | 1 | ||
| 2 | 11-8026 | CAP - fuel tank | 1 | |
| 3 | 55-5617 | VENT - ball check | 1 | |
| 4 | 11-9087 | TUBE - fuel feed line | 2 | |
| 203-385 | SEALER - thread | A/R | ||
| 5 | 11-7265 | PLUG - fuse | 2 | |
| 6 | 11-7489 | DIPSTICK (optional) | 1 | |
| 55-4306 | WASHER | 1 | ||
| 7 | 11-7491 | GAUGE - fuel (display reads 10-70 gal) | 1 | |
| 33-4818 | O-RING - fuel gauge | 1 | ||
| 11-8044 | DIAL - gauge (display reads 10-70 gal) | 1 | ||
| 8 | 55-8306 | DRAIN COCK | 1 | |
| 9 | 98-4073 | BRACKET - tank | 3 | |
| 10 | 91-3434 | PAD - fuel tank (rubber) | 3 | |
| 203-397 | ADHESIVE | A/R | ||
| 11 | 98-4074 | STRAP - tank | 3 | |
| 12 | 91-3435 | EXTRUSION - strap (rubber) | 3 | |
| 13 | 55-2173 | FLATWASHER | 18 | |
| 14 | 55-4952 | NUT | 18 | |
| 15 | 91-3436 | BOLTSTRIP - bracket | 6 | |
| 16 | 11-4959 | ELBOW (3/8) | 2 | |
| 203-385 | SEALER - thread | A/R | ||
| 17 | 10-242 | KIT - sleeve & eyelet (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 18 | 11-4941 | NUT (3/8) | 2 | |
| 19 | 11-4372 | HOSE - fuel (3/8 od x 35 ft lg) | A/R | |
| 20 | 13-975 | GAUGE - fuel (vertical style) | 1 | |
| 21 | 40-1129 | SENSOR - fuel level | 1 | |
| 22 | 33-3878 | GASKET - fuel sensor | 1 | |
| 23 | 92-7236 | COVER - fuel sensor | 1 | |
| 55-1510 | SCREW - sensor/cover | 5 | ||
| 55-431 | LOCKWASHER | 5 | ||
| 55-1511 | FLATWASHER | 5 |
