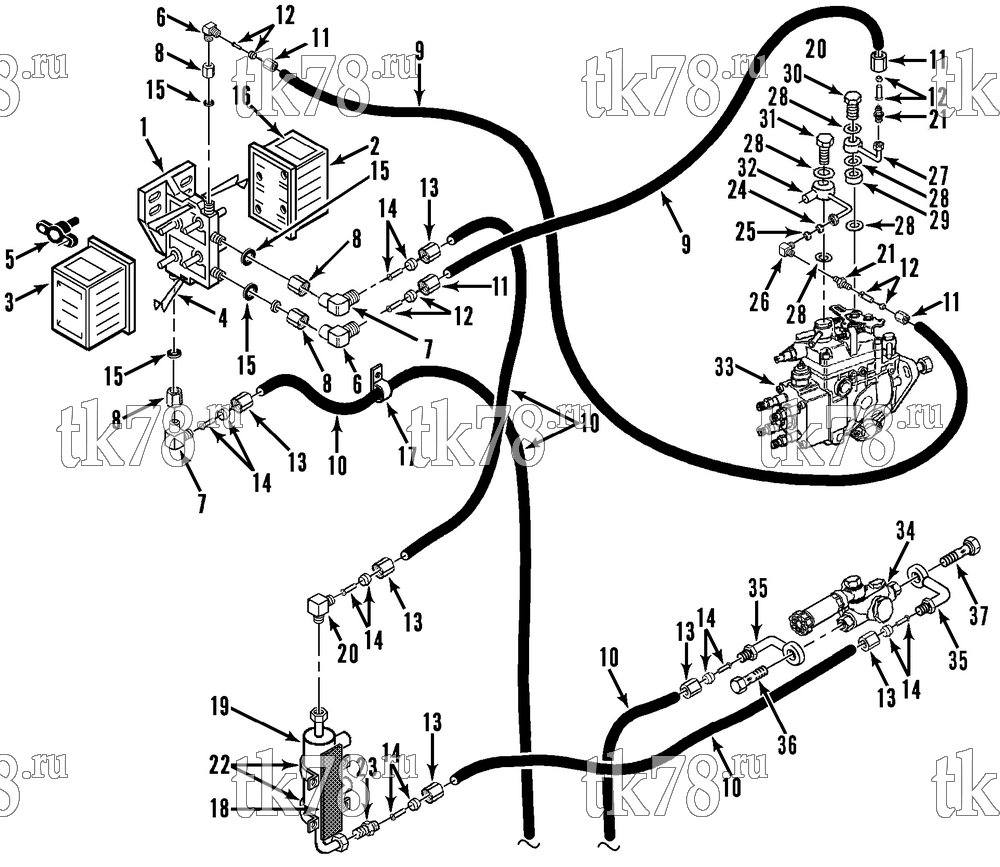

Установкa Thermo King CGCM схема FUEL FILTER, HOSES & HEATER (Before 7/98) – 130C4
Обновление от: 2/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7263 | BASE - fuel filter (replaced with kit 10-325) | 1 | |
| 55-2683 | SCREW - base | 2 | ||
| 55-4955 | NUT - base | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 2 | 11-7264 | ELEMENT - water separator (incl 16) | 1 | |
|
US-11-7264 | Элемент топливного фильтра, SB-III/SMX | 3 320 ₽ |
|
| 3 | 11-6285 | ELEMENT - fuel filter | 1 | |
|
US-11-6285 | Элемент топливного фильтра, SB-III/SMX | 3 320 ₽ |
|
| 4 | 11-6499 | CLAMP - element | 4 | |
| 5 | 11-7481 | PLUG - water sensor | 1 | |
| 55-7137 | SCREW - plug | 2 | ||
| 6 | 11-7741 | FITTING - elbow (1/4) | 2 | |
| 7 | 11-7742 | FITTING - elbow (3/8) | 2 | |
| 8 | 55-5961 | NUT - fitting | 4 | |
| 9 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 10 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 11 | 11-4841 | NUT (1/4) | 4 | |
| 12 | 10-243 | KIT - sleeve & eyelet (1/4) | 4 | |
| 13 | 11-4941 | NUT (3/8) | 4 | |
| 14 | 10-242 | KIT - sleeve & eyelet (3/8) | 4 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 15 | 33-1886 | GROMMET | 4 | |
| 16 | 91-2946 | NAMEPLATE - Water Separator | 1 | |
| 17 | 55-4141 | CLAMP - hose (0.937 dia) | 1 | |
| 55-4203 | CLAMP - hose (0.625 dia) | 1 | ||
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 18 | 91-5739 | PAD - fuel heater | 1 | |
| 19 | 11-6246 | HEATER - fuel | 1 | |
| 20 | 11-4380 | ELBOW (3/8) | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 21 | 11-4370 | CONNECTOR - hose fitting (1/4) | 2 | |
| 22 | 91-438 | CLAMP - fuel heater | 2 | |
| 55-2991 | SCREW - clamp | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 23 | 55-4515 | FITTING (3/8) | 1 | |
| 24 | 11-5926 | NUT - hose fitting | 2 | |
| 25 | 11-5981 | SLEEVE (1/4) | 2 | |
| 26 | 11-5905 | CONNECTOR | 1 | |
| 27 | 11-7436 | CONNECTOR - fuel inlet | 1 | |
| 28 | 33-1668 | GASKET - connector | 5 | |
| 29 | 55-5588 | SPACER | 1 | |
| 30 | 55-5587 | BOLT - eye | 1 | |
| 31 | 11-5917 | VALVE - bleed | 1 | |
| 32 | 11-7663 | CONNECTOR - fuel return | 1 | |
| 33 | 8101-281 | PUMP - injection (reman, see 100C12) | 1 | |
| 34 | 11-7433 | PUMP - fuel (see 100C9) | 1 | |
|
11-7433 OEM | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 24 100 ₽ |
|
|
PP-11-7433 | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 6 680 ₽ |
|
| 35 | 11-7499 | FITTING - banjo | 2 | |
| 36 | 55-5524 | BOLT - eye & screen | 1 | |
| 11-2854 | FILTER - screen | 1 | ||
| 37 | 11-6987 | BOLT - eye | 1 |
