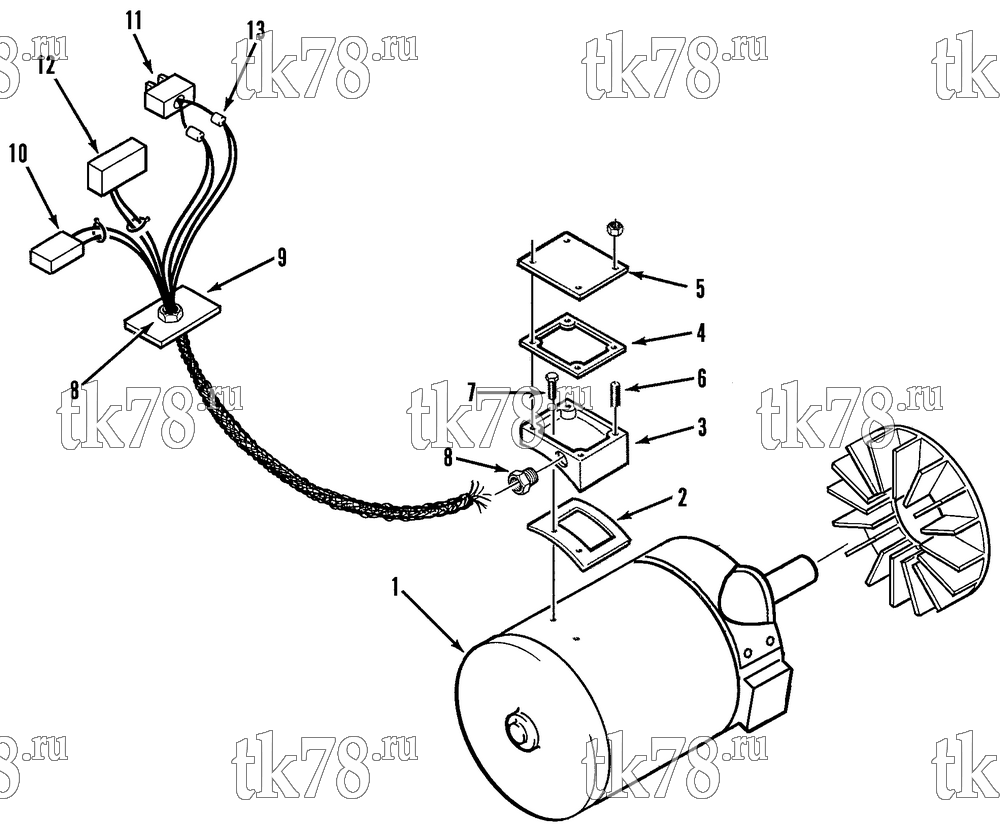

Установкa Thermo King CG-II M7 & M7A Prepared for CGM схема ALTERNATOR GROUP (M7A) – 88E1
Обновление от: 2/5/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 404-147 | ALTERNATOR (see 88E3) | 1 | |
| 2 | 33-1419 | GASKET - junction box | 1 | |
| 3 | 99-7156 | BOX - junction | 1 | |
| 4 | 33-1420 | GASKET - cover | 1 | |
| 5 | 99-6184 | COVER - junction box | 1 | |
| 6 | 55-5284 | STUD - cover | 1 | |
| 55-4560 | NUT - cover | 4 | ||
| 7 | 55-1587 | SCREW - box | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 8 | 55-3539 | CONNECTOR - barb | 2 | |
| 33-1056 | O-RING | 2 | ||
| 55-2636 | NUT | 2 | ||
| 9 | 99-3583 | PLATE - cover | 1 | |
| 33-1062 | GASKET - plate | 1 | ||
| 10 | 44-2997 | SOCKET (12 contact, wire No. T4, T5, T6, T10, T11, T12, gold plated terminals) | 1 | |
| 41-1419 | SOCKET (12 contact, tin plated terminals) | 1 | ||
| 11 | 44-4334 | PLUG & HARNESS - exciter (2-pin wire Nos. F1, F2) | 1 | |
| 12 | 44-7744 | HARNESS & PLUG (wire Nos. T4, T5, T6, T7, T8, T9) | 1 | |
| 44-2550 | PLUG (12 contact, gold plated terminals) | 1 | ||
| 41-1416 | SOCKET (12 contact, tin plated terminals) | 1 | ||
| 13 | 44-6058 | SPLICE | 2 |
