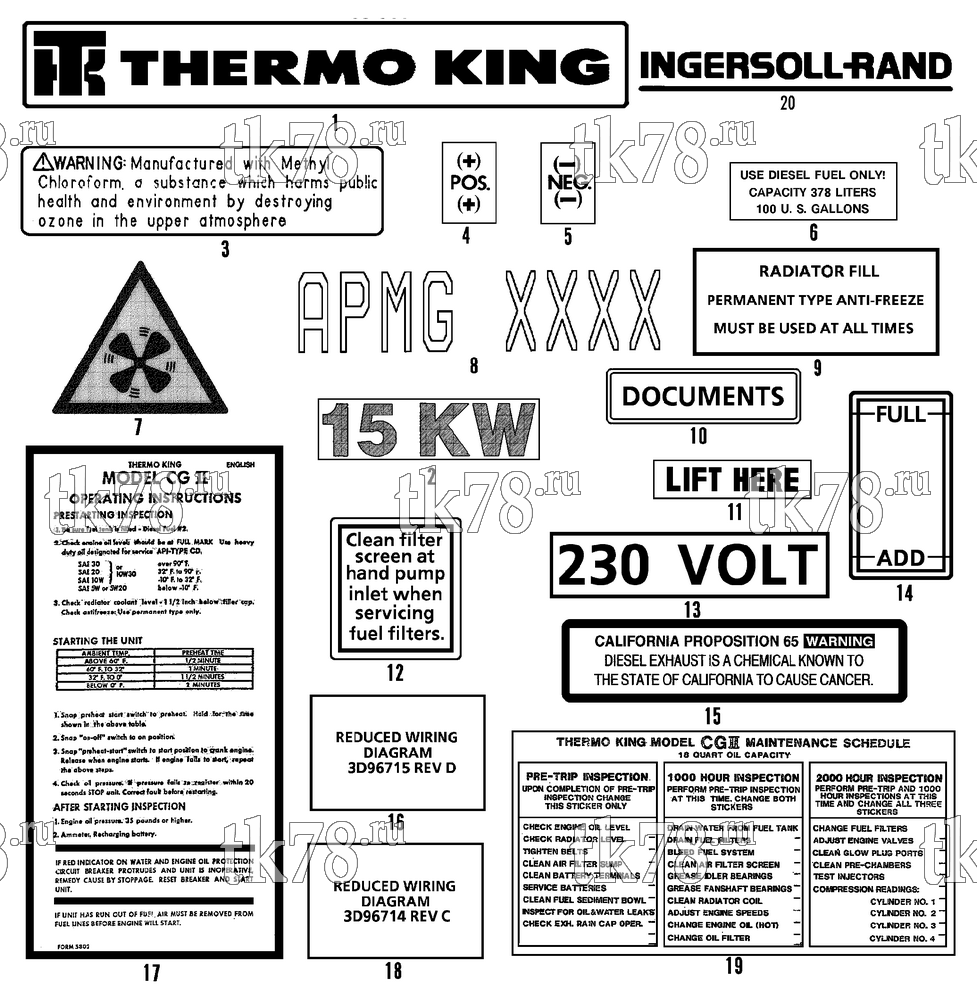

Установкa Thermo King CG-II M445 схема NAMEPLATES – 124A9
Обновление от: 9/16/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-8299 | NAMEPLATE - Thermo King | 1 | |
| 2 | 91-6284 | NAMEPLATE - 15 kW | 1 | |
| 3 | 91-5294 | NAMEPLATE - Warning, Methyl Chloroform | 1 | |
| 4 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 91-6283 | NAMEPLATE - Diesel fuel only | 1 | |
| 7 | 99-3064 | NAMEPLATE - Caution, Fan | 1 | |
| 8 | 91-4150 | NAMEPLATE - APMG | 1 | |
| 9 | 99-8587 | NAMEPLATE - Radiator Fill | 1 | |
| 10 | 91-338 | NAMEPLATE - Document Holder | 1 | |
| 11 | 91-642 | NAMEPLATE - Lift Here | 1 | |
| 12 | 99-8583 | NAMEPLATE - Clean Filter Screen | 1 | |
| 13 | 99-3866 | NAMEPLATE - 230 Volt | 1 | |
| 14 | 99-7314 | NAMEPLATE - Coolant Level | 1 | |
| 15 | 91-7171 | NAMEPLATE - California Proposition | 1 | |
| 16 | 91-868 | NAMEPLATE - Wiring Diagram | 1 | |
| 17 | 91-320 | NAMEPLATE - Operating Instructions (CG-II) | 1 | |
| 18 | 91-869 | NAMEPLATE - Wiring Diagram | 1 | |
| 19 | 91-436 | NAMEPLATE - Maintenance | 1 | |
| 20 | 91-8746 | NAMEPLATE - Ingersoll Rand | 1 |
