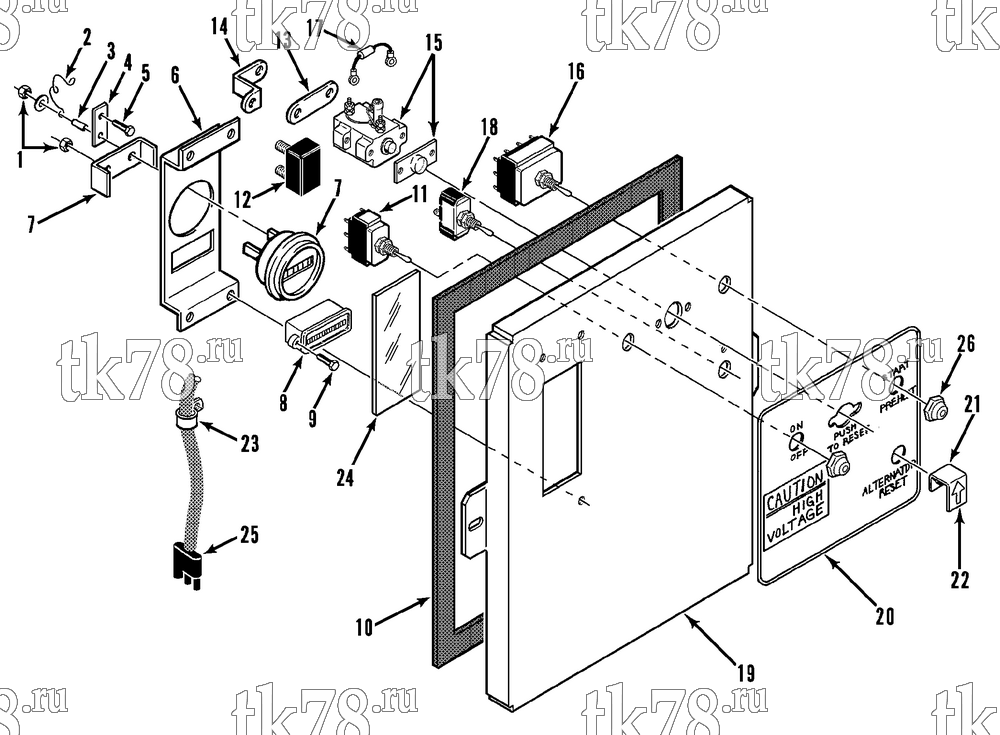

Установкa Thermo King CG-II M445 схема CONTROL BOX COVER (See Note) – 120A10
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-346 | NUT (10-32, brass) | 5 | |
| 55-1852 | LOCKWASHER (10, brass) | 5 | ||
| 55-401 | FLATWASHER (10, brass) | 4 | ||
| 2 | 44-3850 | LIMITER - current | 1 | |
| 3 | 55-3544 | SPACER | 1 | |
| 4 | 44-4905 | INSULATOR - current limiter | 1 | |
| 5 | 44-1133 | SCREW - terminal (10-32 x 7/8, brass) | 1 | |
| 6 | 99-3571 | BRACKET - hourmeter/ammeter | 1 | |
| 55-3025 | SCREW - bracket | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 7 | 44-3258 | AMMETER | 1 | |
| 44-3258 OEM | Амперметр, KD/MD/RD/TD-II / SB-II/III | 2 400 ₽ |
|
|
| 8 | 44-5453 | HOURMETER | 1 | |
| 9 | 55-2868 | SCREW - hourmeter | 2 | |
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 10 | 99-8986 | STRIP - gasket (bulk) | A/R | |
| 11 | 44-2368 | SWITCH - on/off | 1 | |
| 12 | 44-3516 | BREAKER - circuit (auto reset) | 1 | |
|
30-44-3516 | Предохранитель 30А | 1 090 ₽ |
|
| 55-346 | NUT | 2 | ||
| 55-1852 | LOCKWASHER | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 13 | 44-1458 | JUMPER - on/off switch to circuit breaker | 1 | |
| 14 | 44-3182 | JUMPER - circuit breaker to cutout switch | 1 | |
| 15 | 40-1082 | SWITCH - high temperature cutout (see 119E12) | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 55-3022 | SCREW - switch | 2 | ||
| 55-3023 | WASHER - sealing | 2 | ||
| 16 | 44-3183 | SWITCH - start/preheat | 1 | |
|
10-44-3183 | Переключатель старт - прогрев, SB-I/II/III | 4 150 ₽ |
|
| 17 | 44-4411 | DIODE - assembly | 1 | |
| 18 | 44-6185 | BREAKER - circuit (manual reset) | 1 | |
| 19 | 91-636 | COVER | 1 | |
| 20 | 99-9956 | NAMEPLATE - Cover | 1 | |
| 21 | 99-9638 | GUARD - circuit breaker | 1 | |
| 22 | 99-9639 | NAMEPLATE - Circuit Breaker | 1 | |
| 23 | 55-3510 | CLAMP - harness | 1 | |
| 55-3025 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-3008 | WASHER - sealing | 1 | ||
| 55-2965 | NUT | 1 | ||
| 24 | 99-1978 | WINDOW - cover | 1 | |
| 25 | 44-4330 | CONNECTOR - exciter | 1 | |
| 26 | 44-739 | BOOT - switch | 2 |
