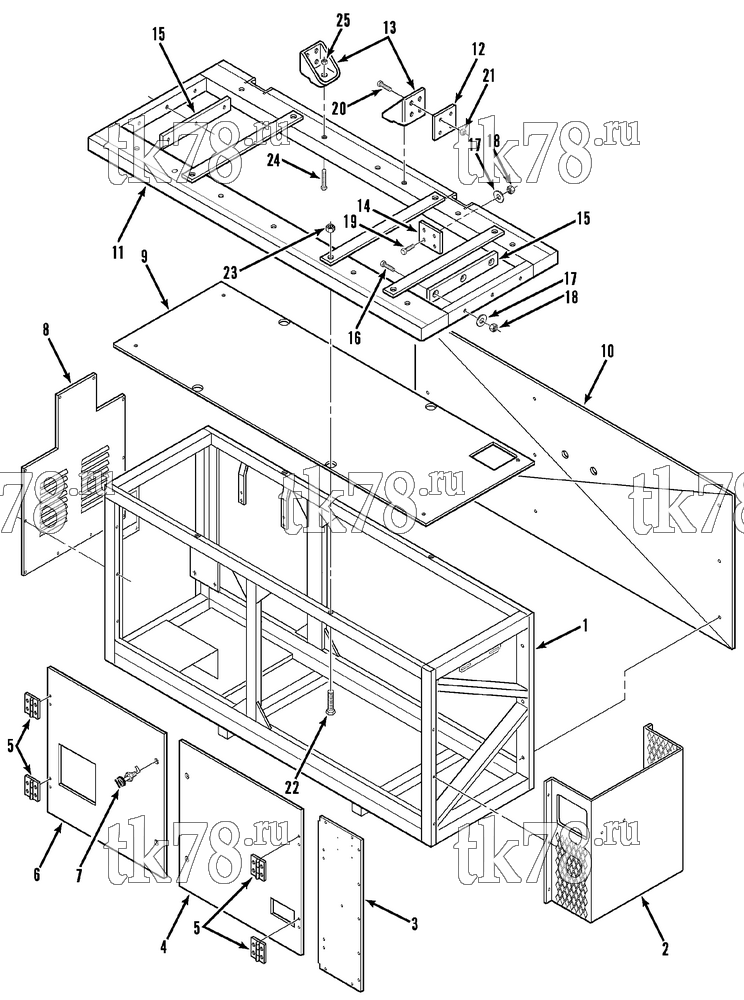

Установкa Thermo King CG-II M323A схема STRUCTURAL COMPONENTS - UNIT MOUNTING – 106G6
Обновление от: 6/2/92
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4224 | FRAME | 1 | |
| 2 | 98-4231 | GRILLE - radiator | 1 | |
| 55-5640 | SCREW - grille | 6 | ||
| 3 | 98-4230 | PANEL - front | 1 | |
| 55-5646 | SCREW - panel | 11 | ||
| 4 | 98-4226 | DOOR - front | 1 | |
| 5 | 99-7139 | HINGE - door (w/ pin, left) | 2 | |
| 99-7138 | HINGE - door (w/o pin, left) | 2 | ||
| 99-7140 | HINGE - door (w/ pin, right) | 2 | ||
| 99-7137 | HINGE - door (w/o pin, right) | 2 | ||
| 55-3027 | SCREW - hinge | 16 | ||
| 55-2001 | FLATWASHER | 32 | ||
| 55-4560 | NUT (hexstop) | 16 | ||
| 6 | 98-4227 | DOOR - rear | 1 | |
| 7 | 99-6599 | LATCH - door | 4 | |
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 4 | ||
| 8 | 98-4232 | PANEL - rear | 1 | |
| 55-5640 | SCREW - panel | 10 | ||
| 9 | 98-4228 | COVER - top | 1 | |
| 55-5640 | SCREW - cover | 4 | ||
| 10 | 98-4229 | PANEL - back | 1 | |
| 55-5640 | SCREW - panel | 15 | ||
| 33-1217 | GROMMET (1-3/8 id) | 2 | ||
| 11 | 98-4235 | FRAME - unit mounting | 1 | |
| 12 | 99-6085 | PLATE - backing | 12 | |
| 13 | 99-6083 | BRACKET - unit mounting | 12 | |
| 14 | 91-4156 | PAD - frame, bumper (left) | 2 | |
| 15 | 91-4157 | PAD - frame, bumper (front) | 2 | |
| 16 | 55-2977 | SCREW (1/4-20 x 1) | 6 | |
| 17 | 55-2086 | FLATWASHER (1/4) | 28 | |
| 18 | 55-4953 | NUT (1/4-20) | 14 | |
| 19 | 55-2979 | SCREW (1/4-20 x 1-1/4) | 8 | |
| 20 | 55-197 | SCREW (3/8-24 x 1-1/4) | 48 | |
| 21 | 55-3825 | NUT (3/8-24, hexstop) | 48 | |
| 22 | 55-2482 | SCREW (5/8 -18 x 4 1/2) | 4 | |
| 23 | 55-7451 | NUT (5/8-18, hexstop) | 4 | |
| 24 | 55-2252 | SCREW (1/2-13 x 1-1/2) | 12 | |
| 25 | 55-4952 | NUT (1/2-13, hexstop) | 12 |
