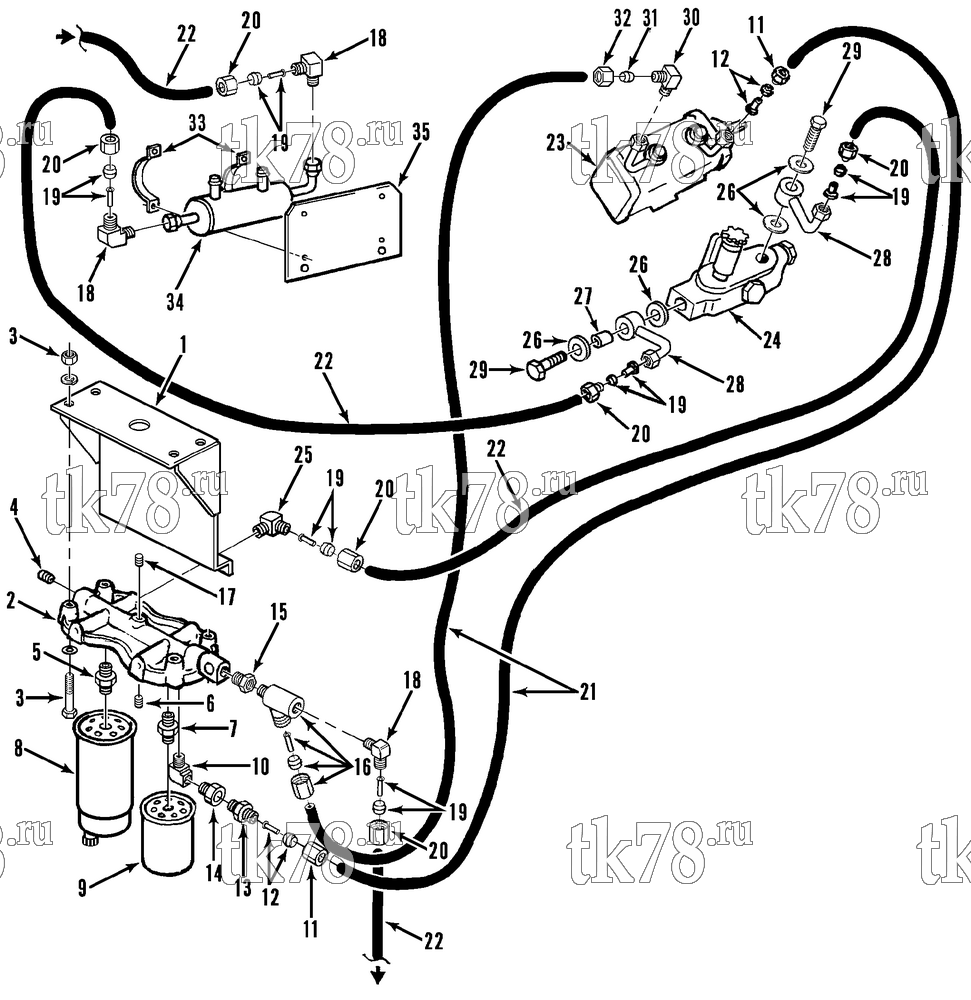

Установкa Thermo King CG-II M323A схема FUEL FILTERS, HOSES & HEATER – 106G3
Обновление от: 7/20/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4143 | BRACKET - fuel filter | 1 | |
| 55-2963 | SCREW - bracket | 1 | ||
| 91-4144 | SPACER | 1 | ||
| 55-2959 | LOCKWASHER | 1 | ||
| 55-2114 | NUT | 4 | ||
| 2 | 11-5294 | BRACKET - fuel filter | 1 | |
| 3 | 55-2962 | SCREW - bracket | 4 | |
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2114 | NUT | 4 | ||
| 4 | 55-193 | PLUG | 1 | |
| 5 | 55-3403 | ADAPTER - filter | 1 | |
| 6 | 55-1004 | PLUG - pipe | 1 | |
| 7 | 55-3168 | ADAPTER | 1 | |
| 8 | 11-5948 | FILTER - fuel (primary) | 1 | |
| US-11-5947 | Фильтр топливный со сливом, SB-II/III | 3 040 ₽ |
|
|
| 11-5947 | ELEMENT - fuel filter | 1 | ||
| US-11-5947 | Фильтр топливный со сливом, SB-II/III | 3 040 ₽ |
|
|
| 33-1687 | O-RING - bowl | 1 | ||
| 9 | 11-9098 | FILTER - fuel (secondary) | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 10 | 55-4244 | ELBOW | 1 | |
| 11 | 11-4841 | NUT - fuel hose (1/4) | 3 | |
| 12 | 10-243 | KIT - sleeve & eyelet (1/4) | 3 | |
| 13 | 11-4370 | CONNECTOR - hose fitting (1/4) | 1 | |
| 14 | 55-5023 | BUSHING - orifice | 1 | |
| 15 | 55-4799 | BUSHING - orifice | 1 | |
| 16 | 11-5321 | TEE - hose fitting (1/4) | 1 | |
| 17 | 55-433 | PLUG | 1 | |
| 18 | 11-4380 | ELBOW - hose fitting (3/8) | 3 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 19 | 10-242 | KIT - sleeve & eyelet (3/8) | 6 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 20 | 11-4941 | NUT - hose fitting (3/8) | 4 | |
| 21 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 22 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 23 | 101-256 | PUMP - injection (see 68E3) | 1 | |
| 10-101-256R | Топливный насос, Isuzu 2.2 DI (Восстановленный) | 136 140 ₽ |
|
|
| 24 | 11-7500 | PUMP - fuel (see 102F8) | 1 | |
|
11-7500 OEM | Топливный насос подкачки, Isuzu 2.2 (D201), SB-II/SB-III | 27 950 ₽ |
|
|
PP-11-7500 | Топливный насос подкачки, Isuzu 2.2 (D201), SB-II/SB-III | 6 180 ₽ |
|
| 25 | 55-4515 | ELBOW (3/8) | 1 | |
| 26 | 55-2208 | GASKET - bolt | 4 | |
|
10-55-2208 | Шайба уплотнительная | 340 ₽ |
|
| 27 | 11-2854 | FILTER - screen | 1 | |
| 28 | 11-7499 | FITTING - banjo | 2 | |
| 29 | 55-5524 | BOLT - hollow (banjo fitting) | 2 | |
| 11-2854 | FILTER - screen | 1 | ||
| 30 | 55-5909 | ELBOW (1/4) | 1 | |
| 31 | 11-5981 | SLEEVE (1/4) | 2 | |
| 32 | 11-5926 | NUT (1/4) | 2 | |
| 33 | 91-438 | CLAMP - fuel heater | 2 | |
| 55-2995 | SCREW - clamp | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 34 | 11-6246 | HEATER - fuel | 1 | |
| 35 | 91-331 | PLATE - clamp | 1 | |
| 55-2963 | SCREW - plate | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT | 2 |
