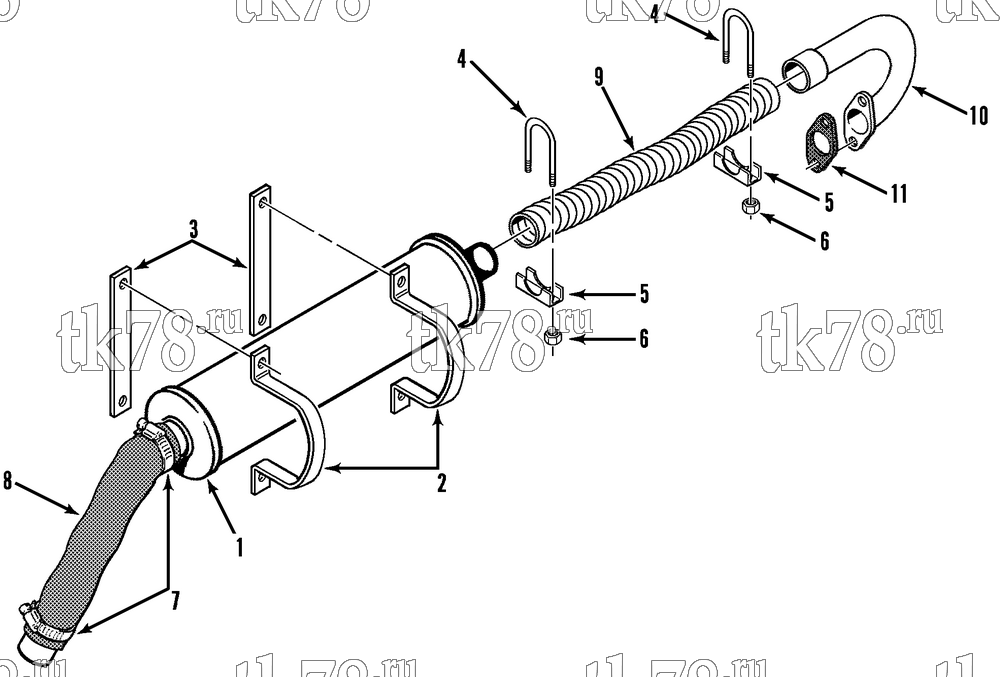

Установкa Thermo King CG-II M30, M30A, M30B схема MUFFLER GROUP (Before 5/1/95) – 122D10
Обновление от: 5/5/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-521 | MUFFLER | 1 | |
| 2 | 91-613 | CLAMP - muffler | 2 | |
| 55-2977 | SCREW - muffler | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-7422 | INSERT | 4 | ||
| 3 | 12-536 | SPACER - muffler | 2 | |
| 4 | 55-5734 | U-BOLT | 2 | |
| 5 | 99-7143 | SADDLE - u-bolt | 2 | |
| 6 | 55-2114 | NUT - u-bolt | 4 | |
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 7 | 55-3991 | CLAMP - sleeving | 2 | |
| 8 | 11-5428 | SLEEVING - heat resistant | 1 | |
| 9 | 12-313 | HOSE - exhaust (25 ft bulk, 23.5 in required) | A/R | |
| 10 | 11-8256 | TUBE - exhaust | 1 | |
| 55-3089 | SCREW - tube | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2114 | NUT | 2 | ||
| 11 | 33-2314 | GASKET - flange | 1 | |
| 33-2314 OEM | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 1 250 ₽ |
|
|
|
10-33-2314 | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 990 ₽ |
|
|
PP-33-2314 | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 480 ₽ |
|
