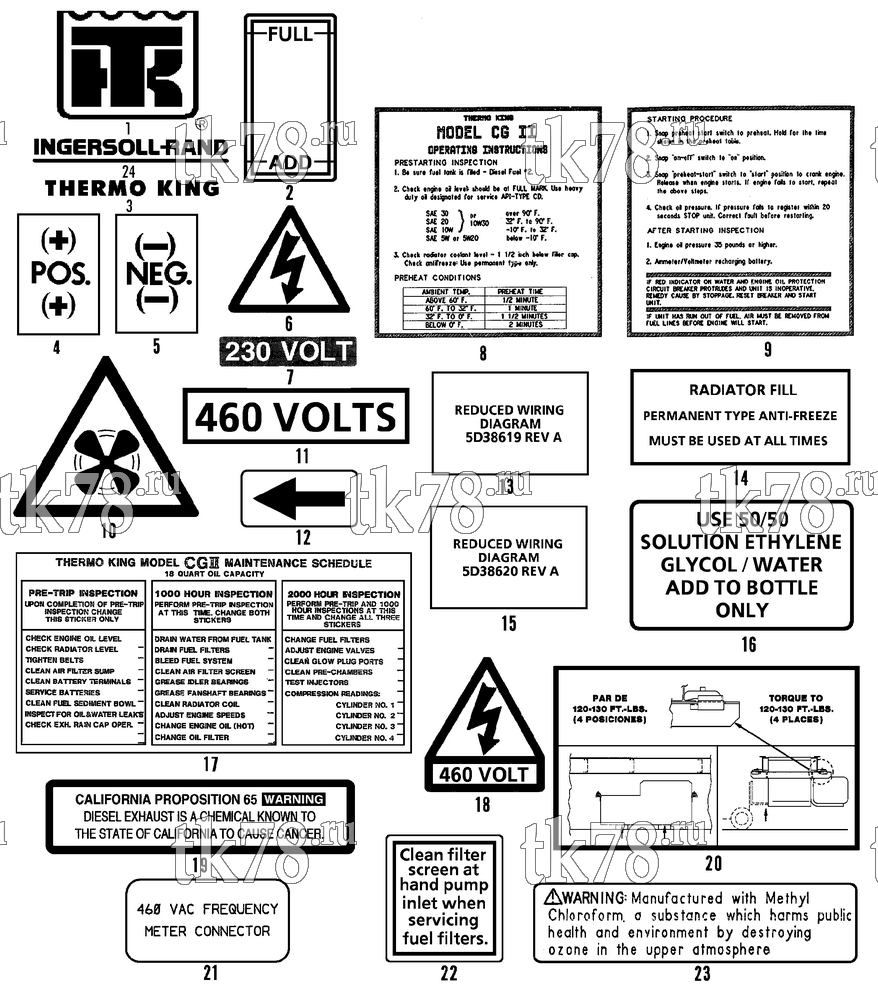

Установкa Thermo King CG-II M22C схема NAMEPLATES – 118F11
Обновление от: 8/21/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4511 | NAMEPLATE - TK Logo | 1 | |
| 2 | 99-7314 | NAMEPLATE - Coolant Level | 1 | |
| 3 | 91-4510 | NAMEPLATE - Thermo King | 1 | |
| 4 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 7 | 99-1949 | NAMEPLATE - 230 Volt | 1 | |
| 8 | 91-4152 | NAMEPLATE - English Operating Instructions | 1 | |
| 9 | 91-4151 | NAMEPLATE - English Operating Instructions | 1 | |
| 13 | 91-4130 | NAMEPLATE - Wiring Diagram | 1 | |
| 10 | 99-9234 | NAMEPLATE - Fan Universal | 1 | |
| 11 | 99-4732 | NAMEPLATE - 460 Volts | 1 | |
| 12 | 91-4512 | NAMEPLATE - arrow | 1 | |
| 14 | 99-8587 | NAMEPLATE - Radiator Fill | 1 | |
| 15 | 91-4131 | NAMEPLATE - Schematic diagram | 1 | |
| 16 | 99-8298 | NAMEPLATE - Coolant | 1 | |
| 17 | 91-319 | NAMEPLATE - Maintenance | 1 | |
| 18 | 91-3423 | NAMEPLATE - 460V | 1 | |
| 20 | 91-3425 | NAMEPLATE - Operating Instructions | 1 | |
| 19 | 91-7171 | NAMEPLATE - California Proposition | 1 | |
| 21 | 91-324 | NAMEPLATE - Meter frequency | 1 | |
| 22 | 99-8583 | NAMEPLATE - Clean Filter Screen | 1 | |
| 23 | 91-5294 | NAMEPLATE - Warning, Methyl Chloroform | 1 | |
| 24 | 91-8746 | NAMEPLATE - Ingersoll Rand | 1 |
