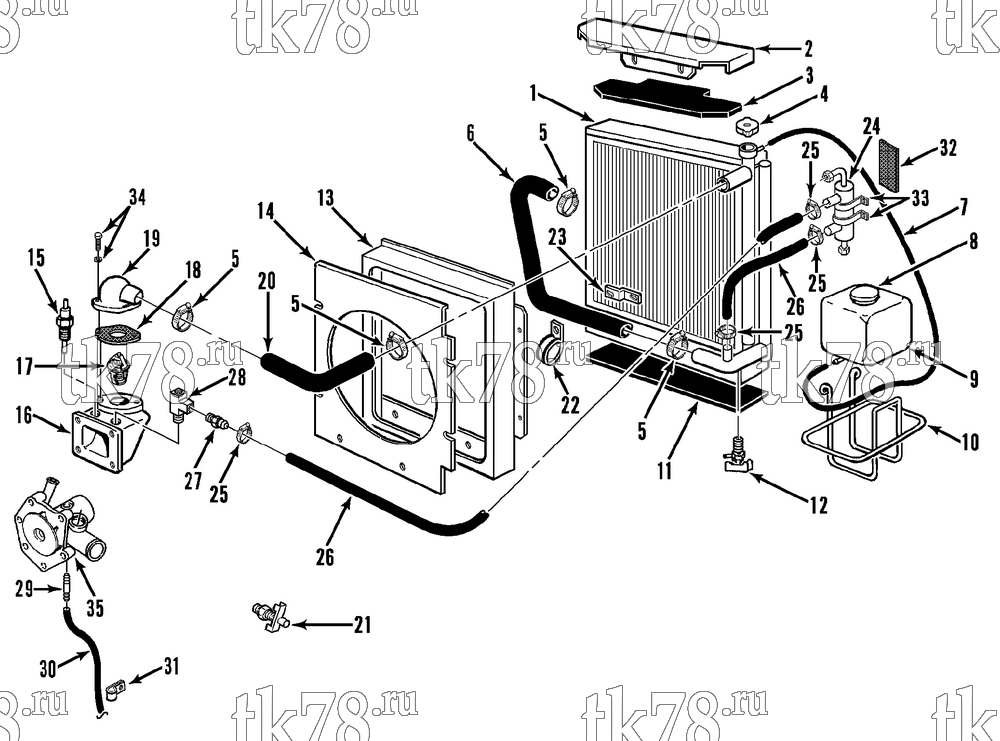

Установкa Thermo King CG-II M22, M22D, M22E схема ENGINE COOLING SYSTEM (Before 9/96) – 118F5
Обновление от: 6/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-653 | RADIATOR (includes 12) | 1 | |
| 11-4921 | NECK - filler | 1 | ||
| 2 | 91-1832 | BRACKET - radiator | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-2945 | WASHER | 4 | ||
| 55-4953 | NUT (hexstop) | 2 | ||
| 3 | 91-1923 | PAD - radiator (top) | 1 | |
| 4 | 11-7983 | CAP - radiator (steel) | 1 | |
| 11-8913 | CAP - radiator (stainless steel) | 1 | ||
| 5 | 55-3402 | CLAMP - hose | 4 | |
| 6 | 11-9532 | HOSE - engine to radiator (silicone) | ||
| 11-9531 | HOSE - engine to radiator (EPDM) | 1 | ||
| 7 | 98-771 | HOSE - overflow (25 ft) | A/R | |
| 55-2796 | CLAMP | 2 | ||
| 8 | 99-8301 | CAP & CHAIN - overflow tank (see 119E11) | 1 | |
| 9 | 11-4607 | TANK - overflow | 1 | |
| 10 | 11-4693 | HANGER - overflow tank | 1 | |
| 55-1587 | SCREW - hanger | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT (hexstop) | 2 | ||
| 11 | 91-1834 | PAD - radiator (bottom) | 1 | |
| 203-396 | ADHESIVE | A/R | ||
| 12 | 55-4957 | DRAIN COCK - radiator | 1 | |
| 13 | 98-3762 | SHROUD - radiator | 1 | |
| 55-6721 | INSERT - threaded | 6 | ||
| 14 | 98-3763 | ORIFICE - radiator | 1 | |
| 55-2995 | SCREW - orifice | 6 | ||
| 55-6721 | INSERT | 6 | ||
| 55-4740 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 15 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 16 | 11-9265 | HOUSING - thermostat | 1 | |
| 55-4983 | PLUG - pipe | 1 | ||
| 17 | 11-7702 | THERMOSTAT - water | 1 | |
|
11-7702 OEM | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 3 830 ₽ |
|
|
10-11-7702 | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 1 790 ₽ |
|
| 18 | 33-487 | GASKET - thermostat | 1 | |
|
10-33-487 | Прокладка термостата, Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 910 ₽ |
|
| 19 | 11-3154 | ELBOW - water outlet | 1 | |
| 20 | 11-9544 | HOSE - radiator to engine (top, silicone) | 1 | |
| 11-9543 | HOSE - radiator to engine (top, EPDM) | 1 | ||
| 21 | 55-5094 | DRAIN COCK - engine | 1 | |
| 22 | 55-6156 | CLAMP - hose support | 1 | |
| 23 | 91-5738 | BRACKET - hose clamp | 1 | |
| 55-2991 | SCREW - bracket | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-6554 | INSERT - threaded | 1 | ||
| 24 | 11-6246 | HEATER - fuel | 1 | |
| 25 | 55-5074 | CLAMP - hose | 4 | |
| 26 | 12-383 | HOSE - fuel heater (bulk) | A/R | |
| 27 | 55-7735 | NIPPLE - hose fitting | 1 | |
| 55-3351 | CONNECTOR - hose | 1 | ||
| 28 | 55-7736 | TEE | 1 | |
| 29 | 11-7833 | CONNECTOR - hose | 1 | |
| 30 | 11-7834 | HOSE - vent (thermostat housing) | 1 | |
| 31 | 55-2240 | CLAMP - hose | 2 | |
| 32 | 91-5739 | PAD - fuel heater | 1 | |
| 33 | 91-438 | CLAMP - fuel heater | 2 | |
| 55-2991 | SCREW - clamp | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT (hexstop) | 4 | ||
| 34 | 55-5424 | SCREW - elbow | 2 | |
| 55-790 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 44 | 33-2513 | GASKET - drive end | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 45 | 22-620 | SCREEN - oil pickup | 1 | |
| 46 | 99-4848 | CLAMP - screen | 1 | |
| 10-99-4848 | Зажим | 960 ₽ |
|
|
| 55-366 | LOCKWASHER | 2 | ||
| 55-291 | NUT | 2 | ||
| 47 | 99-6074 | BRACKET - screen | 1 | |
| 48 | 55-165 | SCREW - bracket | 2 | |
| 55-366 | LOCKWASHER | 2 | ||
| 49 | 11-2009 | VALVE | 1 | |
| 50 | 22-1160 | PUMP - oil | 1 | |
|
22-1160 OEM | Масляный насос компрессора X214/418/426/430/640 | 18 400 ₽ |
|
|
10-22-1160 | Масляный насос компрессора X214/418/426/430/640 | 17 150 ₽ |
|
| PP-22-1160 | Масляный насос компрессора X214/418/426/430/640 | 10 020 ₽ |
|
|
| 51 | 33-1223 | O-RING | 1 | |
| 52 | 22-1149 | SHAFT - oil pump | 1 | |
|
10-22-1149 | Вал масляного насоса, X214/418/426/430/640 | 6 570 ₽ |
|
| 53 | 55-9760 | KEY - shaft | 1 | |
|
10-55-9760 | Шпонка вала масляного насоса, X214/426/430 | 390 ₽ |
|
| 54 | 55-529 | SCREW - plate | 9 | |
| 55-896 | FLATWASHER | 9 | ||
| 55 | 33-2516 | GASKET - oil sump (shallow) | 1 | |
| 56 | 22-621 | SUMP - oil (shallow) | 1 | |
| 57 | 55-1417 | SCREW - oil sump | 16 | |
| 30-55-1417 | Болт поддона компрессора | 700 ₽ |
|
|
| 55-896 | FLATWASHER | 16 | ||
| 58 | 22-787 | VALVE - check (oil return) | 1 | |
|
10-22-787 | Пробка проверочная, X418/X426/X430 | 5 170 ₽ |
|
| PP-22-787 | Пробка проверочная, X418/X426/X430 | 1 100 ₽ |
|
|
| 59 | 22-568 | VALVE - check | 2 | |
|
10-22-568 | Обратный клапан, X426/430/640 | 800 ₽ |
|
| 60 | 33-2205 | O-RING | 1 | |
| 61 | 22-233 | PLATE & HUB | 1 | |
| 67-404 | OIL - synthetic | 1 | ||
| 30-243 | KIT - gasket (see 131F1) | 1 | ||
|
30-243 OEM | Комплект прокладок компрессора X418/X426/X430 | 17 930 ₽ |
|
|
10-30-243 | Комплект прокладок компрессора X418/X426/X430 | 13 040 ₽ |
|
|
PP-30-243 | Комплект прокладок компрессора X418/X426/X430 | 6 160 ₽ |
|
| 203-346 | KIT - acid test | 1 |
