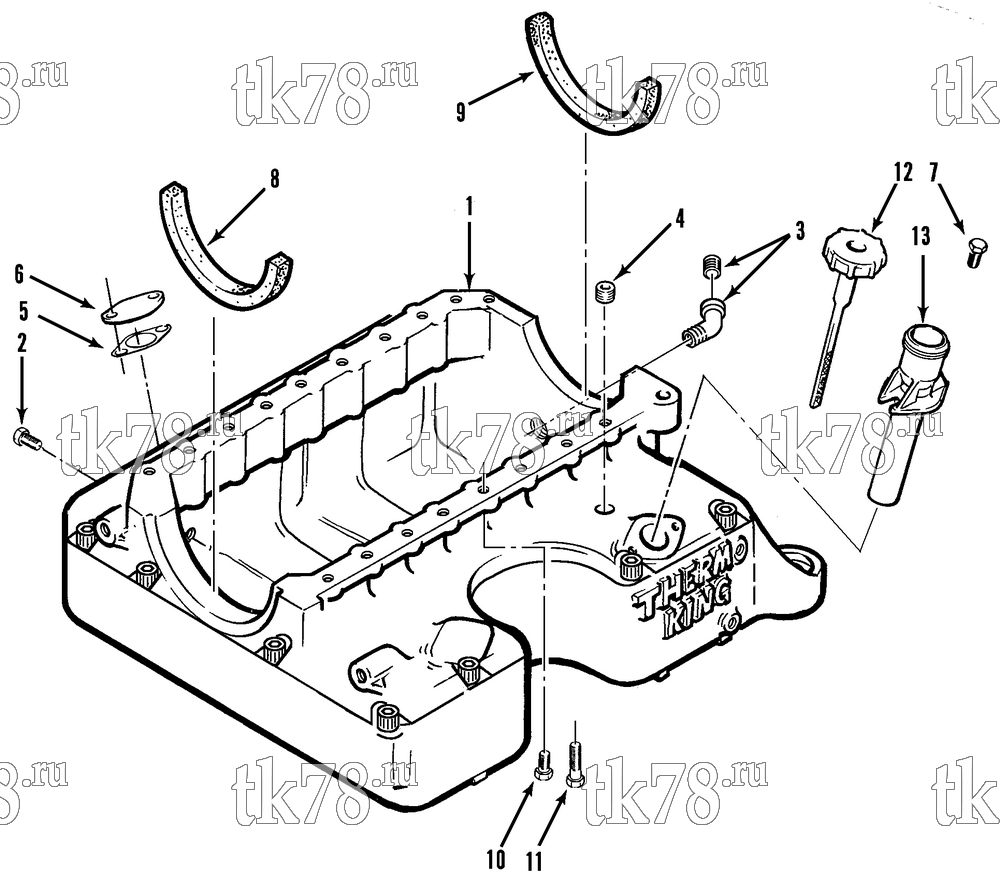

Установкa Thermo King CG-II M20 схема OIL PAN GROUP – 96E4
Обновление от: 7/14/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-542 | BASE - oil | 1 | |
| 55-6389 | SCREW - oil base | A/R | ||
| 2 | 55-5482 | PLUG - oil drain | 2 | |
| 3 | 55-5592 | ELBOW - oil drain | 1 | |
| 55-6829 | PLUG - oil drain | 1 | ||
| 4 | 55-5484 | PLUG - oil pan | 1 | |
| 5 | 33-1655 | GASKET - cover | 2 | |
| 6 | 11-4641 | COVER - oil pan | 2 | |
| 7 | 55-3531 | BOLT - cover | 4 | |
| 8 | 33-1642 | SEAL - rear | 1 | |
|
33-1642 OEM | Прокладка поддона задняя, Isuzu 2.2 DI (D201) | 1 500 ₽ |
|
|
10-33-1642 | Прокладка поддона задняя, Isuzu 2.2 DI (D201) | 1 020 ₽ |
|
| 9 | 33-1643 | SEAL - front | 1 | |
|
33-1643 OEM | Прокладка поддона передняя, Isuzu 2.2 DI (D201) | 1 330 ₽ |
|
|
10-33-1643 | Прокладка поддона передняя, Isuzu 2.2 DI (D201) | 830 ₽ |
|
| 10 | 55-5485 | BOLT - oil pan (25 mm) | 18 | |
| 11 | 55-5486 | BOLT - oil pan (40 mm) | 4 | |
| 12 | 11-7486 | DIPSTICK | 1 | |
|
10-11-7486 | Масляный щуп, Isuzu 2.2 DI (D201), SB-I/II/III / SMX/SMX-II | 2 000 ₽ |
|
| 33-2965 | GASKET | 1 | ||
| 13 | 11-4989 | TUBE - oil fill | 1 | |
| 55-5955 | SCREW - tube | 2 | ||
| 55-4608 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 30-262 | GASKET SET | 1 | ||
|
10-30-262 | Набор прокладок двигателя Isuzu 2.2 DI (D201) | 32 330 ₽ |
|
| PP-30-262 | Набор прокладок двигателя Isuzu 2.2 DI (D201) | 16 620 ₽ |
|
|
| 203-336 | OIL - synthetic (EMI, 1 gal) | A/R | ||
| 203-338 | OIL - synthetic (EMI, 55 gal drum) | A/R |
