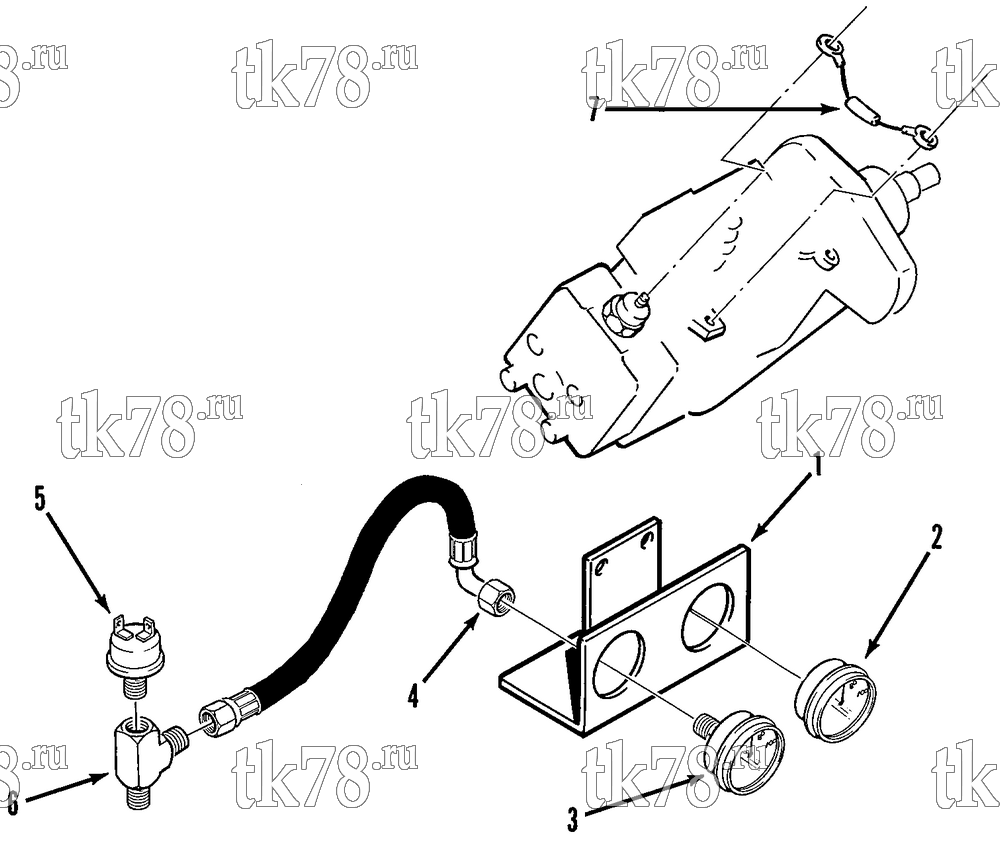

Установкa Thermo King CG-II M19 схема UNIT GAUGES - OIL PRESSURE SWITCH – 82F10
Обновление от: 12/11/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1272 | BRACKET - gauge | 1 | |
| 55-5695 | SCREW - bracket | 2 | ||
| 55-2200 | LOCKWASHER | 2 | ||
| 2 | 44-2814 | GAUGE - water temperature | 1 | |
|
10-44-2814 | Датчик температуры воды | 15 730 ₽ |
|
| 3 | 44-2260 | GAUGE - oil pressure | 1 | |
|
10-44-2260 | Датчик давления масла | 6 600 ₽ |
|
| 55-1253 | COUPLING - oil gauge | 1 | ||
| 4 | 11-5426 | HOSE - oil gauge | 1 | |
| 5 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 6 | 55-2273 | TEE | 1 | |
| 33-768 | GASKET | 1 | ||
| 7 | 44-7663 | DIODE - fuel solenoid | 1 |
