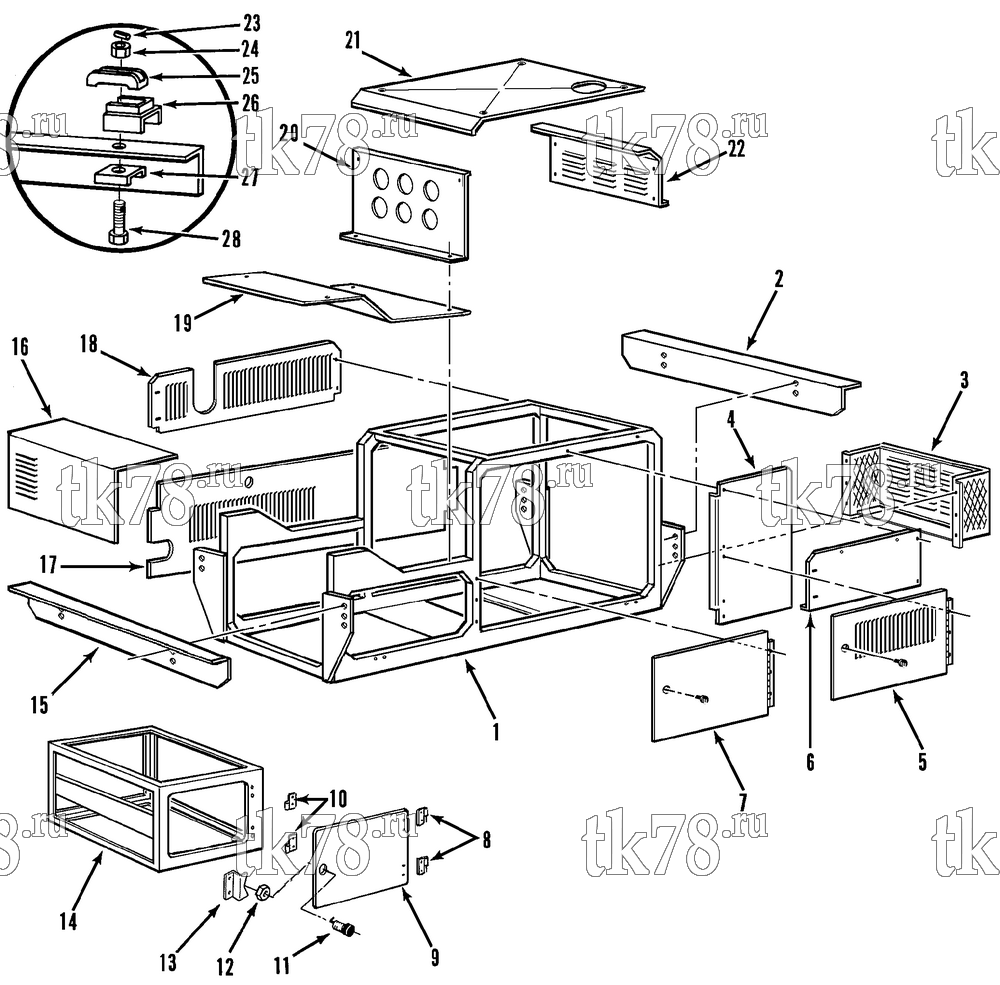

Установкa Thermo King CG-II M17, M17A & M17B схема STRUCTURAL COMPONENTS – 91A3
Обновление от: 12/9/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3750 | FRAME | 1 | |
| 2 | 98-3452 | ANGLE - unit (front) | 1 | |
| 55-2557 | SCREW - angle | 4 | ||
| 55-2173 | FLATWASHER | 4 | ||
| 55-4952 | NUT | 4 | ||
| 3 | 98-3474 | GRILLE - radiator | 1 | |
| 55-2995 | SCREW - grille | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-6554 | INSERT | 6 | ||
| 4 | 98-3751 | PANEL - right front | 1 | |
| 55-3021 | SCREW - panel | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-7422 | INSERT | 6 | ||
| 5 | 98-3361 | DOOR - front | 1 | |
| 55-2995 | SCREW - door | 3 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT | 3 | ||
| 99-6599 | LATCH - door | 1 | ||
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 1 | ||
| 6 | 98-3752 | PANEL - right upper | 1 | |
| 55-3021 | SCREW - panel | 5 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 7 | 98-3753 | DOOR - rear right | 1 | |
| 55-2995 | SCREW - door | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-6554 | INSERT | 3 | ||
| 99-6599 | LATCH - door | 1 | ||
|
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 1 | ||
| 8 | 99-7139 | HINGE (mounted on door w/ pin) | 1 | |
| 99-7138 | HINGE (mounted on door w/o pin) | 1 | ||
| 9 | 91-651 | DOOR - exciter housing | 1 | |
| 55-3098 | SCREW - door | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 8 | ||
| 10 | 99-7140 | HINGE - door (w/ pin, mounted on housing) | 1 | |
| 99-7137 | HINGE - door (w/o pin, mounted on housing) | 1 | ||
| 11 | 99-6599 | LATCH - door | 3 | |
|
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 12 | 99-665 | NUT - latch | 3 | |
| 13 | 99-9756 | BRACKET - latch | 3 | |
| 55-5646 | SCREW - bracket | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 14 | 98-3447 | HOUSING - battery/exciter | 1 | |
| 15 | 98-3453 | ANGLE - unit (rear) | 1 | |
| 55-2557 | SCREW - angle | 4 | ||
| 55-2173 | FLATWASHER | 4 | ||
| 55-5492 | NUT | 4 | ||
| 30-55-5492 | Регулировочный болт | 1 720 ₽ |
|
|
| 16 | 98-3446 | COVER - housing | 1 | |
| 55-1587 | SCREW - cover | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4415 | NUT - captive | 4 | ||
| 17 | 98-3366 | PANEL - right | 1 | |
| 55-3021 | SCREW - panel | 9 | ||
| 55-2086 | FLATWASHER | 9 | ||
| 55-1800 | LOCKWASHER | 9 | ||
| 55-7422 | INSERT | 9 | ||
| 33-1084 | GROMMET (1.0 id) | 1 | ||
| 18 | 98-3754 | PANEL - front left | 1 | |
| 55-3021 | SCREW - panel | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-7422 | INSERT | 6 | ||
| 19 | 98-3757 | PANEL - rear top | 1 | |
| 55-3021 | SCREW - panel | 4 | ||
| 55-4742 | WASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-7422 | INSERT | 4 | ||
| 20 | 98-3756 | PANEL - midframe top | 1 | |
| 55-4742 | WASHER | 2 | ||
| 55-3021 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-7422 | INSERT | 4 | ||
| 21 | 98-3758 | PANEL - front top | 1 | |
| 55-3021 | SCREW - panel | 6 | ||
| 55-4742 | WASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-7422 | INSERT | 6 | ||
| 22 | 98-3755 | PANEL - front | 1 | |
| 55-3021 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-7422 | INSERT | 4 | ||
| 23 | 55-6163 | PIN - spring (slotted) | 4 | |
| 24 | 55-4470 | NUT | 4 | |
| 25 | 92-3438 | CLIP - unit mounting | 4 | |
| 26 | 91-545 | BRACKET - clip | 4 | |
| 91-631 | SPACER - bracket | 4 | ||
| 27 | 91-632 | CHANNEL - unit mounting | 4 | |
| 28 | 55-7502 | BOLT - unit | 4 |
