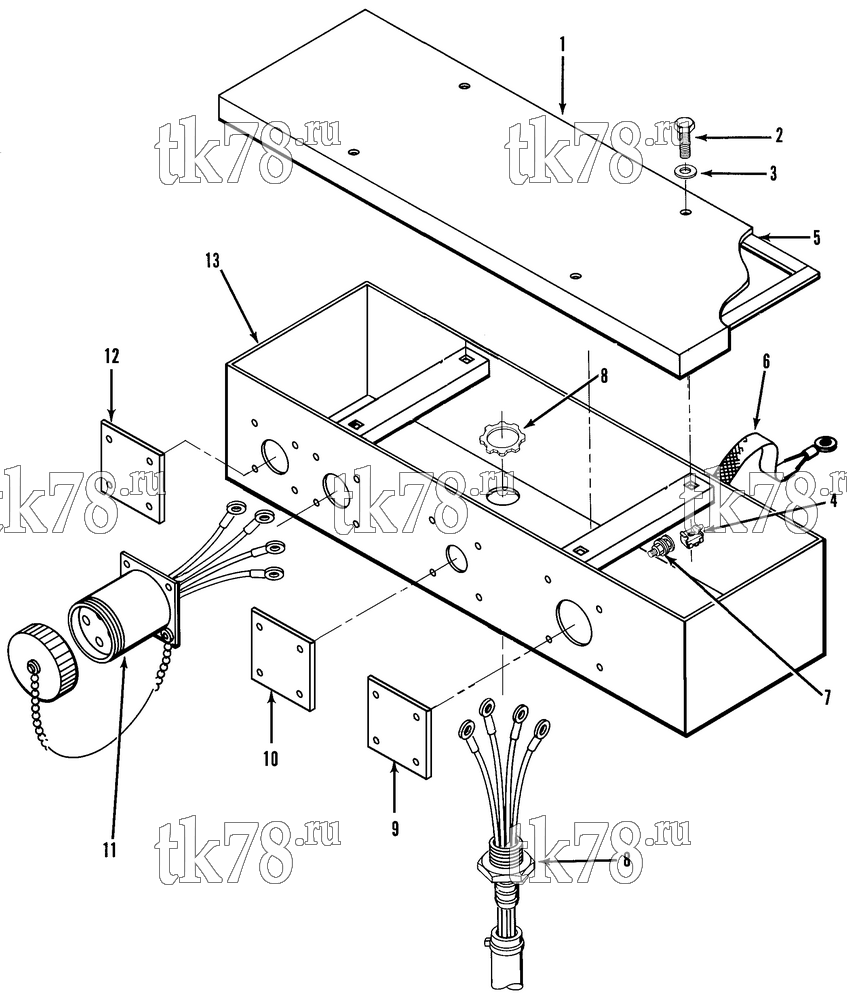

Установкa Thermo King CG-II M12B & M12C схема POWER RECEPTACLE GROUP – 91A13
Обновление от: 8/18/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-633 | COVER - switch box | 1 | |
| 2 | 55-2957 | SCREW - cover | 4 | |
| 3 | 55-3028 | WASHER - sealing | 4 | |
| 4 | 55-3059 | NUT - captive | 4 | |
| 5 | 99-8986 | STRIP - gasket (bulk) | A/R | |
| 6 | 44-4331 | STRAP - ground | 1 | |
| 7 | 55-3031 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-3496 | LOCKWASHER (internal/external) | 1 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2965 | NUT | 2 | ||
| 8 | 91-612 | FITTING - barb | 1 | |
| 55-5018 | LOCKNUT | 1 | ||
| 33-144 | O-RING - fitting | 1 | ||
| 9 | 91-1839 | PLATE - receptacle | 1 | |
| 55-3021 | SCREW | 4 | ||
| 55-3028 | WASHER - sealing | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 10 | 91-1840 | PLATE - receptacle | 1 | |
| 55-2995 | SCREW | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 11 | 44-7662 | RECEPTACLE (230V, 50 amp) | 1 | |
| 99-3407 | NAMEPLATE - Caution 230 Volts | 1 | ||
| 12 | 91-1838 | PLATE - receptacle | 1 | |
| 55-3021 | SCREW | 4 | ||
| 55-3028 | WASHER - sealing | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 13 | 91-634 | BOX - receptacle | 1 |
