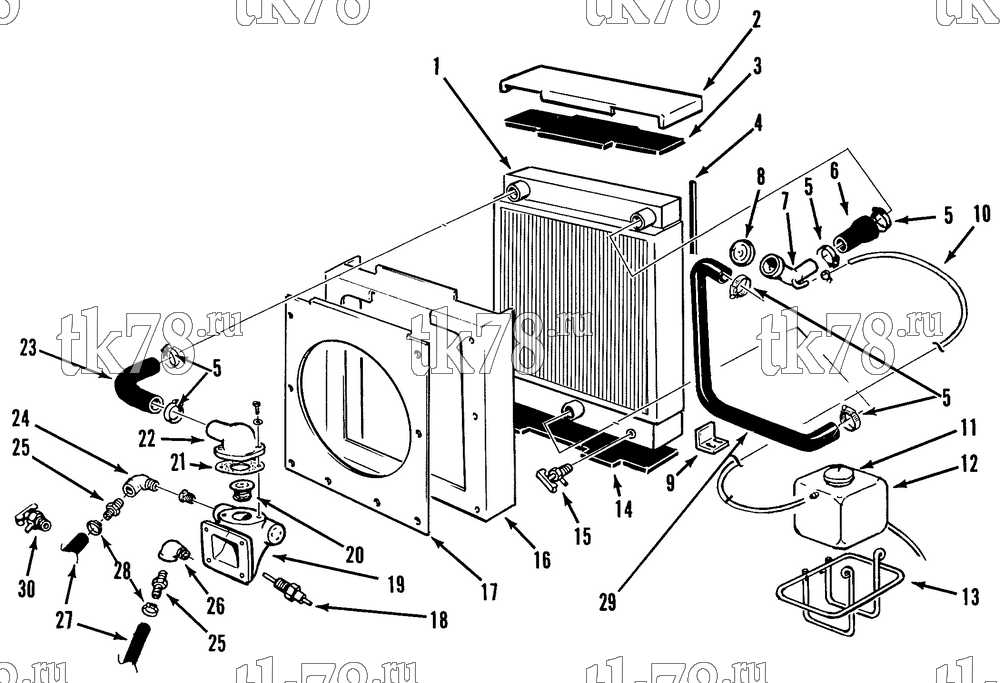

Установкa Thermo King CG-II M12 Prepared for Sea Container схема ENGINE COOLING SYSTEM – 84A5
Обновление от: 6/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-435 | RADIATOR | 1 | |
| 2 | 91-315 | BRACKET - radiator | 1 | |
| 55-2979 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT (hexstop) | 2 | ||
| 3 | 91-314 | PAD - radiator (top) | 1 | |
| 4 | 99-7246 | STRIP - sealing (bulk) | A/R | |
| 5 | 55-3402 | CLAMP - hose | 6 | |
| 6 | 11-6539 | HOSE - radiator fill | 1 | |
| 7 | 11-6478 | FILLER - radiator | 1 | |
| 11-4921 | NECK - filler | 1 | ||
| 8 | 11-5406 | CAP - radiator | 1 | |
|
10-11-5406 | Крышка радиатора | 2 200 ₽ |
|
| 9 | 91-317 | ANGLE - rad holddown | 1 | |
| 10 | 98-771 | HOSE - overflow (25 ft) | A/R | |
| 33-749 | GROMMET (1/2 id) | 1 | ||
| 55-2685 | CLAMP - hose | 3 | ||
| 11 | 99-8301 | CAP & CHAIN - overflow tank | 1 | |
| 99-3685 | CHAIN - cap | 1 | ||
| 55-2991 | SCREW - chain | 1 | ||
| 55-2965 | NUT (hex) | 1 | ||
| 55-4560 | NUT (hexstop) | 1 | ||
| 12 | 11-4607 | TANK - overflow | 1 | |
| 13 | 11-4693 | HANGER - overflow tank | 1 | |
| 55-1587 | SCREW - hanger | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT (hexstop) | 2 | ||
| 14 | 91-316 | PAD - radiator (bottom) | 1 | |
| 15 | 55-4957 | DRAIN COCK - radiator | 2 | |
| 16 | 98-3358 | SHROUD - radiator | 1 | |
| 55-3059 | NUT - captive | 8 | ||
| 17 | 98-3451 | ORIFICE - radiator | 1 | |
| 55-3018 | SCREW - orifice | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-3045 | WASHER - dome | 8 | ||
| 18 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 19 | 11-4058 | HOUSING - thermostat | 1 | |
| 20 | 11-2875 | THERMOSTAT - water | 1 | |
| 21 | 33-487 | GASKET - thermostat | 1 | |
|
10-33-487 | Прокладка термостата, Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 910 ₽ |
|
| 22 | 11-3154 | ELBOW - water outlet | 1 | |
| 55-5424 | SCREW - elbow | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 23 | 11-2278 | HOSE - radiator to engine | 1 | |
| 24 | 55-1519 | ELBOW | 1 | |
| 25 | 55-1592 | CONNECTOR - hose | 2 | |
| 26 | 55-4244 | ELBOW | 1 | |
| 27 | 12-383 | HOSE - fuel heater (bulk) | A/R | |
| 28 | 55-5074 | CLAMP - hose | 4 | |
| 29 | 11-6224 | HOSE - engine to radiator | 1 | |
| 30 | 55-5094 | DRAIN COCK - engine | 1 |
